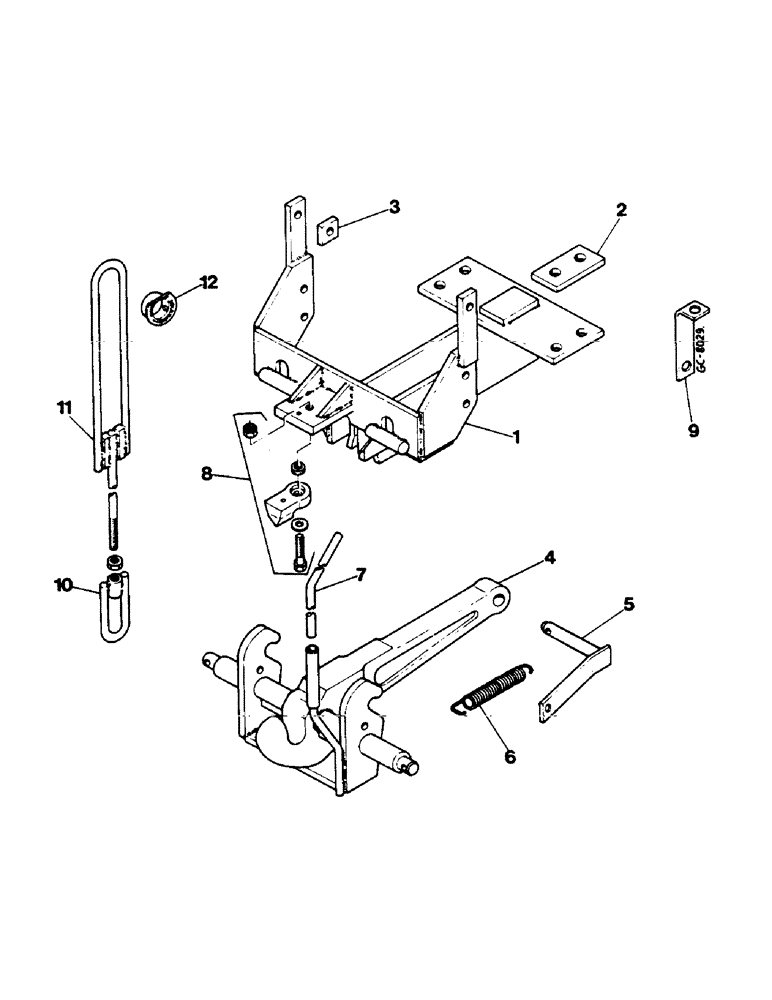

Запчасти Case IH 644 (2E23) - DRAW HOOK WITH LATCH LEVER LEMOINE FRENCH VERSION, P/N 3221488R92 (07) - HYDRAULICS

1

3221488R92

HOOK

draw, Includes: 1 - 12

1шт.

1

3221489R2

FUNNEL

FRAME draw

1шт.

2

3221490R2

BAR

PLATE

2шт.

3

3221491R2

BAR

SPACER

2шт.

24887R1

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 8

4шт.

326-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

4шт.

326-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

4шт.

86729275

LOCK WASHER,5/8 0.634 CST ZND

6шт.

4

3221493R2

HOOK

draw

1шт.

432-2440

COTTER PIN,3/8" x 2 1/2"

2шт.

5

3221494R2

AXLE PIN

1шт.

934868R1

COTTER PIN,M6.3 x 50

cotter, 6 x 50 mm

1шт.

6

3221495R2

SPRING

1шт.

7

3221496R2

ROD

LEVER

1шт.

932470R1

LOCK PIN,M6 x 20, Slotted

1шт.

8

3221475R91

LOCK ASSY

1шт.

932671R1

LOCK PIN,M6 x 30, Slotted

1шт.

9

3221487R2

SUPPORT ASSY.

ANGLE

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

413-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

92-11062

LOCK WASHER,5/8"

1шт.

425-108

NUT,1/2" - 13, Gr 5

1шт.

10

3221484R2

ROD

2шт.

11

3225026R1

ROD

lifting

2шт.

934026R1

NUT,M16 x 2, Cl 5

2шт.

12

3221486R2

BUSHING

2шт.

Q5348

LOCK PIN,10mm OD x 45mm L, Slotted

2шт.
