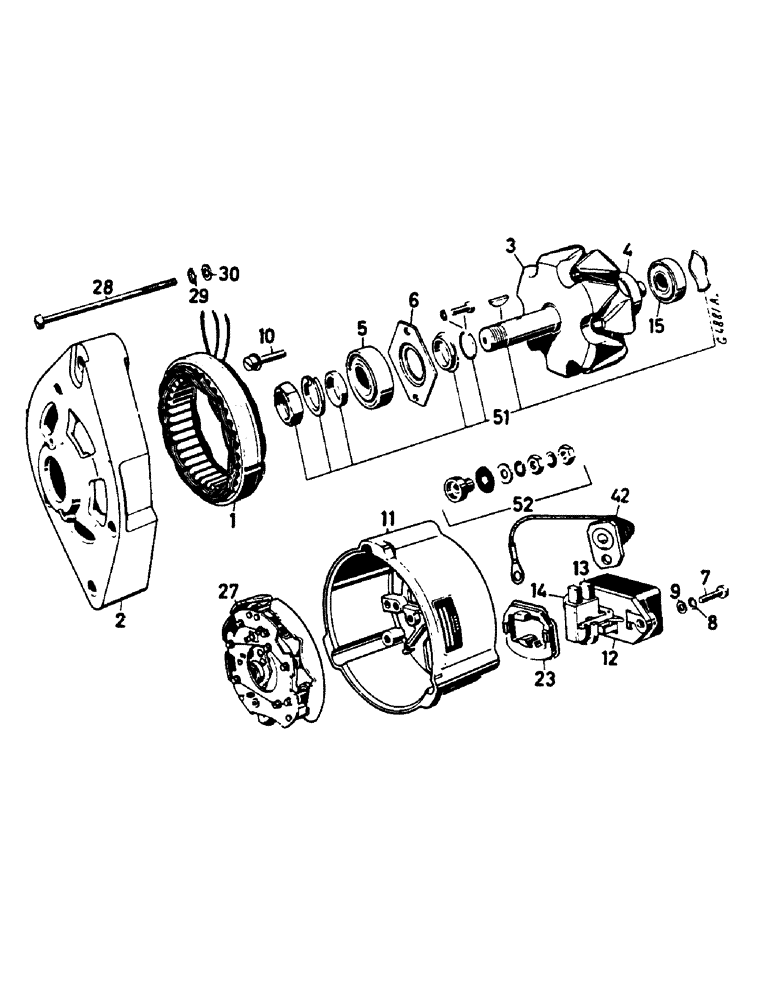

Запчасти Case IH 644 (2D05) - ALTERNATOR 28 AMP (06) - ELECTRICAL

1

3144924R91

ALTERNATOR

with regulator, (28 Amp.), Order: 3218239R91, Includes: 1 - 52

1шт.

1

ALTERNATOR without regulator, (28Amp.), Order: 3218239R91, Includes: 1 - 52

1шт.

1

3078581R1

STAND

STATOR, 3078581R1

1шт.

2

3078582R1

COVER

1шт.

3

3079035R2

ROTOR

Includes: 3 and 4

1шт.

4

3078583R1

ROTOR

Includes: 3 and 4

1шт.

5

3078585R91

BEARING, BALL

1шт.

6

3078587R1

PLATE

1шт.

7

3079379R1

SCREW,Slot Cheese Hd, M4 x .7 x 16, 5.8

BOLT

2шт.

8

933994R1

LOCK WASHER,M4

2шт.

9

3078617R1

GASKET

WASHER

2шт.

10

3078588R1

SCREW

BOLT with lock washer

3шт.

11

8003/00506

BEARING

HOUSING, 3078589R1

1шт.

12

3079037R92

REGULATOR

HOLDER brush and regulator, Includes: 12 - 14

1шт.

12

3078590R93

HOLDER

brush, Includes: 12 - 14

1шт.

13

3079038R92

BRUSH SET

1шт.

14

3209062R1

SPRING

2шт.

15

3078586R91

BEARING

SPARE PART ball

1шт.

23

8003/00511

PROTECTIVE COVER

GASKET

1шт.

23

3078593R1

GASKET

1шт.

27

3078957R92

PLATE

with diodes

1шт.

28

8003/00510

SCREW

BOLT

3шт.

29

933986R1

LOCK WASHER,M5

3шт.

30

887416R1

WASHER

3шт.

42

3079040R91

DIODE

(Zener)

1шт.

51

8003/00514

SET OF PARTS

rotor

1шт.

52

8003/00515

SET OF PARTS

connection, Terminal B

1шт.

52

8003/00516

SET OF PARTS

connection, Terminal D

1шт.
