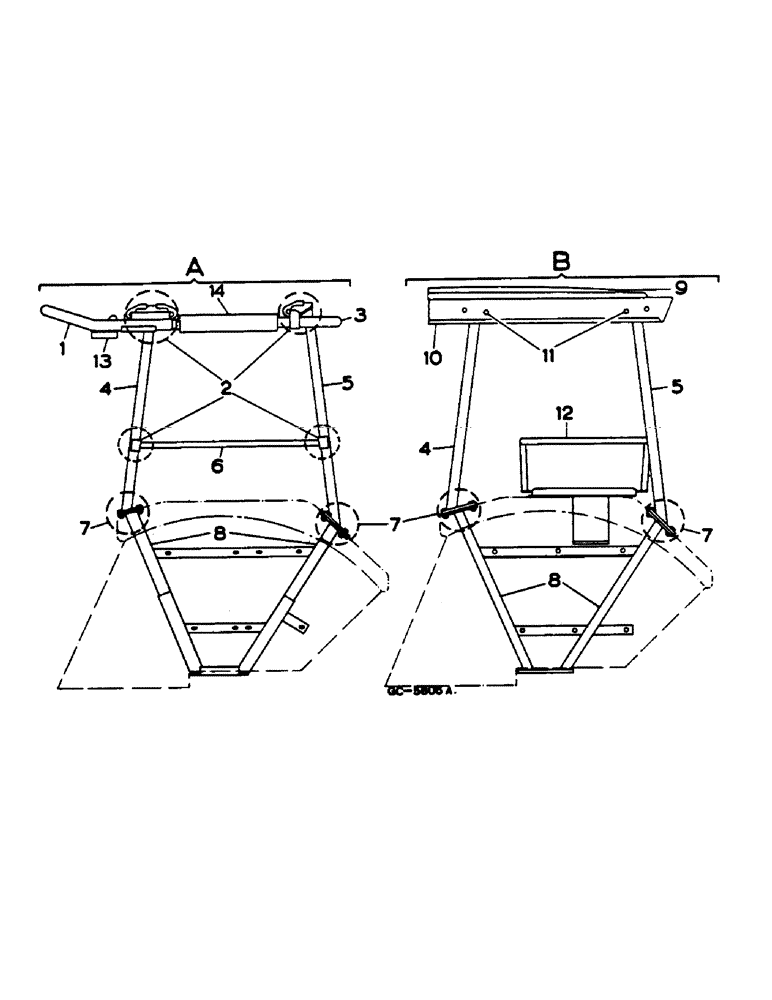

Запчасти Case IH 644 (3G19) - SAFETY FRAME (05) - SUPERSTRUCTURE

1

NSS

NOT SOLD SEPARAT

TUBE front, A frame

1шт.

Will be supplied by Georg Fritzmeier KG 8011 Grosshelfendorf uber Munchen 8 Western Germany

1шт.

2

3224803R1

CLAMP, A frame

2шт.

3224801R1

ANGLE

SPARE PART LH, A frame

1шт.

3224802R1

ANGLE

SPARE PART RH, A frame

1шт.

3224805R1

INSULATION, LH, A frame

3шт.

3224806R1

INSULATION, RH, A frame

3шт.

3224800R1

STRAP cable, A frame

8шт.

905286R1

SCREW,Hex, M6.3 x 1.8 x 19mm

A frame

2шт.

931312R1

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

A frame

2шт.

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

A frame

8шт.

3221581R1

SPRING WASHER

10 mm, A frame

2шт.

3221580R1

BELLEVILLE WASHER

lock, 12 mm, A frame

8шт.

100016

NUT,M10 x 1.5, Cl 8

A Frame

2шт.

933968R1

NUT,M12 x 1.25, Cl 6

A frame

6шт.

905304R1

PIN, GROOVED

SPARE PART grower, 10 x 50 mm, A frame

2шт.

905279R1

WASHER

A frame

2шт.

3

NSS

NOT SOLD SEPARAT

TUBE rear, A frame

1шт.

Will be supplied by Georg Fritzmeier KG 8011 Grosshelfendorf uber Munchen 8 Western Germany

1шт.

4

NSS

NOT SOLD SEPARAT

TUBE front

1шт.

Will be supplied by Georg Fritzmeier KG 8011 Grosshelfendorf uber Munchen 8 Western Germany

1шт.

5

NSS

NOT SOLD SEPARAT

TUBE rear

1шт.

Will be supplied by Georg Fritzmeier KG 8011 Grosshelfendorf uber Munchen 8 Western Germany

1шт.

6

NSS

NOT SOLD SEPARAT

FRAME passenger seat, A frame

1шт.

Will be supplied by Georg Fritzmeier KG 8011 Grosshelfendorf uber Munchen 8 Western Germany

1шт.

7

3221607R1

CAP

8шт.

931656R1

BOLT,Hex, M14 x 2 x 50mm, Cl 8.8

8шт.

933969R1

NUT,M14 x 1.5, Cl 6

8шт.

905406R1

WASHER,M14 x 22 x 3

3225093R1

16шт.

3223099R1

WASHER

1шт.

8

3147590R91

HOLDER

SPARE PART BRACKET reinforcement, LH

1шт.

8

3148684R1

SUPPORT

SPARE PART BRACKET, French version

1шт.

8

3217122R1

FUNNEL

FRAME BRACKET, French version

1шт.

8

3147591R91

BRACKET

SPARE PART reinforcement, RH

1шт.

8

3148685R1

SUPPORT

SPARE PART BRACKET, French version

1шт.

8

3217123R1

STIFFENER

BRACKET, French version

1шт.

711-10030

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 30mm, Cl 8.8

16шт.

931295R1

CARRIAGE BOLT,Sq Nk, M10 x 25mm, Cl 4.6

BOLT, M10 x 25 mm

12шт.

933965R1

LOCK WASHER,M10

32шт.

100016

NUT,M10 x 1.5, Cl 8

12шт.

25709R1

WASHER

10.5 x 21 x 2 mm

32шт.

126-114

WOODRUFF KEY,#7, 1/8" x 3/4", HT

WASHER, with square hole, 11.5 x 34 x 1.5 mm

12шт.

934050R1

WASHER,M11

SPARE PART with square hole, 11.5 x 34 x 3 mm

16шт.

3216420R1

SPACER

SPARE PART 1 mm

1шт.

3216421R1

SPACER

2 mm

1шт.

3216422R1

SPACER

SPARE PART 3 mm

1шт.

9

NSS

NOT SOLD SEPARAT

ROOF, B frame

1шт.

Will be supplied by Georg Fritzmeier KG 8011 Grosshelfendorf uber Munchen 8 Western Germany

1шт.

10

NSS

NOT SOLD SEPARAT

FRAME roof, B frame

1шт.

Will be supplied by Georg Fritzmeier KG 8011 Grosshelfendorf uber Munchen 8 Western Germany

1шт.

11

3223697R1

WASHER

SHEET sliding, B frame

4шт.

3221592R1

CAP

B frame

4шт.

3224123R1

CAP

B frame

6шт.

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

B frame

4шт.

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

B frame

8шт.

3221580R1

BELLEVILLE WASHER

lock, 12 mm, B frame

8шт.

933968R1

NUT,M12 x 1.25, Cl 6

B frame

6шт.

934673R1

WASHER,M8.4 x 25 x 2

B frame

4шт.

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

B frame

8шт.

12

NSS

NOT SOLD SEPARAT

FRAME passenger seat, B frame

1шт.

Will be supplied by Georg Fritzmeier KG 8011 Grosshelfendorf uber Munchen 8 Western Germany

1шт.

13

3142273R1

PROTECTOR

SPARE PART CAP, A frame

2шт.

14

3224804R1

INSULATOR

A frame

1шт.
