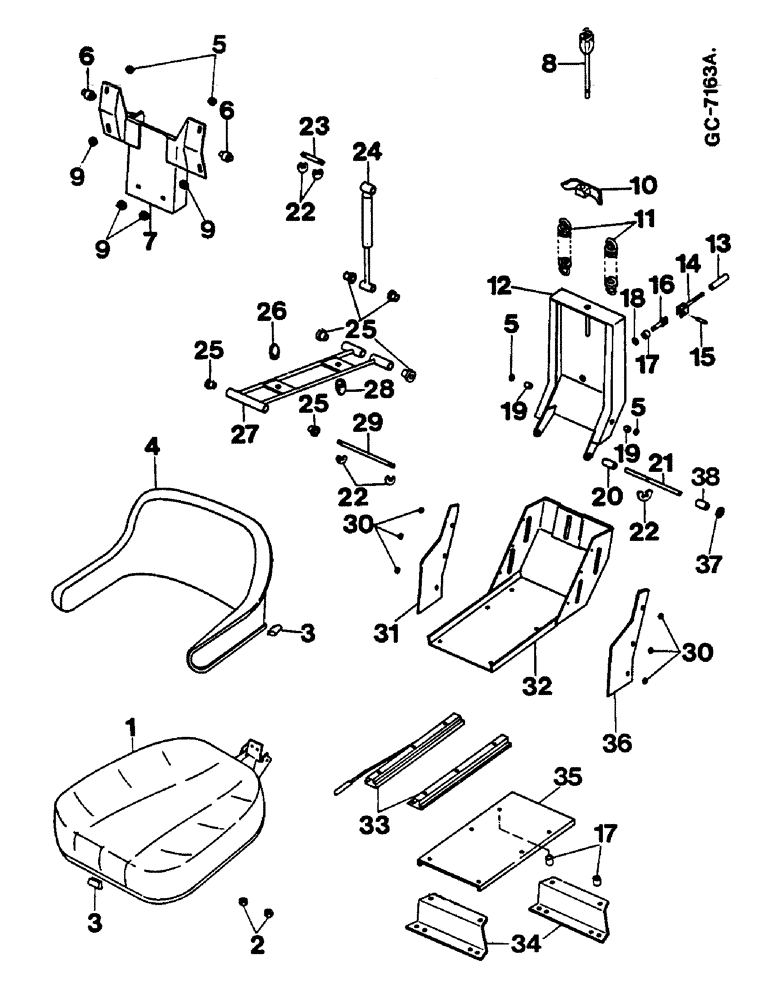

Запчасти Case IH 644 (3G12) - SEAT "GRAMMER" SUPER DE LUXE (05) - SUPERSTRUCTURE

3223620R92

SEAT

for units with cab 2000

1шт.

3223620R92

SEAT

1шт.

930404R1

BOLT,Hex, M10 x 20mm, Cl 4.6

BOLT, M10 x 20 mm

4шт.

933335R1

LOCK WASHER,M10

4шт.

1

3223474R1

SEAT

CUP

1шт.

934679R1

BOLT,Hex, M8 x 1.25 x 20mm, Cl 4.6

BOLT, M8 x 20 mm

2шт.

934899R1

LOCK WASHER,8.2mm ID x 14mm OD

2шт.

2

3223486R1

BUMPER

BUFFER

2шт.

3223480R1

RIVET

2шт.

3

827368C1

CLIP

16шт.

4

3223485R1

BACKREST

SPARE PART

1шт.

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

4шт.

5

934675R1

WASHER,M8 x 16 x 1.6

6шт.

6

3134833R1

ROLLER

2шт.

7

3223471R1

HOLDER

1шт.

8

3226969R91

SCREW

adjusting, with handle

1шт.

932954R1

COTTER PIN,M3.2 x 20

3 x 20 mm

1шт.

9

905424R1

WASHER,M10.5 x 25 x4

4шт.

10

3225386R1

RETAINER

BRACKET spring

1шт.

11

3217415R1

SPRING

2шт.

12

3223479R1

FRAME

SPARE PART

1шт.

934679R1

BOLT,Hex, M8 x 1.25 x 20mm, Cl 4.6

BOLT, M8 x 20 mm

2шт.

934899R1

LOCK WASHER,8.2mm ID x 14mm OD

2шт.

13

3223481R1

HANDLE

1шт.

14

3223482R1

FORK

1шт.

15

934903R1

GROOVED PIN,M5 x 28

1шт.

16

3223472R1

SCREW

SPARE PART BOLT

1шт.

934897R1

COTTER PIN,M4 x 20

4 x 20 mm

1шт.

17

3223473R1

SPACER

3шт.

18

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

1шт.

19

3217418R1

SPACER

SPARE PART BUSHING

2шт.

20

3223476R1

BUSHING

spacer, RH

1шт.

21

3223475R1

PIN

rocker, rear, Order also: 1 x 905174R1, 1 x 3 223476R1, 1 x 3 224508R1

1шт.

22

934901R1

E-RING,M10

WASHER retaining

5шт.

23

3217344R1

PIN

1шт.

24

3217346R1

SHOCK ABSORBER

1шт.

25

1 93 510733

BUSHING

6шт.

26

1-34-751-101

BUMPER

BUFFER rubber

1шт.

27

3223484R1

GUIDE

seat

1шт.

28

3223483R1

BUMPER

BUFFER rubber

1шт.

29

3217342R1

LARGE PIN

PIN, LARGE rocker, front

1шт.

30

934902R1

WASHER,M5.3 x 15 x 1.6

6шт.

31

3223469R1

PLATE

SPARE PART RH

1шт.

3223480R1

RIVET

3шт.

32

3223470R1

SEAT CARRIER

SPARE PART

1шт.

33

3223487R1

GUIDE

sliding, set of two

1шт.

934895R1

SCREW,Slotted Cheese, M8 x 16mm, Cl 8.8

BOLT, M8 x 16 mm

10шт.

934899R1

LOCK WASHER,8.2mm ID x 14mm OD

10шт.

43362

NUT,M8 x 1.25, Cl 10

10шт.

34

3223478R1

BRACKET

SUPPORT only for 3220311R91

2шт.

35

3223477R1

RAIL

PLATE only for 3220311R91

1шт.

934894R1

SCREW,M8 x 20mm, Cl 8.8

BOLT, M8 x 20 mm

4шт.

934904R1

BOLT,M8 x 30mm

BOLT, M8 x 30 mm

2шт.

934899R1

LOCK WASHER,8.2mm ID x 14mm OD

6шт.

43362

NUT,M8 x 1.25, Cl 10

6шт.

36

3224507R1

PLATE

SPARE PART LH

1шт.

3223480R1

RIVET

3шт.

37

905174R1

WASHER,M13

1шт.

38

3223483R1

BUMPER

BUSHING spacer, LH

1шт.
