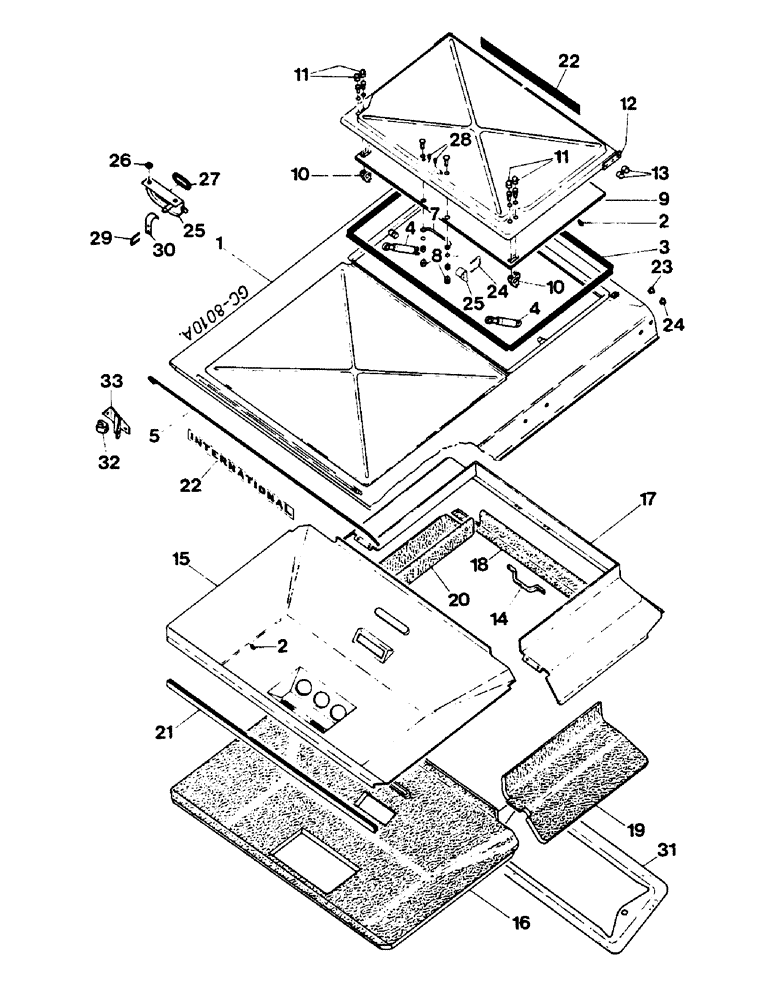

Запчасти Case IH 644 (3F01) - CAB, ROOF FRAME (-XXX) (05) - SUPERSTRUCTURE

1

3221570R1

FRAME

roof

1шт.

1

3221504R92

FRAME

roof, see Figure: 3E21

1шт.

1

3225113R91

FRAME roof, with: 2 - 6 and 3221577R1

1шт.

For Scandinavia

1шт.

3223697R1

WASHER

SHEET sliding

4шт.

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

4шт.

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

Lock

4шт.

2

3221575R1

GROMMET

2шт.

3

3221574R1

SEAL

SEAL bulk, 10 m

1шт.

4

3221572R1

GAS STRUT

CYLINDER pneumatic

2шт.

3221573R1

FASTENER

2шт.

932470R1

LOCK PIN,M6 x 20, Slotted

2шт.

5

3216370R1

PROTECTION STRIP

STRAP bulk, 10 m

1шт.

6

NSS

NOT SOLD SEPARAT

COVER

1шт.

6

3221571R91

HATCH

COVER with: 7 - 13 (beige)

1шт.

6

3225155R91

FLAP

COVER with: 9 - 13 and 25 - 28 (beige)

1шт.

For Scandinavia

1шт.

3221573R1

FASTENER

2шт.

905171R1

HEADED PIN,M8 x 14

headed

2шт.

7

3223826R1

HANDLE

SPARE PART

1шт.

905178R1

SCREW,Round Square Neck, M5 x 25mm, Class 4.6

BOLT, M5 x 25 mm

2шт.

933187R1

NUT,M5, Cl 8

2шт.

934044R1

WASHER,M5.3 ID x 10 OD x 1 Thk

2шт.

8

3223858R1

CAP

2шт.

9

NSS

NOT SOLD SEPARAT

COVERING, 560 x 890 mm (beige)

1шт.

9

3223827R1

COVERING, 560 x 890 mm black

1шт.

10

3223791R1

SUPPORT

2шт.

905265R1

NUT,M6 x 1, Cl 8

4шт.

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

11

3221725R1

CAP

4шт.

12

3224540R1

ROD

SPARE PART PLATE

2шт.

814-4016

BOLT,Hex, M4 x 0.7 x 16mm, Cl 8.8, Full Thd

4шт.

905179R1

NUT,M4 x .7, Cl 8

4шт.

905177R1

WASHER,M4.3 x 12 x 1

4шт.

13

3224298R1

CAP

SPARE PART

4шт.

14

3145327R1

HANDLE

1шт.

934966R1

SCREW,M6 x 20mm

BOLT, M6 x 20 mm

4шт.

15

3223930R91

INSULATOR

SPARE PART CEILING black, with: 16

1шт.

15

3225962R1

ROOF LINING

SPARE PART CEILING black, with: beige 16

1шт.

15

3225125R91

CEILING black, with: 16

1шт.

For Scandinavia

1шт.

15

3225374R1

CEILING black, with: beige 16

1шт.

For Scandinavia

1шт.

16

NSS

NOT SOLD SEPARAT

PADDING ceiling (beige)

1шт.

16

3223866R1

PAD

SPARE PART ceiling black

1шт.

17

3223879R1

ROOF LINING

SHEET covering

1шт.

3224433R1

SHEET

2шт.

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

6шт.

31126R1

SCREW,Cross Pan Hd, M6 x 20

6шт.

3223701R1

RIVET

3 x 10 mm

4шт.

17

3225915R91

ROOF LINING

COVERING roof frame, with: 17 - 20 (beige)

1шт.

17

3221518R91

COVER

roof frame, with: 17-20 black

1шт.

895-11003

WASHER,3.2mm ID x 7mm OD x 0.5mm Thk

(3.2 x 7 x 0.5 mm)

4шт.

18

3225918R1

PADDING

350 x 1195 mm (beige)

1шт.

18

3223880R1

PAD

350 x 1195 mm black

1шт.

19

3225916R1

PADDING

SPARE PART LH, 430 x 700 mm (beige)

1шт.

19

3223881R1

PAD

LH, 430 x 700 mm black

1шт.

20

3225917R1

PADDING

SPARE PART RH, 430 x 700 mm (beige)

1шт.

20

3223882R1

PAD

SPARE PART RH, 430 x 700 mm black

1шт.

21

3223746R1

SEAL

SEAL bulk, 50 m

1шт.

22

1091408R1

PRODUCT GRAPHIC

DECAL International

2шт.

23

3225157R1

CAP

1шт.

24

3225158R1

FASTENER

CAP

1шт.

For Scandinavia

1шт.

25

3221549R91

HANDLE

with: 27

1шт.

For Scandinavia

1шт.

905178R1

SCREW,Round Square Neck, M5 x 25mm, Class 4.6

BOLT, M5 x 25 mm

2шт.

933187R1

NUT,M5, Cl 8

2шт.

26

934902R1

WASHER,M5.3 x 15 x 1.6

2шт.

For Scandinavia

1шт.

27

3142137R1

PROTECTION STRIP

STRAP protection, bulk, 200 m

1шт.

For Scandinavia

1шт.

28

3225160R1

CYLINDER END CAP

2шт.

For Scandinavia

1шт.

29

3225120R1

BOLT

U

1шт.

For Scandinavia

1шт.

190003888450

NUT

M5

2шт.

934044R1

WASHER,M5.3 ID x 10 OD x 1 Thk

2шт.

30

3225121R1

BRACKET

SPARE PART

1шт.

For Scandinavia

1шт.

31

3225907R1

SHROUD

switch box

1шт.

3229312R1

SCREW,Cross Pan Hd, M6 x 12

2шт.

32

3221527R1

SPRING

retainer

2шт.

614-5016

BOLT,Hex, M5 x 0.8 x 16mm, Cl 8.8, Full Thd

2шт.

190003888450

NUT

M5

2шт.

33

3221529R1

BRACKET

RH

1шт.

33

3221528R1

BRACKET

LH

1шт.

931171R1

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

3221581R1

SPRING WASHER

10 mm

2шт.

43362

NUT,M8 x 1.25, Cl 10

2шт.

934675R1

WASHER,M8 x 16 x 1.6

2шт.
