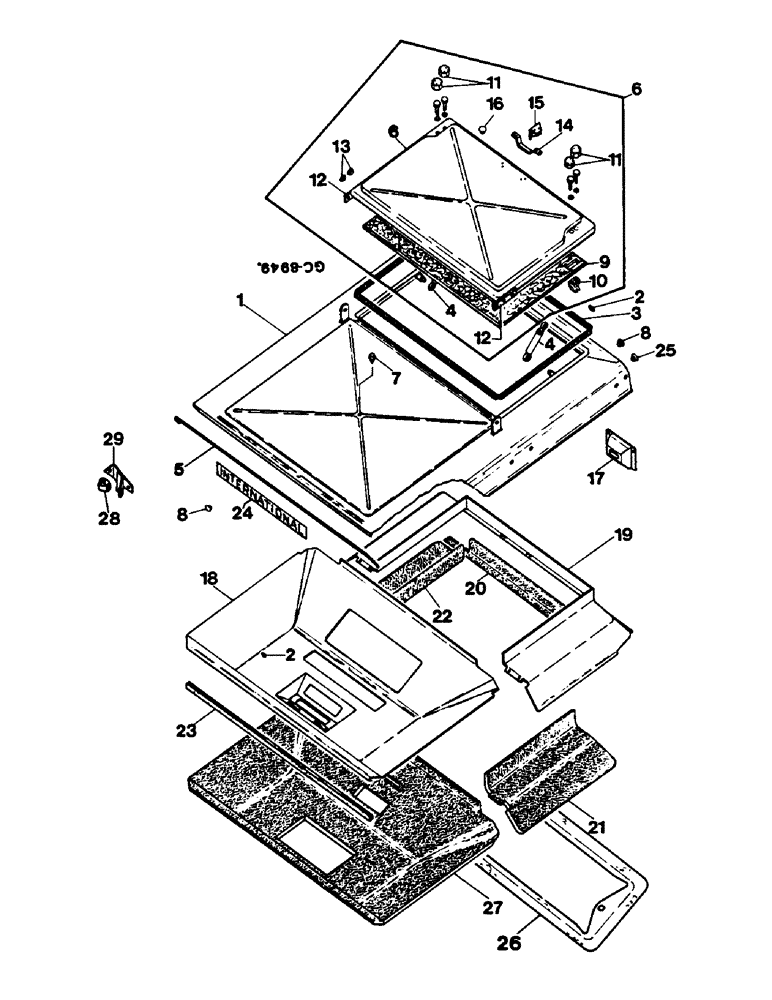

Запчасти Case IH 644 (3E21) - CAB, ROOF FRAME (XXX-) (05) - SUPERSTRUCTURE

1

3226071R1

FRAME roof

1шт.

1

3221504R92

FRAME

roof, with: 2 - 6 and 3221577R1

1шт.

1

3229451R91

FRAME roof, with: 2 - 8, 25 and 3221577R1

1шт.

For Scandinavia

1шт.

3223697R1

WASHER

SHEET sliding

4шт.

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

8шт.

3221581R1

SPRING WASHER

10 mm

2шт.

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

8шт.

2

3221575R1

GROMMET

2шт.

3

3221574R1

SEAL

SEAL, bulk, 10 m

1шт.

4

3221572R1

GAS STRUT

CYLINDER pneumatic

2шт.

3221573R1

FASTENER

2шт.

932470R1

LOCK PIN,M6 x 20, Slotted

2шт.

5

3216370R1

PROTECTION STRIP

STRAP protection, bulk 10 m

1шт.

6

3233635R1

HATCH

COVER

1шт.

6

3226072R91

COVER

9-16

1шт.

For Scandinavia

1шт.

3221573R1

FASTENER

2шт.

905171R1

HEADED PIN,M8 x 14

headed

2шт.

7

3226069R1

BUMPER

BUFFER, rubber

1шт.

8

3225157R1

CAP

2шт.

For Scandinavia

1шт.

9

NSS

NOT SOLD SEPARAT

COVERING, 560 x 890 mm

1шт.

10

3223791R1

SUPPORT

2шт.

905265R1

NUT,M6 x 1, Cl 8

4шт.

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

11

3221725R1

CAP

4шт.

12

3226073R1

PLATE

2шт.

814-4016

BOLT,Hex, M4 x 0.7 x 16mm, Cl 8.8, Full Thd

4шт.

905179R1

NUT,M4 x .7, Cl 8

4шт.

905177R1

WASHER,M4.3 x 12 x 1

4шт.

13

3224298R1

CAP

SPARE PART

4шт.

14

3145327R1

HANDLE

1шт.

905163R1

SCREW,Round Squre Neck, M5 x 30mm, Class 4.6

BOLT, M5 x 30 mm

2шт.

933187R1

NUT,M5, Cl 8

2шт.

934044R1

WASHER,M5.3 ID x 10 OD x 1 Thk

2шт.

15

3226084R1

LATCH, PEDALS

SPARE PART LOCK

1шт.

For Scandinavia

1шт.

905178R1

SCREW,Round Square Neck, M5 x 25mm, Class 4.6

BOLT, M5 x 25 mm

1шт.

933187R1

NUT,M5, Cl 8

1шт.

934044R1

WASHER,M5.3 ID x 10 OD x 1 Thk

1шт.

16

3225160R1

CYLINDER END CAP

1шт.

17

3226985R1

SHEET

SUPPORT

1шт.

For Scandinavia

1шт.

934941R1

SELF-TAP SCREW,Slotted Pan Hd, M4.8 x 19

2шт.

18

3225962R1

ROOF LINING

SPARE PART CEILING, with: padding 27

1шт.

18

3225374R1

CEILING, with padding: 27

1шт.

For Scandinavia

1шт.

19

3223879R1

ROOF LINING

SHEET covering

1шт.

3224433R1

SHEET

2шт.

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

6шт.

31126R1

SCREW,Cross Pan Hd, M6 x 20

6шт.

3223701R1

RIVET

3 x 10 mm

4шт.

19

3225915R91

ROOF LINING

COVERING frame, with: 19 - 22 (beige)

1шт.

20

3225918R1

PADDING

350 x 1195 mm (beige)

1шт.

21

3225916R1

PADDING

SPARE PART LH, 430 x 700 mm (beige)

1шт.

22

3225917R1

PADDING

SPARE PART RH, 430 x 700 mm (beige)

1шт.

23

3223746R1

SEAL

SEAL, bulk, 50 m

1шт.

24

1091408R1

PRODUCT GRAPHIC

DECAL International

2шт.

25

3225158R1

FASTENER

CAP

1шт.

For Scandinavia

1шт.

26

3225907R1

SHROUD

switch box

1шт.

3229312R1

SCREW,Cross Pan Hd, M6 x 12

2шт.

27

NSS

NOT SOLD SEPARAT

PADDING ceiling (beige)

1шт.

28

3221527R1

SPRING

retainer

2шт.

614-5016

BOLT,Hex, M5 x 0.8 x 16mm, Cl 8.8, Full Thd

2шт.

190003888450

NUT

M5

2шт.

29

3221529R1

BRACKET

RH

1шт.

29

3221528R1

BRACKET

LH

1шт.

931171R1

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

3221581R1

SPRING WASHER

10 mm

2шт.

43362

NUT,M8 x 1.25, Cl 10

2шт.

934675R1

WASHER,M8 x 16 x 1.6

2шт.
