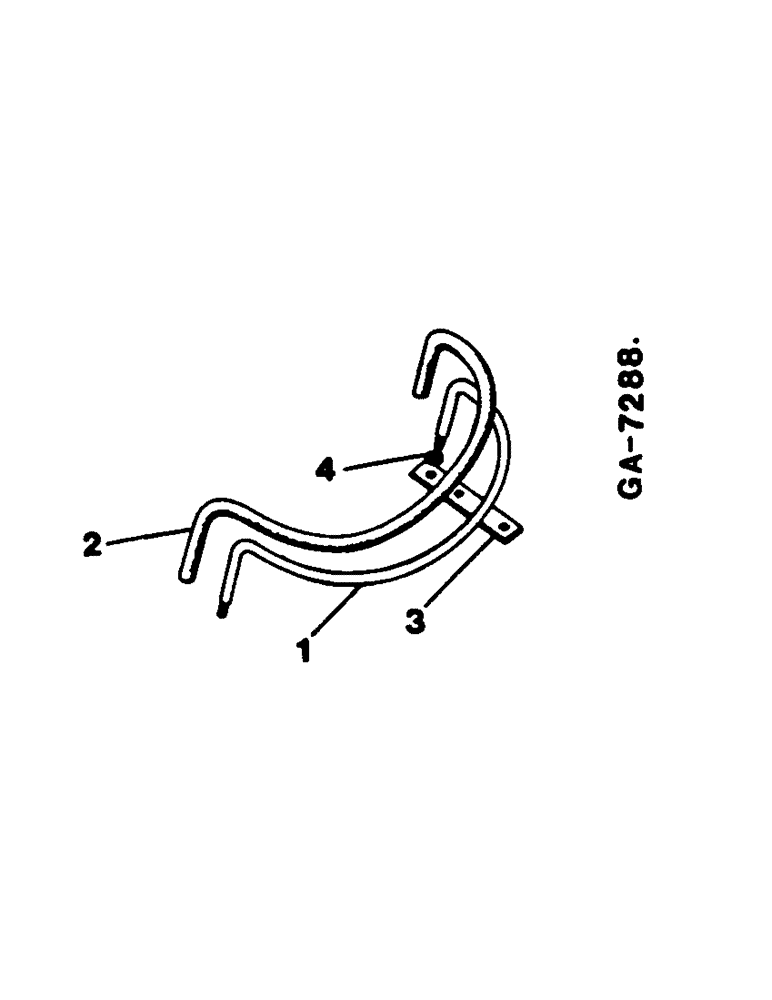

Запчасти Case IH 644 (3D08) - PASSENGER SEAT (05) - SUPERSTRUCTURE

1

716537R1

FRAME

seat, for crown type fenders

1шт.

425-108

NUT,1/2" - 13, Gr 5

2шт.

2

716539R1

HOSE

PIPE rubber

1шт.

3

716538R1

PLATE

reinforcement

2шт.

12-514

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 7/8", Gr 2, Full Thd

1шт.

492-11031

LOCK WASHER,5/16"

1шт.

425-105

NUT,5/16"-18, G5

1шт.

4

27927DA

WASHER

2шт.
