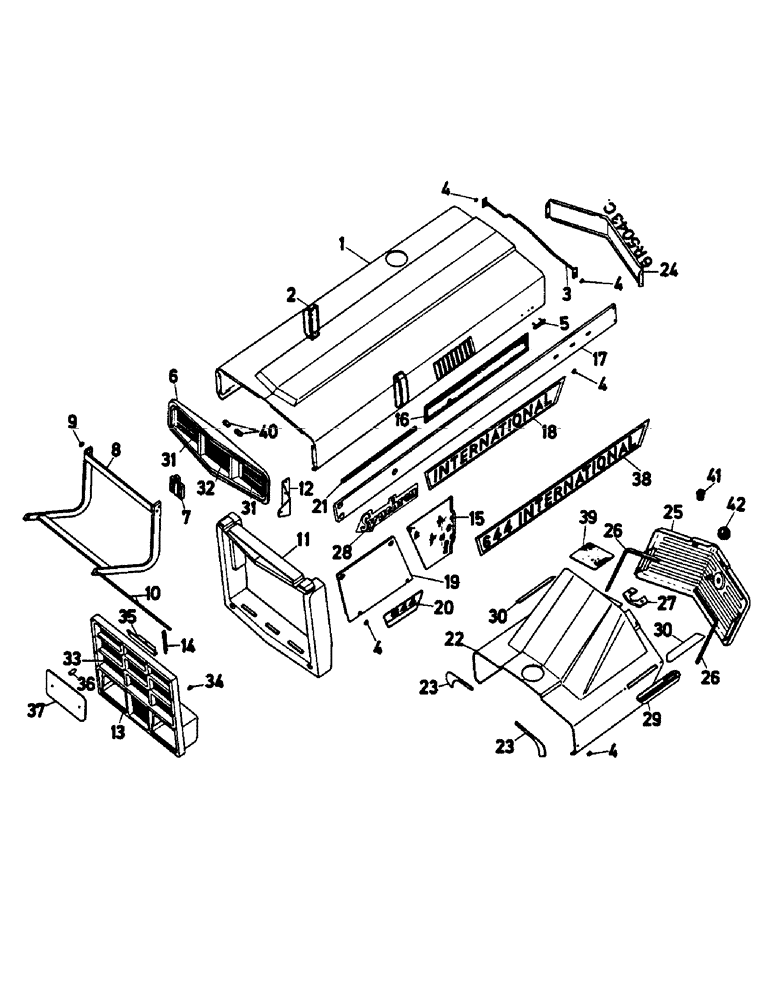

Запчасти Case IH 644 (3D02) - ENGINE HOOD, RADIATOR GRILLE (05) - SUPERSTRUCTURE

1

3140090R22

HOOD ASSY.

engine

1шт.

1

3226302R92

HOOD

engine, Swedish version

1шт.

4

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

22шт.

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.

1

3225003R92

HOOD ASSY.

engine, used with: 3224882R91

1шт.

2

3216841R1

STRIP-GASKET

plastic

2шт.

3

3147870R91

SUPPORT

U-BRACKET, for hood lock

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

425-105

NUT,5/16"-18, G5

2шт.

5

3141000R1

HANDLE

(-xxx)

2шт.

30264R1

LOCK WASHER,M5

4шт.

933187R1

NUT,M5, Cl 8

4шт.

6

3402639R91

GRILLE ASSY

upper, with: 31 - 32 and 40

1шт.

931340R1

SCREW,Slotted Cheese, M5 x 0.8 x 12mm, Cl 4.8

BOLT, M5 x 12 mm

8шт.

934871R1

NUT,M5, Cl 5

8шт.

934044R1

WASHER,M5.3 ID x 10 OD x 1 Thk

8шт.

7

120397C1

EMBLEM CASE/IH

2751846R1

1шт.

931373R1

SELF-TAP SCREW,Slotted Pan Hd, M4.8 x 9.5

2шт.

8

3140719R12

BRACKET

hinge

1шт.

326-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

4шт.

392-11038

LOCK WASHER,3/8"

4шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

9

495-81136

WASHER,10.31mm ID x 25.4mm OD x 3.81mm Thk

1шт.

10

3140721R1

ROD

hinge

1шт.

11

3145687R2

FRAME

1шт.

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

2шт.

25711R1

WASHER

lock, 5/8"

2шт.

12

3140728R11

BRACKET

angle, LH

1шт.

12

3140729R11

BRACKET

angle, RH

1шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

492-11038

LOCK WASHER,3/8"

3шт.

95-11041

WASHER,3/8"

1шт.

13

3141785R92

GRILLE ASSY

with: 33 and 35

1шт.

14

716294R1

SPRING

1шт.

15

3145667R1

GRATE

LH

1шт.

15

3145668R1

GRATE

RH

1шт.

16

3224360R1

STRIP

(asbestos)

1шт.

17

3145693R1

PANEL, SIDE

LH, 644/744

1шт.

17

3145691R1

PANEL, SIDE

LH, 844/844S

1шт.

17

3145694R1

PANEL, SIDE

RH, 644/744

1шт.

17

3145692R1

PANEL, SIDE

SPARE PART LH, 844/844S

1шт.

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

6шт.

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

6шт.

18

1090716R1

DECAL

PLATE International

2шт.

19

3145688R1

SIDE PLATE

PANEL, LH

1шт.

19

3145689R1

SIDE PLATE

PANEL, RH

1шт.

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

8шт.

20

1090913R1

DECAL

644

2шт.

20

1090914R1

DECAL

744

2шт.

20

1090915R1

DECAL

844

2шт.

21

3225843R1

RUBBER STRIP

2шт.

22

3145699R91

HOOD

SHEET, fuel tank, 644/744

1шт.

22

3221766R91

PROTECTION PLATE

SHEET, fuel tank, 644/744

1шт.

On units with cab 2000

1шт.

22

3145696R91

HOOD

SHEET, fuel tank, 844/844S

1шт.

22

3225516R91

COWL

SHEET, fuel tank, 844/844S

1шт.

On units with cab 2000

1шт.

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

4шт.

711793R1

GROMMET

1шт.

3148524R1

SEALING STRIP

STRIP protection, length 210 mm

1шт.

23

3145701R1

SUPPORT

hood

2шт.

24

3145981R91

PANEL

not for cab 2000

1шт.

413-818

BOLT,Hex, 1/2" - 13 x 1-1/8", Gr 5

2шт.

95-81011

WASHER,17/32" x 1" x .120"

2шт.

25

3145702R92

PANEL

1шт.

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

10шт.

495-31025

WASHER,3/16"

10шт.

26

3145707R1

STRIP

rubber

2шт.

27

3146378R1

SUPPORT

1шт.

425-104

NUT,1/4"-20, Cl 5

2шт.

495-31025

WASHER,3/16"

4шт.

28

1091353R1

DECAL "Synchron"

2шт.

29

3145759R1

GUIDE

pto lever

1шт.

931601R1

SELF-TAP SCREW,Slotted Oval Hd, M5.5 x 25

2шт.

30

3145708R1

COVER

2шт.

31

3141922R1

GRILLE

2шт.

32

3141923R1

GRILLE

1шт.

33

3141780R1

GRILLE

1шт.

931519R1

SELF-TAP SCREW,Hex Hd, M6.3 x 25

2шт.

34

3141783R1

PIN

1шт.

35

3141776R1

BRACKET

1шт.

36

905284R1

LOCK PIN,M10 x 30, Slotted

SLEEVE spacer, 3146235R1

2шт.

37

3146234R2

SUPPORT

for number plate

1шт.

931374R1

SELF-TAP SCREW,Pan Hd, M6.3 x 45

2шт.

38

1091215R1

PRODUCT GRAPHIC

DECAL, LH, International, 644

1шт.

38

1091217R1

PRODUCT GRAPHIC

DECAL, LH, International, 744

1шт.

38

1091219R1

PRODUCT GRAPHIC

DECAL, LH, International, 844

1шт.

38

1091221R1

PRODUCT GRAPHIC

DECAL, LH, International, 844S

1шт.

38

1091223R1

PRODUCT GRAPHIC

DECAL, LH, International, 844SB, French version

1шт.

38

1091216R1

PRODUCT GRAPHIC

DECAL, RH, International, 644

1шт.

38

1091218R1

PRODUCT GRAPHIC

DECAL, RH, International, 744

1шт.

38

1091220R1

PRODUCT GRAPHIC

DECAL, RH, International, 844

1шт.

38

1091222R1

PRODUCT GRAPHIC

DECAL, RH, International, 844S

1шт.

38

1091224R1

PRODUCT GRAPHIC

DECAL, RH, International, 844SB

1шт.

39

3217504R1

SEALING STRIP

PLATE rubber

1шт.

40

3217816R1

CAP

4шт.

41

716494R1

PLUG

1шт.

42

757314R1

CLAMP

GROMMET

1шт.
