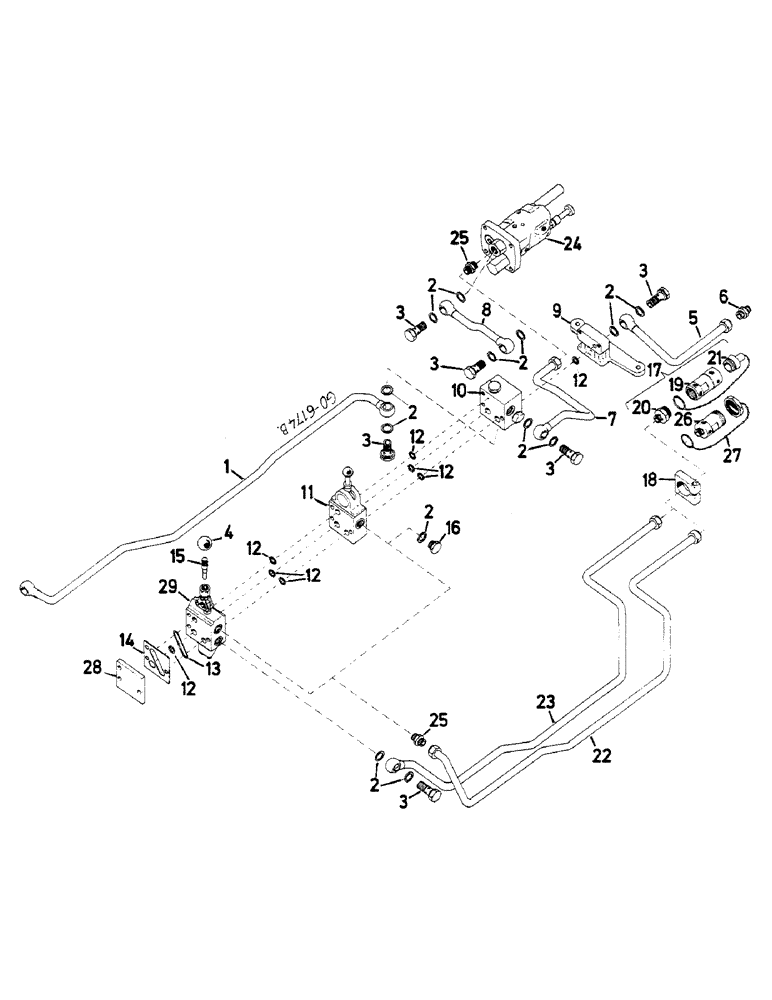

Запчасти Case IH 633 (10-50) - CONTROL VALVES, OIL LINES, BREAK AWAY COUPLING - 433/533/633 (-XXX) (07) - HYDRAULICS

1

3217204R1

PRESSURE PIPE

SPARE PART OIL FILTER - MOUNTING BLOCK

1шт.

2

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

1шт.

3

930259R1

BANJO BOLT,M18 x 1 x 42mm

HOLLOW

1шт.

4

3142351R1

BALL KNOB,32 MM x M10

BALL, LEVER

1шт.

5

3217206R1

SUCTION PIPE

RETURN

1шт.

6

3217765R1

UNION

ADAPTER

1шт.

7

3217205R1

PRESSURE PIPE

SPARE PART MOUNTING BLOCK - CONTROL VALVE

1шт.

8

3404291R1

PIPE

CONNECTING

1шт.

9

3217203R1

SUPPORT

SPARE PART

1шт.

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

2шт.

179822

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

BOLT, 5/16" X 29 MM

2шт.

10

NSS

NOT SOLD SEPARAT

BLOCK, MOUNTING, - SEE MOUNTING BLOCK

1шт.

11

NSS

NOT SOLD SEPARAT

VALVE, CONTROL, ADDITIONAL, SINGLE ACTING -SEE CONTROL VALVE, SINGLE ACTING

1шт.

12

3225027R91

GASKET KIT

O-RING, SET OF 3

1шт.

13

3054999R1

O-RING

1шт.

14

3134814R1

PLATE

INTERMEDIATE

2шт.

15

3217472R1

LEVER

SPARE PART

1шт.

16

933223R1

PLUG,Hex, M18 x 1.5

1шт.

17

3058147R91

COUPLING, BREAK AWAY

WITH: 19 - 21

1шт.

3138441R1

O-RING

1шт.

3138442R1

RING

BACK-UP

1шт.

18

786929R2

BRACKET

BREAK AWAY COUPLING

1шт.

179850

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

BOLT, 3/8" X 44 MM

1шт.

186288

BOLT,Hex, 3/8" - 16 x 4 1/2", Gr 5

1шт.

103321

LOCK WASHER,3/8"

1шт.

50793H

WASHER

10 X 22 X 2 MM

1шт.

19

3059126R1

COUPLING, BREAK AWAY

1шт.

20

3059127R1

UNION

ADAPTER

1шт.

21

3059128R1

CAP

DUST

1шт.

22

3217209R1

PRESSURE PIPE

SPARE PART

1шт.

23

3217210R1

PRESSURE PIPE

SPARE PART

1шт.

24

NSS

NOT SOLD SEPARAT

VALVE, CONTROL, - SEE DRAFT CONTROL VALVE

1шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

4шт.

103320

LOCK WASHER,5/16"

4шт.

25

3058415R1

UNION

ADAPTER

1шт.

26

3141597R91

COUPLING

SELF SEALING - WITH: 27

1шт.

26

3141598R91

COUPLING

SELF SEALING - WITH: 27, OPTIONAL

1шт.

27

3134962R1

PLUG

CAP

1шт.

28

3134815R1

PLATE

COVER

1шт.

930980R1

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

1шт.

930805R1

BOLT,Hex, M8 x 1.25 x 110mm, Cl 8.8

2шт.

931509R1

BOLT,Hex, M8 x 1.25 x 140mm, Cl 10.9

1шт.

930808R1

BOLT,Hex, M8 x 1.25 x 180mm, Cl 8.8

1шт.

931510R1

BOLT,Hex, M8 x 1.25 x 190mm, Cl 10.9

2шт.

931511R1

BOLT,Hex, M8 x 1.25 x 230mm, Cl 10.9

2шт.

103320

LOCK WASHER,5/16"

3шт.

29

NSS

NOT SOLD SEPARAT

VALVE, CONTROL, ADDITIONAL, DOUBLE ACTING - SEE DOUBLE ACTING CONTROL VALVES BOSCH

1шт.
