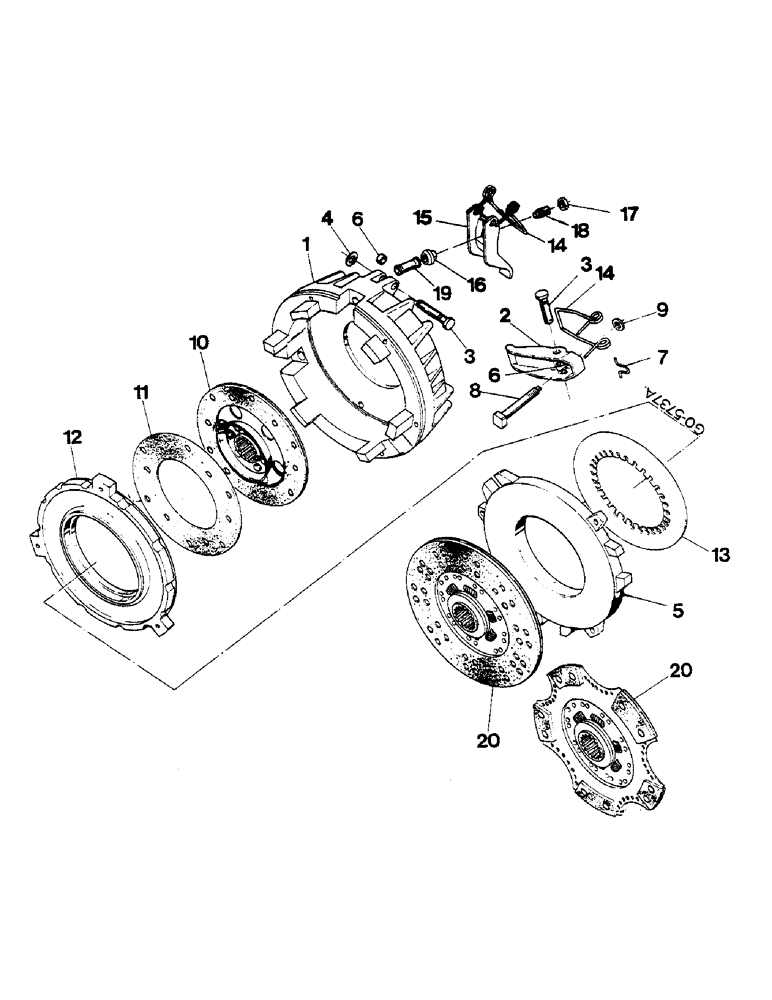

Запчасти Case IH 633 (07-08) - DOUBLE CLUTCH "FICHTEL AND SACHS" - 633 : (-289009) E (04) - Drive Train

3148949R92

CLUTCH

CLUTCH, MECHANISM CPTE, CONSISTS OF: ITEMS 1- 19

1шт.

21237R1

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 8

6шт.

103320

LOCK WASHER,5/16"

6шт.

1

3148950R1

SPARE PART

1шт.

2

3148954R1

LEVER

RELEASE

3шт.

3

3141165R1

LARGE PIN

PIN, LARGE Headed

6шт.

932769R1

SPRING,M2 x 18

2 X 18 MM

6шт.

4

3141170R1

WASHER

6шт.

5

3148951R1

SPARE PART PRESSURE

1шт.

6

3216738R1

BUSHING

12шт.

7

3141176R1

CINTRE

BOW CLIP MOUNTING

3шт.

8

3148955R1

SCREW

BOLT

3шт.

934367R1

NUT

M8

6шт.

9

3148956R1

WASHER

3шт.

10

3148962R91

SPARE PART CLUTCH, WITH LININGS

1шт.

3141180R1

RIVET

12шт.

11

3148963R1

SPARE PART

2шт.

12

3148952R1

SPARE PART PRESSURE, WITH THRUST PIN

1шт.

13

3148953R1

SPARE PART BELLEVILLE

1шт.

14

3141172R1

SPRING

RETAINER

6шт.

3148958R91

LEVER ASSY.

RELEASE CPTE, CONSISTS OF: ITEMS 15 - 18

3шт.

15

3148959R1

SPARE PART RELEASE

3шт.

16

3148960R1

BUSHING

THREAD

3шт.

17

3230328R1

THIN NUT,Thin, M10 x 1, Cl 04

special

3шт.

18

3224426R1

SET SCREW

SPECIAL

3шт.

19

3141961R1

PIN

THRUST

3шт.

20

3148964R1

PLOW DISC

CLUTCH

1шт.
