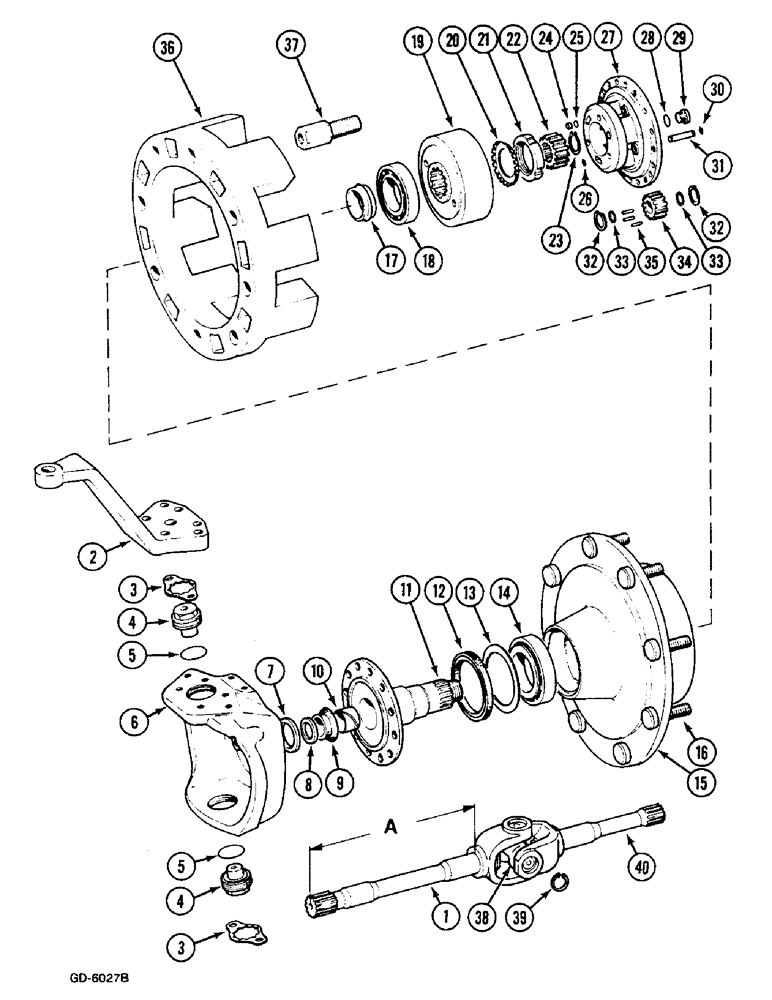

Запчасти Case IH 633 (6-430) - FRONT AXLE (APL-1251) (06) - POWER TRAIN

1

3216600R91

SHAFT

A-352 mm, left, for models 533, 633, 733, 833

1шт.

1

3216602R91

SHAFT

A-786 mm, right, for models 533, 633, 733, 833

1шт.

1

89522C1

LONG SHAFT

A-352 mm, left, for models 533, 633, 733, 833

1шт.

Double Joint Shaft

1шт.

1

89525C1

LONG SHAFT

A-786 mm, right, for models 533, 633, 733, 833

1шт.

Double Joint Shaft

1шт.

2

3216557R1

LEVER

for models 533, 633

1шт.

Mechanical Steering

1шт.

934653R1

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9

for models 533, 633

6шт.

2

3221939R1

LEVER

ARM, for models 533, 633, 733, 833

1шт.

Power Steering

1шт.

3404789R1

SCREW

for models 533, 633, 733, 833

6шт.

3

3216589R1

PLATE, LOCKING

for models 533, 633, 733, 833

4шт.

930107R1

BOLT,Hex, M6 x 1 x 10mm, Cl 8.8, Full Thd

for models 533, 633, 733, 833

8шт.

4

3216588R1

LARGE PIN

PIN, LARGE for models 533, 633, 733, 833

4шт.

712992R91

LUBE NIPPLE

LUBRICATOR, M8, for models 533, 633, 733, 833

4шт.

5

3147244R1

O-RING

for models 533, 633, 733, 833

4шт.

6

3216587R1

HOUSING

left, for models 533, 633

1шт.

Mechanical Steering

1шт.

6

3216586R1

HOUSING

right, for models 533, 633

1шт.

Mechanical Steering

1шт.

6

3229803R1

HOUSING

right, for models 533, 633, 733

1шт.

Power Steering

1шт.

6

3229802R1

HOUSING

left, for models 533, 633, 733

1шт.

Power Steering

1шт.

3134225R1

BOLT

M12 x 40 mm, for models 533, 633, 733, 833

4шт.

934652R1

THIN NUT,Thin, M12 x 1.5, Cl 05

for models 533, 633, 733, 833

4шт.

7

3226008R1

HOLDER

RETAINER, for models 533, 633, 733, 833

4шт.

8

3226009R1

SEALING RING

for models 533, 633, 733, 833

4шт.

9

3226006R1

OIL SEAL

for models 533, 633, 733, 833

4шт.

9

3405555R1

SEAL

for models 533, 633

4шт.

With Self Locking Differential

1шт.

10

3216585R1

BUSHING,28mm ID x 32mm OD x 30mm L

for models 533, 633, 733, 833

2шт.

3226042R91

HUB

CARRIER, consists of Ref. 11, 21, for models 533, 633, 733, 833

2шт.

934654R1

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

for models 533, 633, 733, 833

24шт.

11

3216590R2

HUB

SHAFT, for models 733, 833

2шт.

12

3216594R1

OIL SEAL

for models 533, 633, 733, 833

2шт.

13

3216593R1

WASHER

WASHER, for models 533, 633, 733, 833

2шт.

14

3216619R91

TAPERED BEARING,55mm ID x 26mm W

for models 533, 633, 733, 833

2шт.

14

625743C1

BEARING CUP,90mm OD x 18.5mm W

cup, 3-35/64 OD, for models 533, 633, 733, 833

2шт.

15

3216598R1

HUB

for models 533, 633, 733, 833

2шт.

16

3230876R1

BOLT,Wheel, Serr, M18 x 1.5 x 61 mm

for models 533, 633, 733, 833

16шт.

3230877R1

WHEEL NUT,Wheel, Flg, M18 x 1.5

for models 533, 633, 733, 833

16шт.

3230348R1

WASHER

for models 533, 633, 733, 833

16шт.

16

3216558R1

BOLT

for models 733, 833

16шт.

With Self Locking Differential

1шт.

933800R1

NUT

for models 733, 833

16шт.

712824R1

LOCK WASHER,M18.5, Spring

for models 733, 833

16шт.

17

3216592R1

SPACER,49mm ID x 52mm OD x 13.2mm L

for models 533, 633, 733, 833

2шт.

18

3143564R91

BEARING, CONE

for models 533, 633, 733, 833

2шт.

18

3216620R1

BEARING, CUP

cup, for models 533, 633, 733, 833

2шт.

19

3216583R1

GEAR

RING, for models 533, 633, 733, 833

2шт.

20

3216591R1

PLATE, LOCKING

RING, for models 533, 633, 733, 833

2шт.

21

934655R1

BEARING LOCK NUT,Bearing, M40 x 1.5, 8.8

for models 533, 633, 733, 833

1шт.

22

3216582R1

GEAR

for models 533, 633, 733, 833

2шт.

23

933074R1

SNAP RING,M28, Ext

retaining, for models 533, 633, 733, 833

2шт.

24

3147578R1

PLUG, for models 533, 633, 733, 833

1шт.

Axle Serial No.: - 8169

1шт.

24

3147209R2

PLUG

for models 533, 633, 733, 833

1шт.

Axle Serial No.: 8170 -

1шт.

25

3216581R1

WASHER

SHIM, 0.30 mm, for models 533, 633, 733, 833

1шт.

Axle Serial No.: - 8169

1шт.

25

3147212R1

WASHER

SHIM, 0.30 mm, for models 533, 633, 733, 833

1шт.

25

3147211R1

WASHER

SHIM, 0.50 mm, for models 533, 633, 733, 833

1шт.

Axle Serial No.: 8170 -

1шт.

25

3216580R1

DISC

SHIM, 0.5 mm, for models 533, 633, 733, 833

1шт.

25

3216579R1

SHIM

1.0 mm, for models 533, 633, 733, 833

1шт.

Axle Serial No.: - 8169

1шт.

25

3147210R1

SHIM

1.00 mm, for models 533, 633, 733, 833

1шт.

Axle Serial No.: 8170 -

1шт.

26

933328R1

SNAP RING,M16, Ext

RING, 16 mm dia, for models 533, 633, 733, 833

6шт.

27

3140535R2

SHAFT HOUSING

CARRIER, for models 533, 633, 733, 833

2шт.

Axle Serial No.: 8170 -

1шт.

27

CARRIER, 3401535R1/3147209R2, order 933717R1 / 713845R1

2шт.

Axle Serial No.: - 8169

1шт.

930244R1

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

for models 533, 633, 733, 833

42шт.

932840R1

LOCK PIN,M8 x 26, Slotted

for models 533, 633, 733, 833

4шт.

933717R1

PLUG,Hex Soc, M12 x 1.5

M12, for models 533, 633, 733, 833

2шт.

713845R1

SEALING WASHER,M12 x 15.5 x 1.5

For models 533, 633, 733, 833

2шт.

933565R1

PLUG,M14, Conical

for models 533, 633, 733, 833

2шт.

28

933222R1

SEALING WASHER,M18 x 22 x 1.5

For models 533, 633, 733, 833

2шт.

29

934651R1

PLUG,Hex Soc, M18 x 1.5

For models 533, 633, 733, 833

2шт.

30

934650R1

CIRCLIP,Ext, M14.5

for models 533, 633, 733, 833

6шт.

31

3216574R1

LARGE PIN

PIN, LARGE for models 533, 633, 733, 833

6шт.

32

3216577R1

WASHER

for models 533, 633, 733, 833

12шт.

33

3216576R1

WASHER

for models 533, 633, 733, 833

12шт.

34

3216575R1

GEAR

for models 533, 633, 733, 833

6шт.

35

934642R1

NEEDLE ROLLER,3.5mm OD x 23.8mm L

for models 533, 633, 733, 833

1шт.

36

3217887R1

SPACER

for models 533, 633, 733, 833

2шт.

37

3217886R1

BOLT

for models 533, 633, 733, 833

16шт.

38

89523C1

CENTER JOINT

for models 533, 633, 733, 833

2шт.

38

89524C1

SPIDER ,U-JOINT

JOINT, SPIDER for models 533, 633, 733, 833

2шт.

Double Joint Shaft

1шт.

39

3147584R1

RING

RETAINER, for models 533, 633

8шт.

Transmission Serial Number: (-XXXX)

1шт.

39

3223197R1

RING, SNAP

RING SNAP retaining, for models 533, 633, 733, 833

8шт.

40

3216599R91

SHAFT

short, for models 533, 633, 733, 833

2шт.

40

89521C1

SHORT SHAFT FORK

for models 533, 633, 733, 833

2шт.

Double Joint Shaft

1шт.
