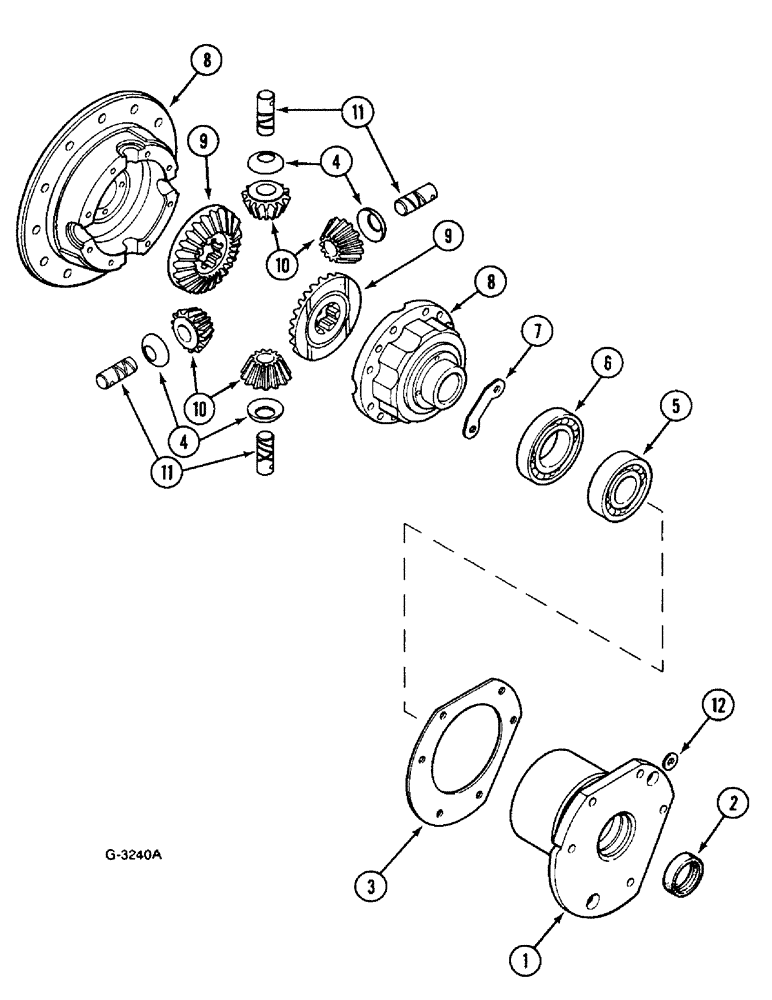

Запчасти Case IH 633 (6-366) - DIFFERENTIAL (06) - POWER TRAIN

1

786423R31

BEARING ASSY

HOUSING, right

1шт.

1

786424R31

BEARING ASSY

HOUSING, left, with 2

1шт.

179845

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

for models 433, 533, 633, 733

2шт.

24842R1

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 8

For models 833

2шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

2шт.

103323

LOCK WASHER,1/2"

2шт.

717547R1

LOCK PIN,M16 x 18, Slotted

4шт.

2

21969D

SEAL

oil

2шт.

3

786425R1

DISC

SHIM, 0.40 mm

1шт.

3

786556R1

SHIM

0.20 mm

1шт.

3

786557R1

SHIM

0.10 mm

1шт.

3

3399168R1

SHIM

0.15 mm

1шт.

4

3058643R1

WASHER

4шт.

5

717008R91

BEARING, ROLLER, CYL

2шт.

6

711183R91

BEARING, ROLLER

2шт.

7

713642R1

PLATE, LOCKING

4шт.

8

3134498R11

CASE

set of 2

1шт.

3135870R1

BOLT

12шт.

9

3134500R1

GEAR

28T

2шт.

10

3134948R1

PINION

15T

4шт.

11

787116R3

SHAFT

4шт.

932232R1

LOCK PIN,M8 x 18, Slotted

4шт.

12

50793H

WASHER

10 x 22 x 3 mm

4шт.
