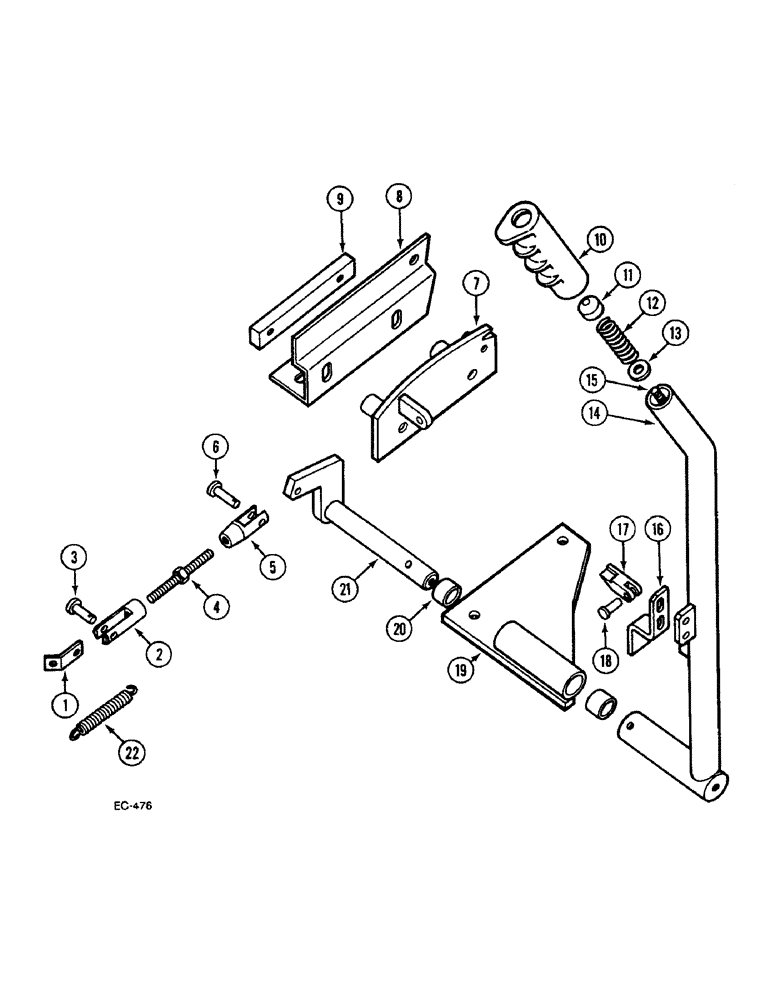

Запчасти Case IH 633 (6-328) - HAND LEVER FOR DOUBLE CLUTCH (06) - POWER TRAIN

1

1285091C1

ANGLE

SPARE PART

1шт.

30716R1

BOLT,Hex, M8 x 1.25 x 90mm, Cl 8.8

1шт.

3058250R1

WASHER

8 mm

1шт.

2

714539R1

YOKE

UNIVERSAL JOINT YOKE

1шт.

3

3145350R1

PIN

1шт.

103384

COTTER PIN,1/8" x 3/4"

1шт.

4

787263R1

ROD ASSEMBLY

1шт.

5

786463R1

FORK

CLEVIS

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

1шт.

6

103496

CLEVIS PIN,3/8" x 1.060"

1шт.

103373

COTTER PIN,3/32" x 3/4"

1шт.

7

1285087C1

SUPPORT

BRACKET ASSEMBLY

1шт.

934942R1

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8, Full Thd

1шт.

43362

NUT,M8 x 1.25, Cl 10

1шт.

934006R1

WASHER,M8 x 16 x 1.6

8 mm

1шт.

56605

BOLT,Hex, M8 x 55, 8.8

2шт.

3058250R1

WASHER

8 mm

2шт.

8

1285089C2

BRACKET

SUPPORT

1шт.

180078

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

1шт.

905242R1

WASHER,M20 ID x 28 OD x 1 Thk

1.00 mm

1шт.

9

1285088C1

PLATE

SPARE PART BAR

1шт.

10

3234634R1

HANDLE

1шт.

3058250R1

WASHER

8 mm

1шт.

11

3057419R1

BUTTON

1шт.

12

76DS

SPRING

1шт.

13

3054426R2

WASHER

1шт.

14

1285083C1

ARM ASSY.

1шт.

30296R1

BOLT,Hex, M8 x 1.25 x 85mm, Cl 8.8

1шт.

1285092C91

ROD

SPARE PART mounting, consists of Ref. 15, 17

1шт.

15

3141066R1

ROD

1шт.

104152

RIVET,Csk, 3/16" x 5/8"

3/16 x 16 mm

1шт.

16

1285090C1

SUPPORT

1шт.

934876R1

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

2шт.

934948R1

WASHER,M6

2шт.

17

1285093C1

PAWL

1шт.

18

3229795R1

CLEVIS PIN,M6 x 25

1шт.

932951R1

COTTER PIN,M1.6 x 12

1.6 x 12 mm

1шт.

1285085C91

PLATE

SUPPORT ASSY., consists of Ref. 19, 20

1шт.

19

1285086C2

SUPPORT

2шт.

364257R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

2шт.

103323

LOCK WASHER,1/2"

2шт.

20

3226548R1

BUSHING

2шт.

21

1285084C1

LEVER ASSY.

SPARE PART

1шт.

3229735R1

LEVER

1шт.

Q2932

LOCK PIN,M8 x 36, Slotted

1шт.

22

3220351R1

TENSION SPRING

1шт.
