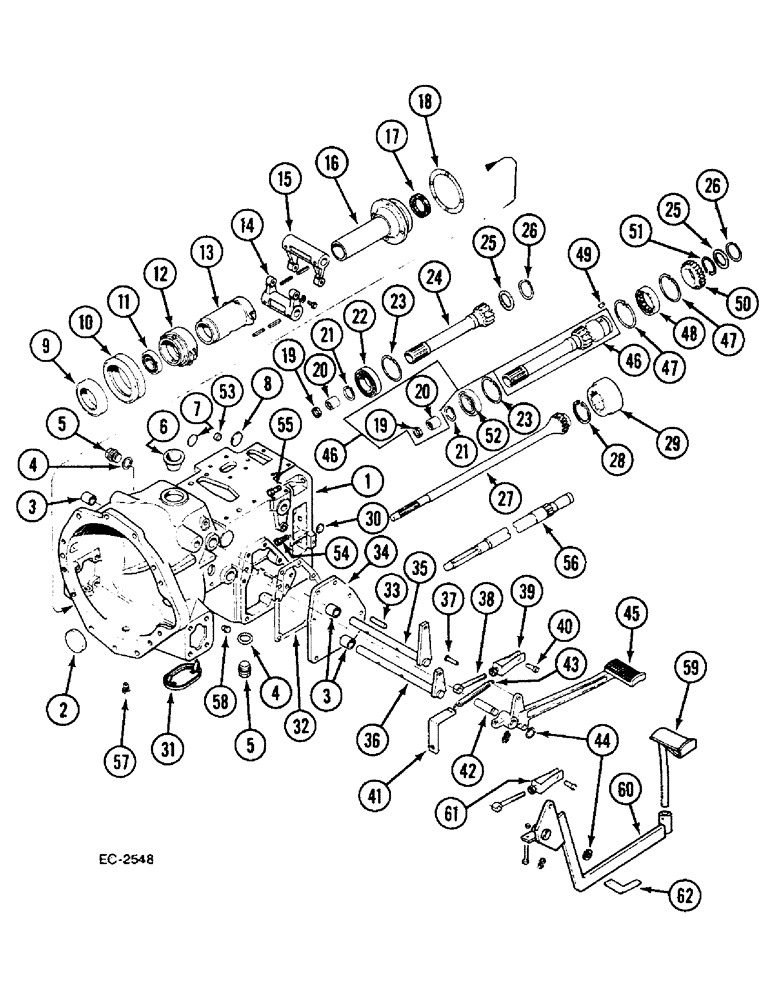

Запчасти Case IH 633 (6-310) - DOUBLE CLUTCH HOUSING AND CONNECTIONS (06) - POWER TRAIN

1

1954734C1

HOUSING ASSY.

with 42, 53, for models 433, 533, 633

1шт.

1

1954733C1

HOUSING ASSY.

with 42, 53, for models 733, 833

1шт.

2

3139281R1

PLUG

1шт.

3

43291D

BUSHING

4шт.

4

933609R1

RING

2шт.

5

3059999R3

PLUG

2шт.

6

785816R1

CAP

1шт.

7

172558

PLUG,Exp, 1 1/4"

32 mm

1шт.

8

934010R1

PLUG,M12, Conical

1шт.

786530R31

STOP

SLEEVE ASSY., inner, consists of Ref. 9 - 13

1шт.

9

786532R91

THRUST BEARING,65mm ID x 101.5mm OD x 21.5mm W

1шт.

10

3142800R1

THRUST RING,106.2mm ID x 135mm OD x 44.85mm L

1шт.

11

3146056R91

BEARING

ball

1шт.

12

3148748R1

SLEEVE

outer

1шт.

757732R91

NIPPLE, LUBE

NIPPLE LUBRICATOR

1шт.

13

786530R31

STOP

SLEEVE ASSY., inner

1шт.

14

786535R1

YOKE

UNIVERSAL JOINT YOKE

1шт.

Q2933

LOCK PIN,M8 x 40, Slotted

1шт.

932236R1

LOCK PIN,M5 x 40, Slotted

1шт.

786552R1

SET SCREW,Hex, 1/4" - 20 x 3/4"

1/4 x 19 mm

1шт.

103319

LOCK WASHER,1/4"

1шт.

15

786551R1

FORK

PTO clutch

1шт.

Q2933

LOCK PIN,M8 x 40, Slotted

2шт.

932236R1

LOCK PIN,M5 x 40, Slotted

2шт.

786552R1

SET SCREW,Hex, 1/4" - 20 x 3/4"

1/4 x 19 mm

2шт.

103319

LOCK WASHER,1/4"

2шт.

16

786527R31

TUBE

SUPPORT, with Ref. 17

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

4шт.

103320

LOCK WASHER,5/16"

4шт.

17

786529R91

OIL SEAL,45mm ID x 65mm OD x 8mm Thk

1шт.

18

786526R1

GASKET

1шт.

19

786446R91

OIL SEAL

1шт.

20

747817R91

BEARING, NEEDLE,Needle, 25mm ID x 33mm OD x 20mm W

1шт.

21

933283R1

SNAP RING,M45, Ext

RING, retaining

1шт.

22

763321R91

BEARING, BALL,45 mm ID x 85 mm OD x 19 mm

1шт.

22

785728R91

BEARING, ROLLER,45 mm ID x 85 mm OD x 19 mm

for models 533, 633, 733, 833

1шт.

23

933288R1

SNAP RING,M85, Int

RING, retaining

1шт.

24

3405397R91

SHAFT

PTO 540 rpm, with Ref. 19, 20

1шт.

25

3148225R1

THRUST WASHER

1шт.

26

3057131R1

RING, SNAP

RING SNAP retaining

1шт.

27

3216992R1

SHAFT

1шт.

3216951R1

SHAFT

super creep speed

1шт.

27

3148143R1

SHAFT

SPARE PART for models 433, 533, 633

1шт.

Transmission Serial Number: Up to 8664

1шт.

28

933235R1

SNAP RING,M40, Int

retaining

1шт.

29

3148058R1

COUPLING, BREAK AWAY

1шт.

30

172545

SEAL

25 x 2 mm

1шт.

31

786507R11

COVER

for models 433, 533, 633

1шт.

31

3233183R91

COVER

for models 733, 833

1шт.

32

3134517R1

GASKET

1шт.

33

37-2614

DOWEL,3/8" x 7/8"

2шт.

34

3134534R1

PLATE

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

7шт.

103321

LOCK WASHER,3/8"

7шт.

35

3148203R91

SHAFT

1шт.

36

786536R11

SHAFT

1шт.

37

74158H

CLEVIS PIN,3/8" x 1.344"

1шт.

103373

COTTER PIN,3/32" x 3/4"

1шт.

38

3148773R91

EYEBOLT

BOLT, EYE ROD, without cab

1шт.

114494

NUT,Jam, 3/8"-24, G5

1шт.

831123R1

SQUARE NUT

3/8 in

1шт.

39

3058293R1

CLEVIS

without cab

1шт.

40

3217319R1

PIN

without cab

1шт.

932204R1

LOCK PIN,M3 x 20, Slotted

1шт.

41

3148202R1

PLATE

SPARE PART

1шт.

42

786505R1

SHAFT

1шт.

43

763192R1

SPRING

1шт.

44

933123R1

SNAP RING,M20, Ext

RING, retaining

1шт.

45

3148213R91

PEDAL

without cab, with Ref. 37, 38

1шт.

357432R3

BOLT

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

1шт.

739159R91

LUBE NIPPLE

LUBRICATOR LUBRICATOR

1шт.

46

3405391R91

SHAFT

1шт.

Version with PTO 540/1000

1шт.

46

3405395R91

SHAFT

1шт.

Version with 540/1000 PTO and Speed Reducer

1шт.

47

933077R1

SNAP RING,M90, Int

retaining, for models 433, 533, 633, 733

2шт.

Version with 540/1000 PTO and Speed Reducer

1шт.

47

933077R1

SNAP RING,M90, Int

retaining, for model 833

2шт.

Version with 540/1000 PTO, Speed Reducer and Synchronizer

1шт.

48

3216468R91

ROLLER BEARING,60.4 mm ID x 20 mm

for model 433, 533, 633, 733

1шт.

Version with 540/1000 PTO and Speed Reducer

1шт.

48

3216468R91

ROLLER BEARING,60.4 mm ID x 20 mm

for model 833

1шт.

Version with 540/1000 PTO, Speed Reducer and Synchronizer

1шт.

49

218211

DRIVING SPROCKET

1шт.

Version with PTO 540/1000

1шт.

50

3216471R1

GEAR

24T

1шт.

Version with PTO 540/1000

1шт.

51

933030R1

SNAP RING,M55, Ext

retaining, for models 433, 533, 633, 733

1шт.

Version with PTO 540/1000

1шт.

52

763321R91

BEARING, BALL,45 mm ID x 85 mm OD x 19 mm

for models 433, 533, 633, 733

1шт.

Version with 540/1000 PTO and Speed Reducer

1шт.

52

763321R91

BEARING, BALL,45 mm ID x 85 mm OD x 19 mm

for models 433, 533, 633, 733

1шт.

Version with 540/1000 PTO, Speed Reducer and Synchronizer

1шт.

53

3058102R1

PLUG

for models 433, 533, 633, 733

1шт.

54

3217431R1

HEX SOC SCREW

for models 433, 533, 633, 733

2шт.

711055R1

WASHER

1/2", for model 733

2шт.

103323

LOCK WASHER,1/2"

For models 433, 533, 633

2шт.

55

3216191R1

BOLT

6шт.

55

3216191R1

BOLT

4шт.

103323

LOCK WASHER,1/2"

For models 433, 533, 633

6шт.

711055R1

WASHER

1/2" , for models 733, 833

8шт.

56

3226964R1

SHAFT

for models 433, 533, 633, 733

1шт.

For Synchronizer: Version With Speed Reducer

1шт.

57

3402981R1

PLUG

19 mm dia

2шт.

3402980R1

PLUG

24 mm dia

1шт.

3402982R1

PLUG

44 mm dia, for models 433, 533, 633, 733

1шт.

58

716495R2

PLUG

PROTECTOR, 5/8 in

8шт.

59

1285081C1

PEDAL ASSY.

SPARE PART with cab, for models 433, 533, 633, 733

1шт.

932228R1

LOCK PIN,M6 x 24, Slotted

for models 433, 533, 633, 733

1шт.

60

1285082C1

LEVER ASSY.

with cab, for models 433, 533, 633, 733

1шт.

933781R1

LUBE NIPPLE,M10 x 1

LUBRICATOR, 58 mm

1шт.

61

1285077C1

ROD ASSY.

SPARE PART with cab

1шт.

62

3404350R1

HOLDER

SPARE PART with cab

1шт.

933942R1

BOLT

1шт.

43362

NUT,M8 x 1.25, Cl 10

1шт.
