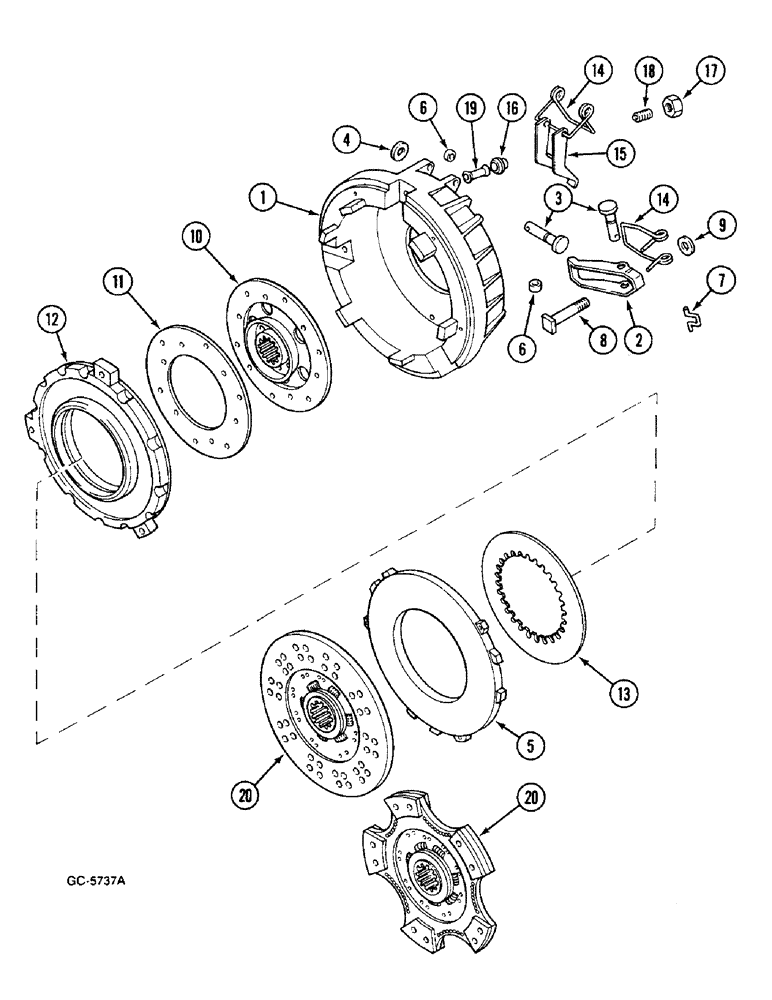

Запчасти Case IH 633 (6-306) - DOUBLE CLUTCH "FICHTEL AND SACHS" (06) - POWER TRAIN

CLUTCH, Consists of Ref. 1 - 20, Order 3224545R92

1шт.

3148949R92

CLUTCH

CLUTCH ASSY., Consists of Ref. 1 - 19

1шт.

21237R1

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 8

6шт.

103320

LOCK WASHER,5/16"

6шт.

1

3148950R1

SPARE PART

1шт.

2

3148954R1

LEVER

3шт.

3

3141165R1

LARGE PIN

PIN, LARGE

6шт.

932769R1

SPRING,M2 x 18

2 x 18 mm

6шт.

4

3141170R1

WASHER

6шт.

5

3148951R1

SPARE PART

1шт.

6

3216738R1

BUSHING

12шт.

7

3141176R1

CINTRE

BOW CLIP

3шт.

8

3148955R1

SCREW

3шт.

934367R1

NUT

M8

6шт.

9

3148956R1

WASHER

3шт.

10

3148962R92

DISC

1шт.

3141180R1

RIVET

12шт.

11

3148963R1

SPARE PART

2шт.

12

3148952R1

SPARE PART

1шт.

13

3148953R1

SPARE PART

1шт.

14

3141172R1

SPRING

6шт.

3148958R91

LEVER ASSY.

Consists of Ref. 15 - 18

3шт.

15

3148959R1

SPARE PART

3шт.

16

3148960R1

BUSHING

3шт.

17

3230328R1

THIN NUT,Thin, M10 x 1, Cl 04

3шт.

18

3224426R1

SET SCREW

3шт.

19

3141961R1

PIN

3шт.

20

3148965R1

DISC

With Organic Lining

1шт.
