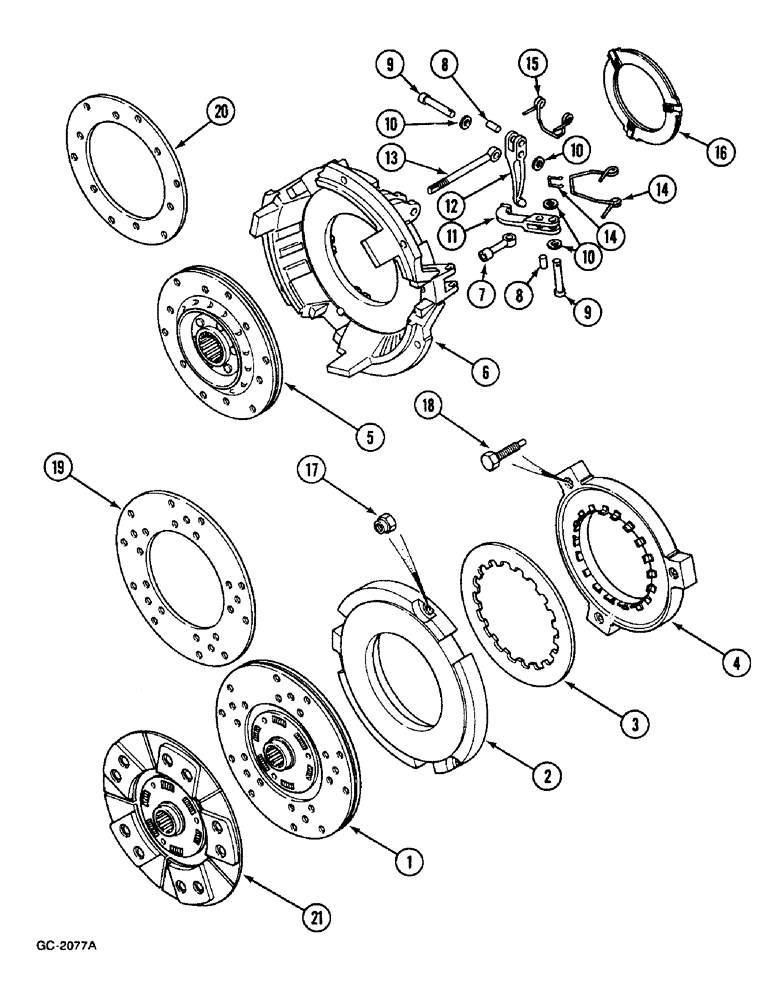

Запчасти Case IH 633 (6-302) - DOUBLE CLUTCH "LUK" (06) - POWER TRAIN

CLUTCH, Consists of Ref. 1 - 20, Order 3216398R94, for models 433, 533

1шт.

CLUTCH, Consists of Ref. 2 - 21, Order 3224545R92, for model 633

1шт.

21237R1

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 8

6шт.

103320

LOCK WASHER,5/16"

6шт.

1

3216399R91

CLUTCH PLATE

DISC, for models 433, 533

1шт.

2

3134890R1

PLATE

1шт.

3

3134896R2

SPRING

1шт.

4

3134888R1

PLATE

1шт.

932572R1

LOCK PIN,M4 x 12, Slotted

3шт.

5

3134885R92

CLUTCH & DISC ASSY

1шт.

6

3134876R1

HOUSING

SPARE PART

1шт.

7

3134878R1

YOKE

UNIVERSAL JOINT YOKE LEVER

3шт.

8

3134882R1

PIN

6шт.

9

3137551R1

PIN

6шт.

107763

COTTER PIN,1/8" x 5/8"

6шт.

10

3146773R1

WASHER

12шт.

11

3134877R1

LEVER

3шт.

Chassis Serial Number: Model 433: Up to 122088, Model 533: Up to 213003, Model 633: Up to 273309

1шт.

11

3217506R1

LEVER

3шт.

Chassis Serial Number: Model 433: 122089 and after, Model 533: 213004 and after, Model 633: 273310 and after

1шт.

12

3134879R1

LEVER

3шт.

13

3058396R4

BOLT

3шт.

3147610R1

WASHER

3шт.

14

3134880R11

KIT

SPRING

3шт.

Chassis Serial Number: Model 433: Up to 122088, Model 533: Up to 213003, Model 633: Up to 273309

1шт.

14

3127505R91

SPRING

3шт.

Chassis Serial Number: Model 433: 122089 and after, Model 533: 213004 and after, Model 633: 273310 and after

1шт.

15

3134883R1

RETAINER

SPRING

3шт.

16

3134894R1

RING

1шт.

Chassis Serial Number: Model 433: Up to 122088, Model 533: Up to 213003, Model 633: Up to 273309

1шт.

17

3146772R2

NUT

3шт.

18

3224556R1

BOLT

3шт.

933681R1

THIN NUT,Thin, M10 x 1.5, Cl 04

3шт.

19

3134892R1

LINING

for models 433, 533

2шт.

712673R1

RIVET

for models 433, 533

24шт.

932654R1

RIVET,Flat Hd, M4 x 5

for models 433, 533

6шт.

3134893R1

RIVET

for models 433, 533

12шт.

20

3134886R1

LINING

2шт.

3134887R1

RIVET

12шт.

21

3216397R91

CLUTCH & DISC ASSY

for model 633

1шт.
