(5-242) - STEERING CONTROL VALVE "ZF"

Запчасти Case IH 633 (5-242) - STEERING CONTROL VALVE "ZF" (05) - STEERING

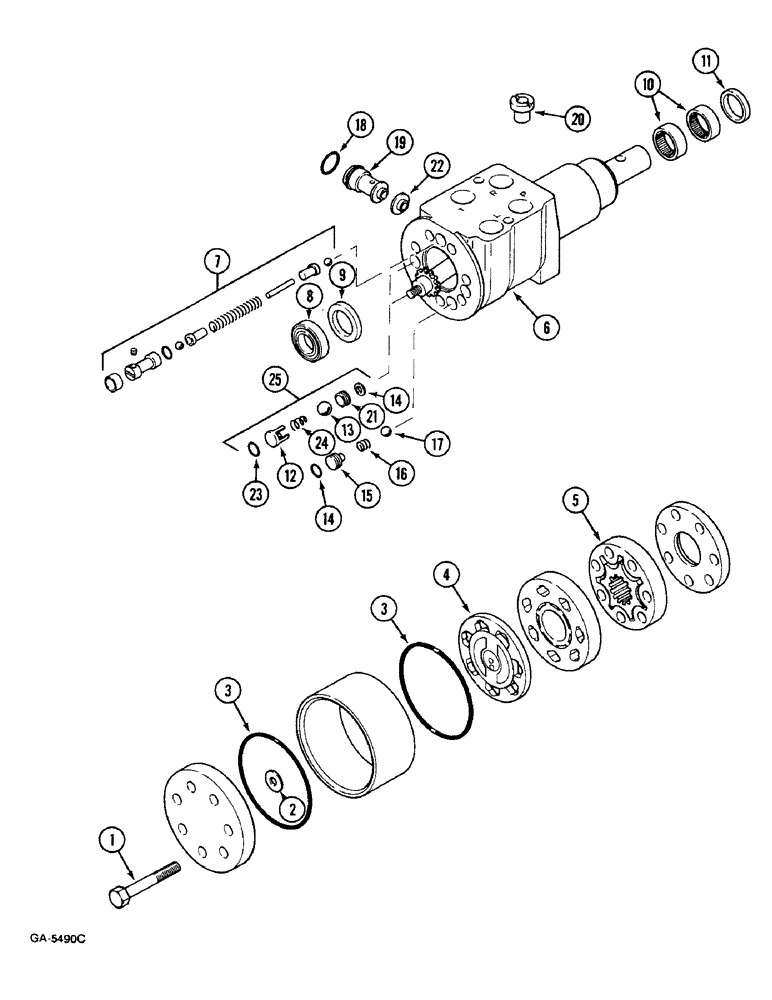

Схема запчастей Case IH 633 - (5-242) - STEERING CONTROL VALVE "ZF" (05) - STEERING
8
12
4
7
17
23
13
5
21
25
14
1
19
2
3
10
24
20
14
3
6
16
15
22
9
11
18
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

3147931R96

VALVE, CONTROL

1шт.

1

3216069R1

BOLT

7шт.

2

3216070R1

WASHER

1шт.

3

3225273R1

O-RING

2шт.

4

3216072R1

PLATE

1шт.

5

3216073R1

ROTOR

SPARE PART

1шт.

6

3216074R1

HOUSING

with: Ref. 7-11

1шт.

7

3216081R1

VALVE

1шт.

8

3216082R3

SEAL

1шт.

9

3216083R1

WASHER

1шт.

10

3139062R91

BEARING, NEEDLE,Needle, 22.21mm ID x 31.88mm OD x 9.53mm W

2шт.

11

3216084R1

SEAL

1шт.

12

3224366R1

PLATE, LOCKING

GUIDE

2шт.

Chassis Serial Numbers: Model 433: 007050 and after, Model 533: 007695 and after, Model 633: 010630 and after, Model 733 & 833: 001000 and after

1шт.

12

3220800R1

GUIDE

order also: P/N 3216075R2 x 2, P/N 3220801R1 x 1, P/N 3220802R1 x 1

2шт.

Chassis Serial Numbers: Model 433: Up to 007049, Model 533: Up to 007694, and Model 633: Up to 010629

1шт.

13

934018R1

BALL

10 mm dia

2шт.

Chassis Serial Numbers: Model 433: 007050 and after, Model 533: 007695 and after, Model 633: 010630 and after, Model 733 & 833: 001000 and after

1шт.

13

3220801R1

SPARE PART for models 433, 533, 633

2шт.

Chassis Serial Numbers: Model 433: Up to 007049, Model 533: Up to 007694, and Model 633: Up to 010629

1шт.

14

3216075R3

O-RING

1шт.

15

3216076R1

PLUG

2шт.

16

3216419R1

SPRING

2шт.

17

934017R1

BALL,8mm OD, Gr 28

8 mm dia

2шт.

18

3135107R3

O-RING,2mm Thk x 15mm ID

1шт.

19

3217078R3

VALVE

1шт.

20

1287570C1

VALVE

1шт.

21

3224367R1

SEAT, VALVE

SPARE PART

2шт.

Chassis Serial Numbers: Model 433: 007050 and after, Model 533: 007695 and after, Model 633: 010630 and after, Model 733 & 833: 001000 and after

1шт.

21

3220802R1

SEAT/SLOT

SPARE PART

1шт.

Chassis Serial Numbers: Model 433: Up to 007049, Model 533: Up to 007694, and Model 633: Up to 010629

1шт.

22

3217266R1

FILTER

1шт.

23

3224368R1

WASHER

2шт.

24

3224369R1

SPRING

2шт.

25

3225861R91

HYDRAULIC VALVE

PACKAGE seals, with: Ref. 12, 13, 23, 24, Start Serial: 59090

1шт.

25

3224370R91

VALVE

PACKAGE service, with: Ref. 12-14, 21, 23, 24, Serial Range: -59089

1шт.
