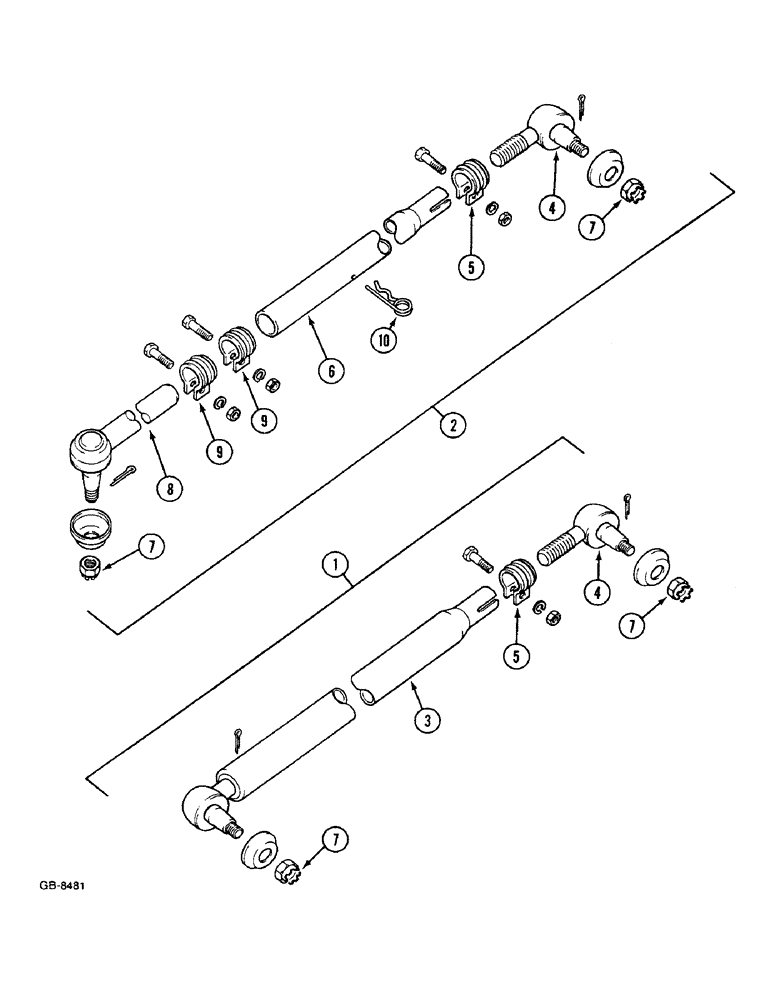

Запчасти Case IH 633 (5-222) - DRAG LINK (05) - STEERING

1

3225501R91

TIE-ROD

TIE ROD LINK drag, Consists of: 3-5, 7, for models 433, 533, 633

1шт.

1

3234497R91

TIE-ROD

TIE ROD LINK drag, Consists of: 3-5, 7, for models 733, 833

1шт.

2

3232248R91

TIE-ROD

LINK drag, adjustable, Consists of: 4, 6-10, for models 433, 533, 633

1шт.

2

3234498R91

TIE-ROD

LINK drag, adjustable, Consists of: 4, 6-10, for models 733, 833

1шт.

3

3225509R1

BALL JOINT

PIPE for models 433, 533, 633

1шт.

3

3401841R1

BALL JOINT

SPARE PART PIPE for models 733, 833

1шт.

4

3147510R1

BALL JOINT

1шт.

5

3131018R1

CLAMP

ASSY.

1шт.

716206R1

BOLT,Hex, M8 x 1 x 40mm, Cl 8.8

1шт.

103320

LOCK WASHER,5/16"

1шт.

716196R1

NUT,M8, Cl 6

1шт.

6

3148924R1

TUBE

PIPE for models 433, 533, 633

1шт.

6

3401844R1

TUBE

PIPE for models 733, 833

1шт.

7

933169R1

NUT,M12 x 1.5

1шт.

934793R1

COTTER PIN,M3.2 x 25

3.2 x 25 mm

2шт.

934794R1

COTTER PIN,M3.2 x 28

cotter, 3.2 x 28 mm

2шт.

8

3148925R1

BALL JOINT

1шт.

9

3078644R1

CLAMP

2шт.

10

716198R1

SPLIT PIN/SAFETY PIN

spring

1шт.
