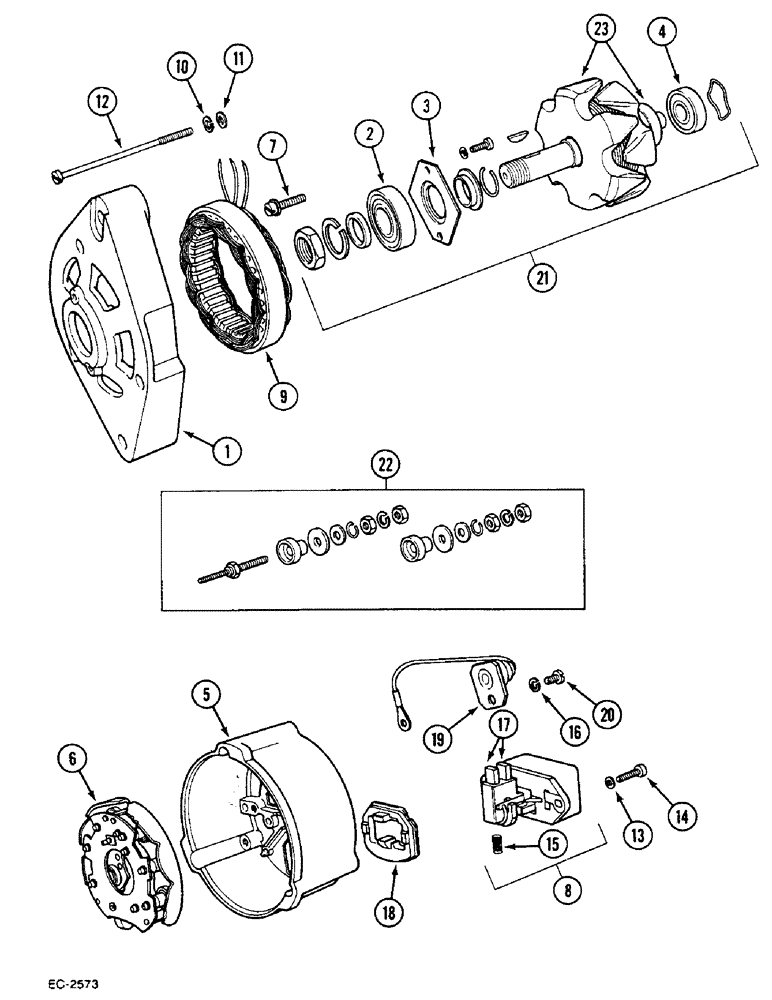

Запчасти Case IH 633 (4-144) - ALTERNATOR (28 AMP) (04) - ELECTRICAL SYSTEMS

3144907R91

ALTERNATOR

1шт.

1

3079034R1

COVER

1шт.

2

3078585R91

BEARING, BALL

1шт.

3

3078487R1

O-RING

1шт.

4

3079139R91

BEARING, BALL

1шт.

5

3079036R1

HOUSING

1шт.

6

3078957R92

PLATE

1шт.

7

3078588R91

BOLT

3шт.

8

3079123R91

REGULATOR

1шт.

9

3079121R1

STATOR

1шт.

10

933986R1

LOCK WASHER,M5

3шт.

11

887416R1

WASHER

5 x 10 x 1 mm

3шт.

12

3209676R1

SCREW

3шт.

13

933982R1

WAVE WASHER,M4.3 ID x 9 OD x .5 Thk

4 mm

2шт.

14

3079379R1

SCREW,Slot Cheese Hd, M4 x .7 x 16, 5.8

BOLT

2шт.

15

3209062R11

VALVE SPRING

2шт.

16

933677R1

WAVE WASHER

1шт.

17

3079038R91

BRUSH SET

1шт.

18

3079039R1

GASKET

1шт.

19

3079040R91

DIODE

RECTIFIER Zener

1шт.

20

625589C1

SCREW,Slot Cheese Hd, M5 x .8 x 10, 8.8

M5 x 10 mm

1шт.

21

3078595R91

SET OF PARTS

1шт.

22

3078596R91

PACKAGE

SET connecting parts, Terminal B

1шт.

22

3078597R91

PACKAGE

SET connecting parts, Terminal D

1шт.

23

3079035R2

ROTOR

1шт.
