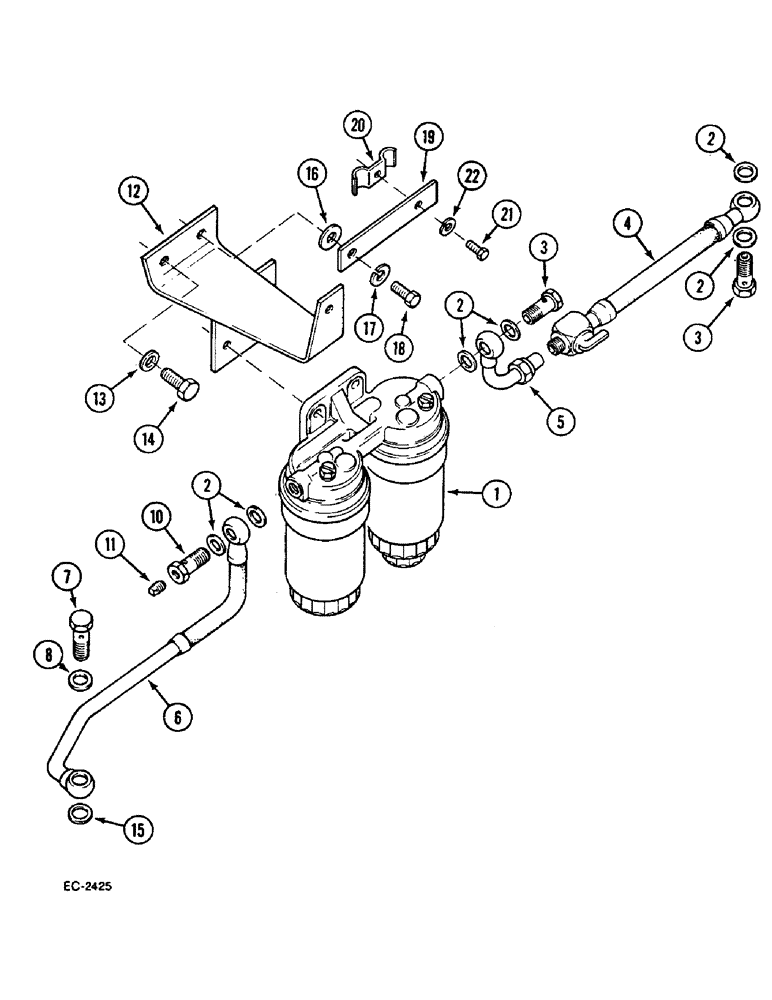

Запчасти Case IH 633 (3-100) - FUEL FILTER AND LINES (03) - FUEL SYSTEM

1

NSS

NOT SOLD SEPARAT

FILTER see fuel filter "Bosch"

1шт.

2

933610R1

SEALING RING,M14 x 18 x 1.8

1шт.

3

710098R2

BANJO BOLT,M14 x 1.5 x 32mm

hollow

1шт.

4

3136222R91

LINE

PIPE with valve

1шт.

5

787648R1

PIPE FITTING

1шт.

6

3144906R1

LINE

HOSE

1шт.

6

3228764R1

LINE

for models 733, 833

1шт.

7

3216451R1

SCREW

hollow

1шт.

8

713845R1

SEALING WASHER,M12 x 15.5 x 1.5

2шт.

9

Not Used

1шт.

10

3218344R1

BANJO BOLT

SCREW

1шт.

11

445684R1

PLUG

1шт.

12

3224903R92

BRACKET

SUPPORT fuel filter

1шт.

13

20285H

WASHER

10 x 19 x 3 mm

2шт.

14

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

15

934005R1

SEALING RING,12mm ID x 18mm OD x 1.5mm Thk

1шт.

16

25544R1

WASHER,13/32" x 13/16" x .134", HDN

for models 433, 533, 633

1шт.

17

3050221R1

LOCK WASHER

lock, 10 mm, for models 433, 533, 633

1шт.

18

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

For models 433, 533, 633

1шт.

19

3055387R1

LINK

PLATE for models 433, 533, 633

1шт.

20

3055386R1

CLAMP

CLIP for models 433, 533, 633

1шт.

21

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

For models 433, 533, 633

1шт.

22

3052189R1

BELLEVILLE WASHER

lock, for models 433, 533, 633

1шт.

3144657R91

PACKAGE

fuel feedline

1шт.
