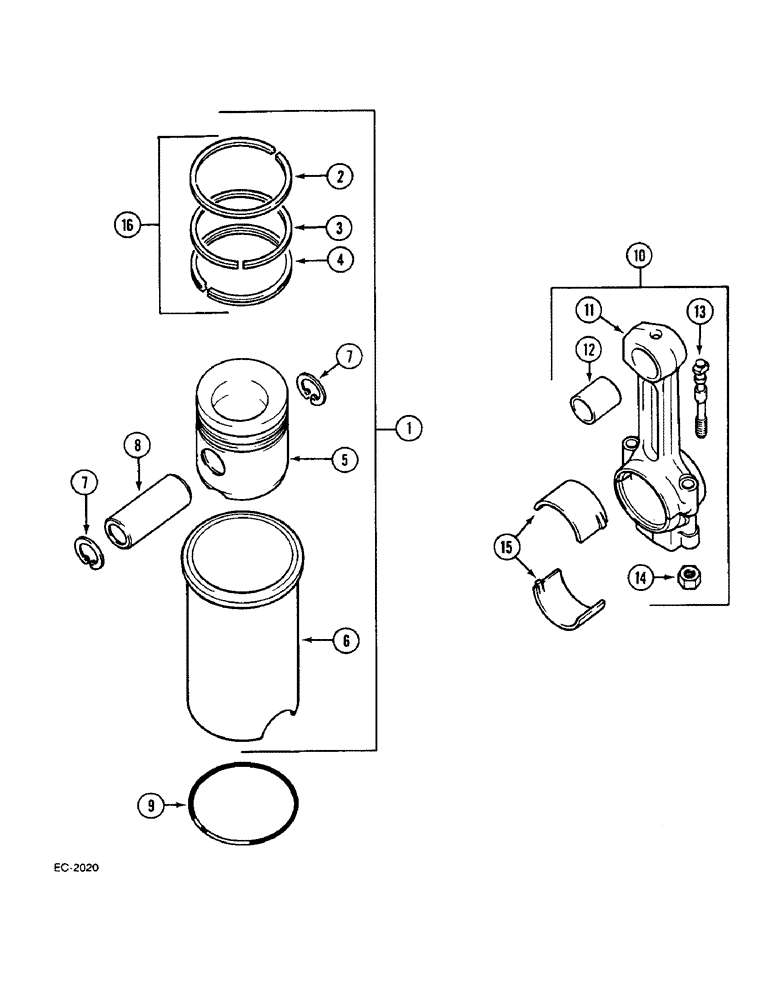

Запчасти Case IH 633 (2-72) - CONNECTING RODS, PISTONS AND SLEEVES (02) - ENGINE

1

3218758R95

SLEEVE ASSY

PISTON for models 433, 533

3шт.

1

3218758R95

SLEEVE ASSY

PISTON for model 733

4шт.

1

1806470C91

SLEEVE ASSY

PISTON for model 833

4шт.

1

3218759R95

SLEEVE ASSY

PISTON Consists of: 5-8, 16, for model 633

3шт.

2

NSS

NOT SOLD SEPARAT

RING

1шт.

3

NSS

NOT SOLD SEPARAT

RING

1шт.

4

NSS

NOT SOLD SEPARAT

RING

1шт.

5

NSS

NOT SOLD SEPARAT

PISTON for models 433, 533, 633

3шт.

5

NSS

NOT SOLD SEPARAT

PISTON for models 733, 833

4шт.

6

3139587R3

SLEEVE CYLINDER

for models 433, 533, 633

3шт.

6

3139587R3

SLEEVE CYLINDER

for model 733

4шт.

6

3139592R4

SLEEVE CYLINDER

for model 833

4шт.

7

933327R1

SNAP RING,M36, Int

retaining, for models 433, 533, 633

6шт.

7

933327R1

SNAP RING,M36, Int

retaining, for models 733, 833

8шт.

8

3055217R2

PISTON PIN

for models 433, 533, 633

3шт.

8

3055217R2

PISTON PIN

for models 733, 833

4шт.

9

3228348R1

RING,4.75mm Thk x 109.16mm ID

for models 433, 533, 633

3шт.

9

3228348R1

RING,4.75mm Thk x 109.16mm ID

for models 733, 833

4шт.

10

3055029R24

CONNECTING ROD

ASSY. for models 433, 533

3шт.

10

3055030R24

ROD, CONNECTING

Consists of: 11-14, for model 633

3шт.

10

3055030R24

ROD, CONNECTING

Consists of: 11-14, for models 733, 833

4шт.

11

NSS

NOT SOLD SEPARAT

ROD connecting, for models 433, 533, 633

3шт.

11

NSS

NOT SOLD SEPARAT

ROD connecting, for models 733, 833

4шт.

12

3132018R2

BUSHING,35.34mm ID x 39.84mm OD x 34mm L

for models 433, 533, 633

3шт.

12

3132018R2

BUSHING,35.34mm ID x 39.84mm OD x 34mm L

for models 733, 833

4шт.

13

3055033R11

BOLT

With Ref 14, For models 433, 533, 633

6шт.

13

3055033R11

BOLT

With Ref 14, For models 733, 833

8шт.

14

NSS

NOT SOLD SEPARAT

NUT

1шт.

15

3055351R91

BEARING ASSY

standard, for models 433, 533, 633

3шт.

15

3055351R91

BEARING ASSY

standard, for models 733, 833

4шт.

15

3056834R11

BEARING ASSY

undersize 0.250 mm, for models 433, 533, 633

3шт.

15

3056834R11

BEARING ASSY

undersize 0.250 mm, for models 733, 833

4шт.

15

3056879R11

BEARING ASSY

undersize 0.500 mm, for models 433, 533, 633

3шт.

15

3056879R11

BEARING ASSY

undersize 0.500 mm, for models 733, 833

4шт.

15

3055781R11

BEARING ASSY

undersize 0.750 mm, for models 433, 533, 633

3шт.

15

3055781R11

BEARING ASSY

undersize 0.750 mm, for models 733, 833

4шт.

16

3218416R92

PISTON RING SET

for models 433, 533, 633, 733

1шт.

16

3139594R91

PISTON RING

Consists of: 2, 3, 4, for model 833

1шт.
