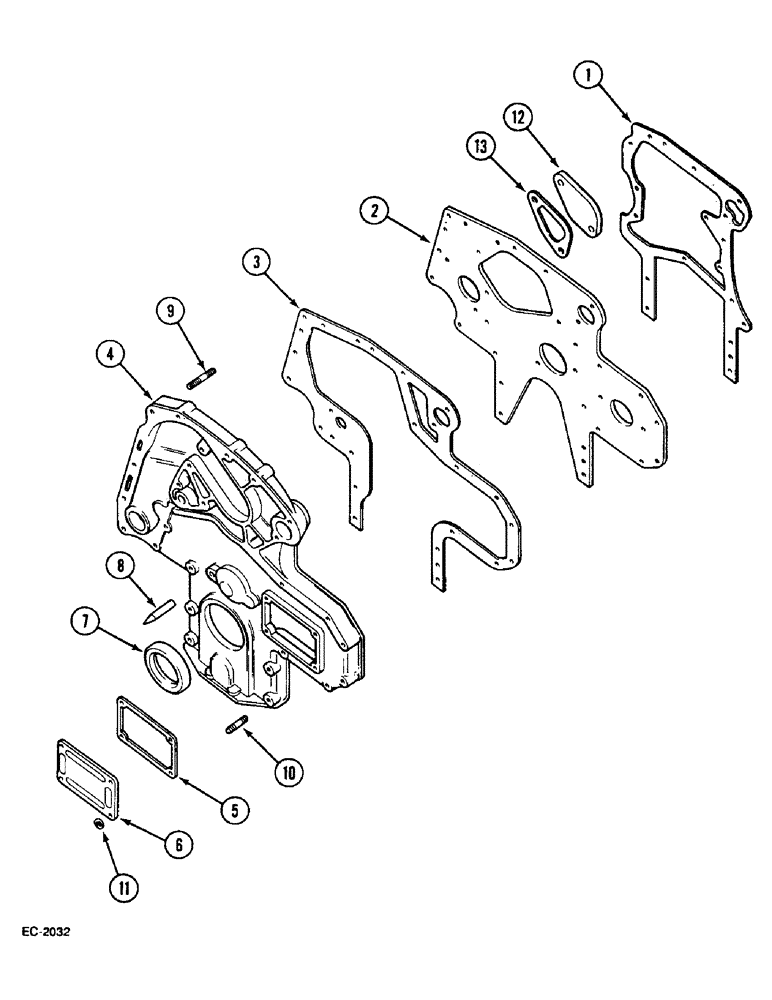

Запчасти Case IH 633 (2-54) - CRANKCASE FRONT COVER (02) - ENGINE

1

3055239R1

GASKET

1шт.

2

3055064R11

PLATE

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

7шт.

3050129R1

LOCK WASHER

WASHER lock, 8 mm

7шт.

3

3144072R2

GASKET

1шт.

4

3056853R61

COVER

1шт.

179825

BOLT,Hex, 5/16" - 18 x 1 7/8", Gr 5

For models 433, 533, 633, 733

2шт.

179825

BOLT,Hex, 5/16" - 18 x 1 7/8", Gr 5

For model 833

1шт.

179826

BOLT,Hex, 5/16" - 18 x 2", Gr 5

For models 433, 533, 633, 733

4шт.

179826

BOLT,Hex, 5/16" - 18 x 2", Gr 5

For model 833

1шт.

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

2шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

1шт.

3218395R1

BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk

Lock

7шт.

9635082

NUT,5/16" - 18, Gr 5

For models 433, 533, 633

3шт.

9635082

NUT,5/16" - 18, Gr 5

For models 733, 833

4шт.

3050129R1

LOCK WASHER

WASHER lock, 8 mm, for models 433, 533, 633

3шт.

3050129R1

LOCK WASHER

WASHER lock, 8 mm, for models 733, 833

4шт.

3138972R1

PLUG

for models 433, 533, 633, 733

1шт.

3058250R1

WASHER

8 mm, for models 433, 533, 633

1шт.

5

3138640R1

GASKET

1шт.

6

3055140R1

COVER

1шт.

131402H

WASHER

4шт.

80681

LOCK WASHER,5/16"

4шт.

9635082

NUT,5/16" - 18, Gr 5

4шт.

7

3228133R93

SEAL KIT

PACKAGE seals, with distance ring and O-ring

1шт.

8

3056855R1

INDICATOR

1шт.

9

3055244R1

STUD

5/16 x 63 mm

4шт.

10

3055242R1

STUD

5/16 x 30 mm

4шт.

11

131402H

WASHER

4шт.

12

3055142R1

COVER

version without hydraulic pump

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

For models 433, 533, 633, 733

2шт.

NLS

NO LONGER SERVICED

For model 833

1шт.

103321

LOCK WASHER,3/8"

2шт.

13

3055143R1

GASKET

1шт.
