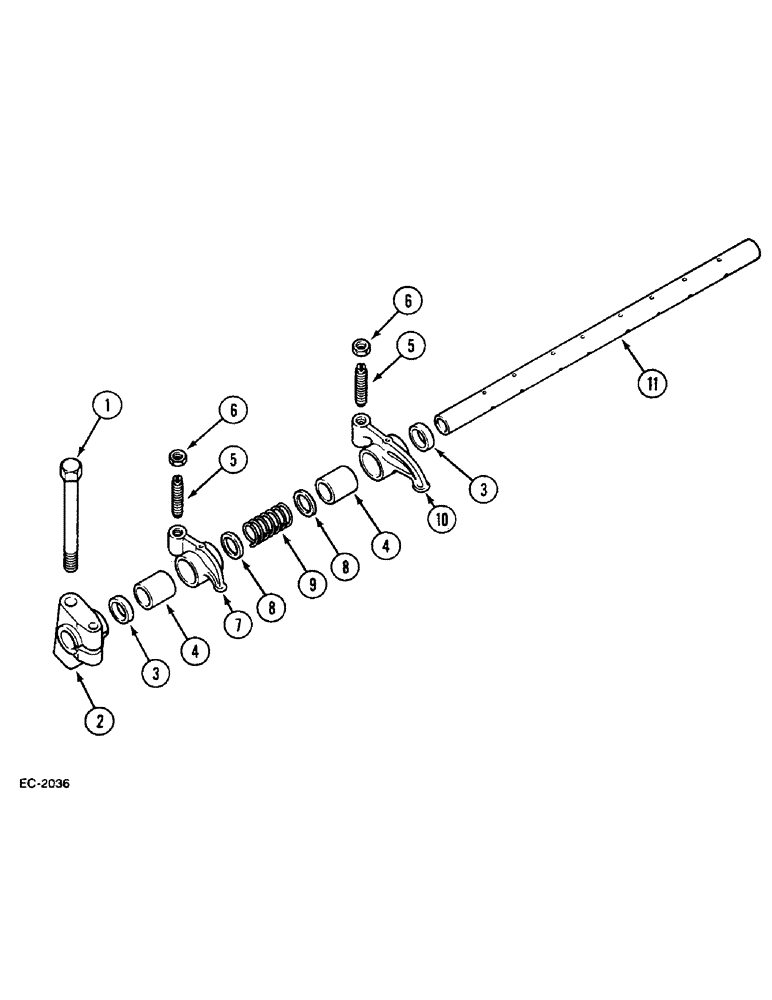

Запчасти Case IH 633 (2-30) - VALVE LEVER (02) - ENGINE

1

179894

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

For models 433, 533, 633

4шт.

1

179894

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

For models 733, 833

5шт.

2

3055077R6

SUPPORT

BRACKET for models 433, 533, 633

4шт.

2

3055077R6

SUPPORT

BRACKET for models 733, 833

5шт.

179822

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

For models 433, 533, 633

4шт.

179822

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

For models 733, 833

5шт.

3050129R1

LOCK WASHER

WASHER lock, 8 mm, for models 433, 533, 633

4шт.

3050129R1

LOCK WASHER

WASHER lock, 8 mm, for models 733, 833

5шт.

3

3055068R1

BUSHING,22mm ID x 30mm OD x 6.8mm L

for models 433, 533, 633

5шт.

3

3055068R1

BUSHING,22mm ID x 30mm OD x 6.8mm L

for models 733, 833

7шт.

4

3132019R1

BUSHING,21.15mm ID x 26.09mm OD x 25.4mm L

for models 433, 533, 633

6шт.

4

3132019R1

BUSHING,21.15mm ID x 26.09mm OD x 25.4mm L

for models 733, 833

8шт.

5

3132137R1

ADJUSTMENT SCREW

For models 433, 533, 633

6шт.

5

3132137R1

ADJUSTMENT SCREW

For models 733, 833

8шт.

6

3132138R1

NUT

for models 433, 533, 633

6шт.

6

3132138R1

NUT

for models 733, 833

8шт.

7

3132293R92

ROCKER

ARM ASSY. exhaust, with: Ref. 4, 5, 6

1шт.

8

3055669R1

THRUST WASHER

for models 433, 533, 633

6шт.

8

3055669R1

THRUST WASHER

for models 733, 833

8шт.

9

3055075R2

SPRING

for models 433, 533, 633

3шт.

9

3055075R2

SPRING

for models 733, 833

4шт.

10

3132292R92

ROCKER

ARM ASSY. intake, with: Ref. 4, 5, 6

1шт.

11

3055069R31

SHAFT

for models 433, 533, 633

1шт.

11

3055070R31

SHAFT

for models 733, 833

1шт.

933565R1

PLUG,M14, Conical

2шт.
