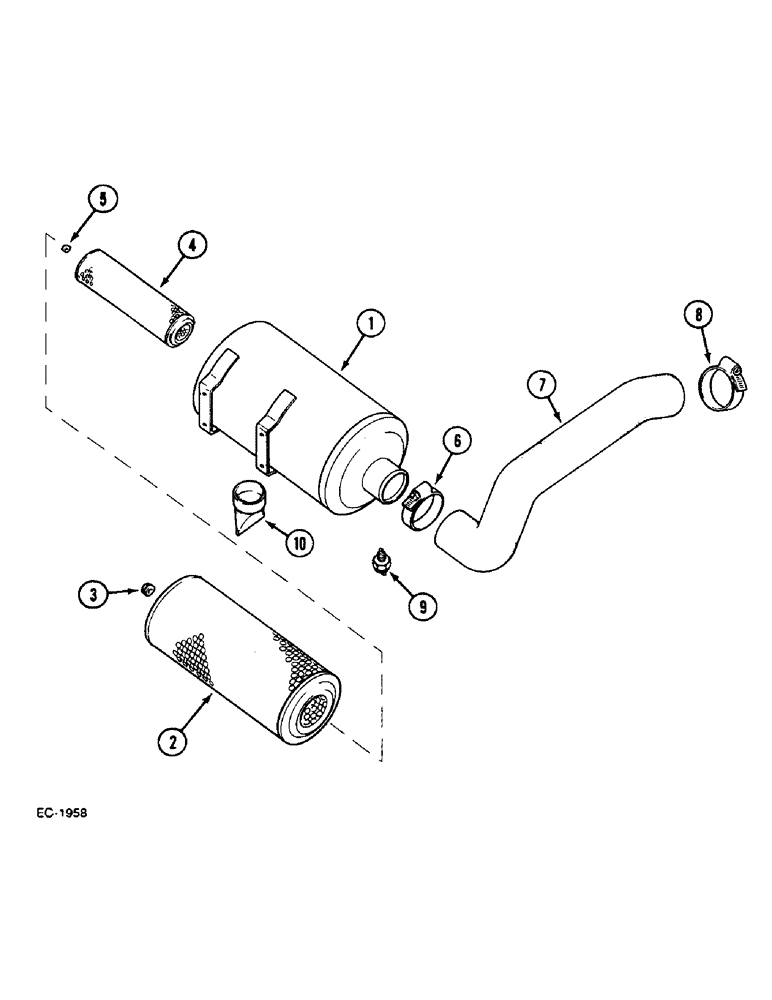

Запчасти Case IH 633 (2-18) - DRY TYPE AIR CLEANER (02) - ENGINE

1

3146926R93

FILTER

CLEANER air, with: Ref. 2, 3, Mann and Hummel, for models 433, 533, 633

1шт.

1

3148163R93

FILTER

CLEANER air, with: Ref. 2, 3, Mann and Hummel, for models 433, 533, 633

1шт.

1

3148136R93

AIR CLEANER

with: Ref. 2, 3, 4, 5, Mann and Hummel, for models 433, 533, 633

1шт.

1

3229544R92

FILTER

CLEANER air, with: Ref. 2, 3, 4, 5, 14, Mann and Hummel, for models 733, 833

1шт.

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

4шт.

1

3216166R93

FILTER

CLEANER air, with: Ref. 2, 3, Lautrette, for models 433, 533, 633

1шт.

2

3146927R1

ELEMENT

Mann and Hummel

1шт.

2

3216167R1

FILTER, ELEMENT

ELEMENT, FILTER Lautrette, for models 433, 533, 633

1шт.

3

3146575R1

NUT

Mann and Hummel

1шт.

3

3216168R1

NUT

Lautrette, for models 433, 533, 633

1шт.

4

3148080R1

AIR FILTER

Mann and Hummel

1шт.

5

934302R1

THIN NUT,Thin, M16 x 1.5, Cl 05

Mann and Hummel

1шт.

6

3220459R1

CLAMP,M60-80, Worm

1шт.

7

3216685R3

INTAKE AIR HOSE,60.00 mm ID x 395.00 mm

1шт.

8

3219245R1

CLAMP,M70-90, Worm

1шт.

9

3224405R91

RESTRICTION SWITCH

SWITCH air cleaner service

1шт.

10

3147008R1

VALVE

for models 733, 833

1шт.

1091387R1

PRODUCT GRAPHIC

not illustrated

1шт.
