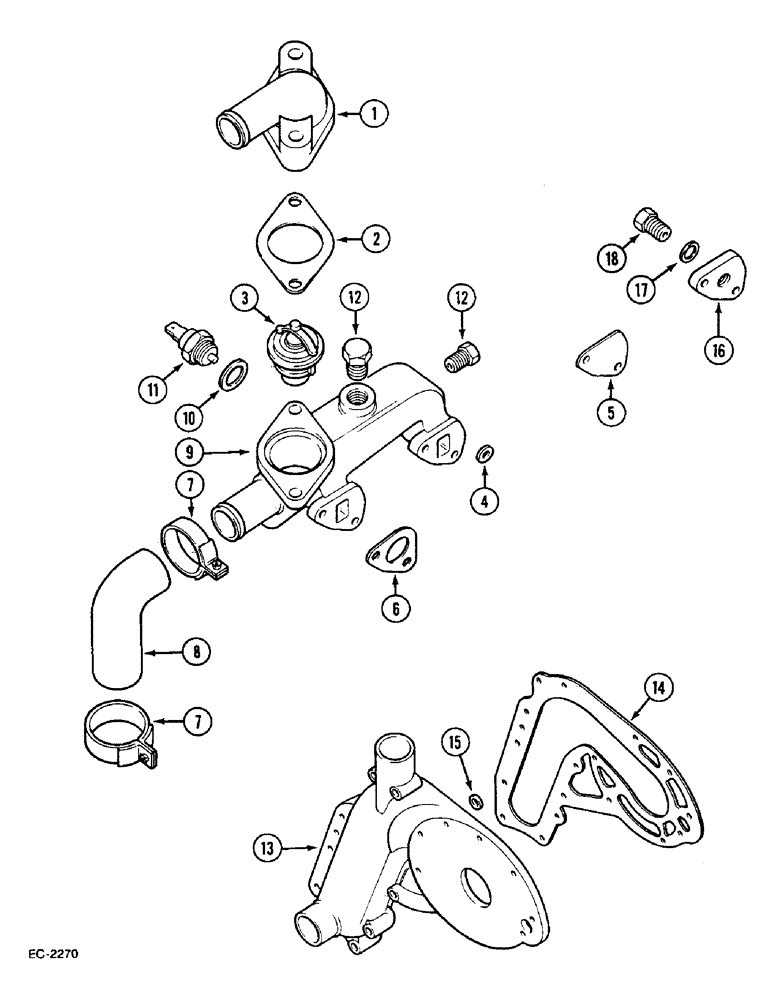

Запчасти Case IH 633 (2-12) - THERMOSTAT, COOLANT MANIFOLD (02) - ENGINE

1

3132718R1

HOUSING

for models 433, 533, 633, 733

1шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

103321

LOCK WASHER,3/8"

2шт.

2

3132143R1

GASKET

1шт.

3

3059676R91

THERMOSTAT

1шт.

4

3136506R1

RING

1шт.

5

3132721R1

COVER

1шт.

6

3055306R1

GASKET

3шт.

7

3218259R1

CLAMP,M40-60, Worm

2шт.

8

3132719R1

HOSE,40.00 mm ID x 65.00 mm

Elbow, For models 433, 533, 733

1шт.

8

3132720R1

HOSE

For models 633, 833

1шт.

9

3218330R1

MANIFOLD

1шт.

10

710097R2

SEALING RING,14mm ID x 18mm OD x 1.5mm Thk

Packing, For models 433, 533, 633, 733

1шт.

10

933610R1

SEALING RING,M14 x 18 x 1.8

For model 833

1шт.

11

3057575R91

TRANSMITTER

VDO

1шт.

12

444630

PLUG,Hex Hd, 1/2"-14

1шт.

13

3136764R1

HOUSING

CHANNEL

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

179826

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

179825

BOLT,Hex, 5/16" - 18 x 1 7/8", Gr 5

1шт.

3050129R1

LOCK WASHER

WASHER lock, 8 mm

5шт.

3218395R1

BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk

Lock

5шт.

3058250R1

WASHER

8 mm

1шт.

9635082

NUT,5/16" - 18, Gr 5

7шт.

14

3136766R2

SEALING WASHER

1шт.

15

3055246R1

GASKET

1шт.

16

3218396R2

FLANGE

COVER for model 733

1шт.

17

933155R1

SEALING RING,M16 x 20 x 1.5

For model 733

1шт.

18

933621R1

PLUG,Hex, M16 x 1.5

for model 733

1шт.

3228418R1

BRACKET

for models 733, 833, not illustrated

2шт.
