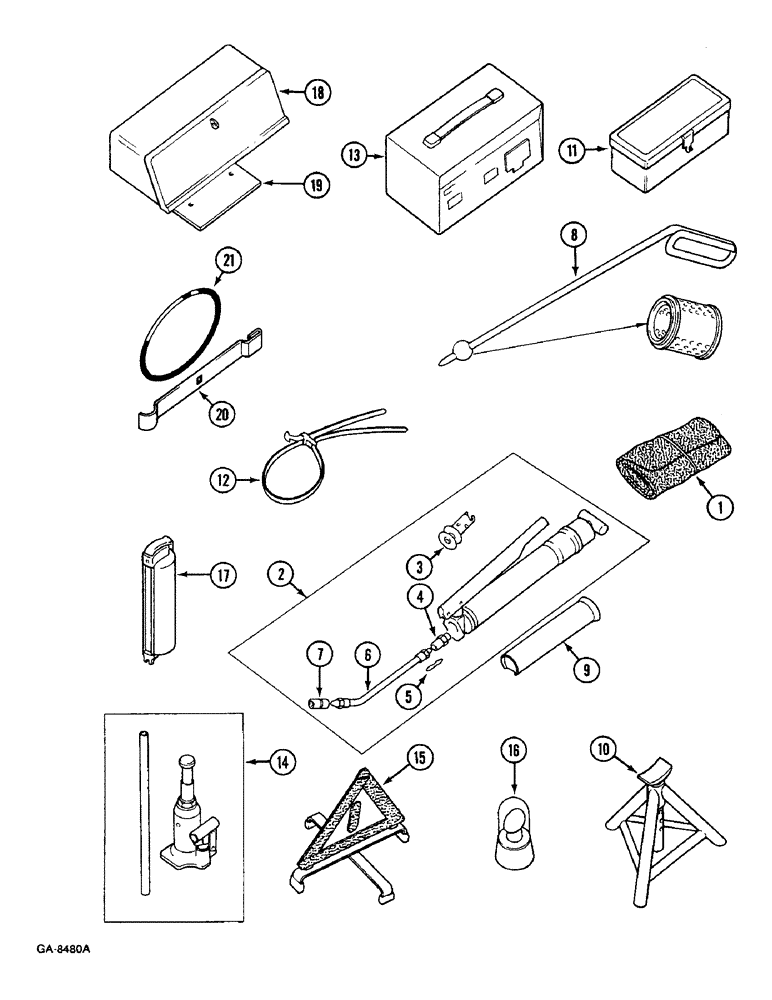

Запчасти Case IH 633 (9-750) - TOOLBOX AND TOOLS (09) - CHASSIS/ATTACHMENTS

1

3147369R91

BAG-TOOL

BAG W/TOOL KIT for models 344, 533, 633, 733

1шт.

With socket wrench 15/16 x 3/4 in, handle, hammer 500 g, pliers, universal, screwdriver, open-end wrench 8/9 mm, 14/15 mm, 20/22 mm, 10/11 mm, 16/17 mm, 24/26 mm, 12/13 mm, 18/19 mm, 27/32 mm

1шт.

1

4316274R1

TOOL ASSY.

BAG

1шт.

With hammer 500 g, pliers, universal, combination, screwdriver 5.5 mm, 8 mm, cross recess, cross spanner 24/27/30/32 mm, open-end wrench 6/7 mm, 8/9 mm, 14/15 mm, 20/22 mm, 10/11 mm, 16/17 mm, 24/27 mm, 12/13 mm, 18/19 mm, 30/32 mm, special wrench 6/7 mm, 8/9 mm, 14/15 mm, 20/22 mm, 10/11 mm, 16/17 mm, 24/27 mm, 12/13 mm, 18/19 mm, 30/32 mm

1шт.

2

3050943R91

GUN, GREASE

GREASE GUN

1шт.

3

3053668R91

PISTON

1шт.

3056700R1

SPARE PART

1шт.

4

3056634R1

VALVE POPPET

1шт.

5

3056633R91

SPRING valve

1шт.

6

3053667R1

TUBE

PIPE 255 mm

1шт.

6

3053666R1

PIPE

89 mm

1шт.

6

3051386R91

HOSE

Lubrication

1шт.

7

3051242R91

NOZZLE CAP

1шт.

8

407073R1

SPARE PART

TOOL, for cleaning dry-type air cleaner element

1шт.

9

3050944R91

LUBRICANT

CARTRIDGE grease

1шт.

10

3078831R1

STAND

1.5 ton

1шт.

10

3078832R1

STAND

3 ton

1шт.

11

4717

KIT, FIRST AID

1шт.

12

3136279R1

TOOL

for oil filter

1шт.

13

3131432R2

CHARGER

5A

1шт.

14

3076573R92

JACK

5 ton

1шт.

14

3978830R1

JACK

12 ton, for models 433, 533, 633, 733

1шт.

15

3134870R1

WARNING SIGN

for models 433, 533, 633, 733

1шт.

16

3134961R1

LIGHT, for models 433, 533, 633, 733

1шт.

17

PD1G

EXTINGUISHER, 1 kg, with pressure lever valve, spraying nozzle and holder, with extinguishing powder 1 kg, for models 433, 533, 633, 733

1шт.

17

PD2GS

EXTINGUISHER, 2 kg, with pressure lever valve, spraying nozzle and holder, with extinguishing powder 2 kg, for models 433, 533, 633, 733

1шт.

17

PD6GM

FIRE EXTINGUISHER

6 kg, with pressure lever valve, spraying nozzle and holder, with extinguishing powder 6 kg, for models 433, 533, 633, 733

1шт.

18

3131836R91

BOX, TOOL

for models 433, 533, 633, 733

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

120384

WASHER,1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

2шт.

933094R1

WASHER

13 mm

2шт.

19

3148807R2

ANGLE

for models 433, 533, 633, 733

1шт.

20

3225817R1

HOLDER

SPARE PART traffic warning

2шт.

21

3225818R1

O-RING

SPARE PART

2шт.
