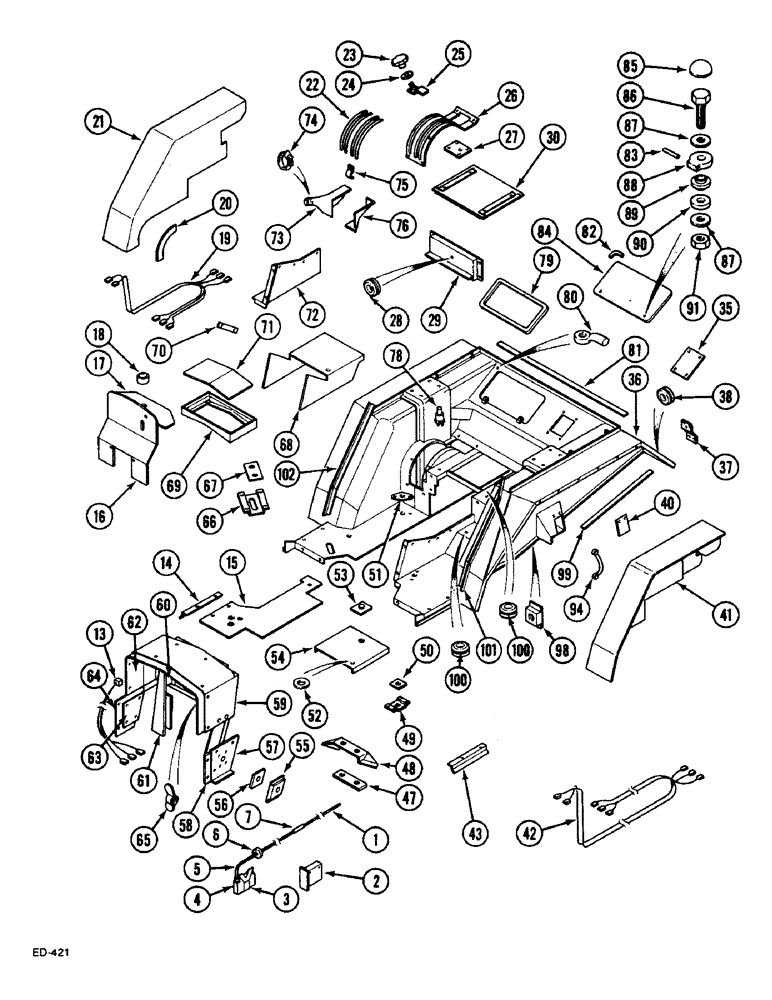

Запчасти Case IH 633 (9-684) - PLATFORM CPTE, DELUXE 85 CAB (09) - CHASSIS/ATTACHMENTS

1284584C92

CAB FLOOR

PLATFORM ASSY., consists of: Ref. 1, 16, 19, 36, 37 - 40, 42, 43, 58, 65, 71, 78 - 102

1шт.

1284545C91

PROTECTIVE COVER

SUPPORT, consists of: Ref. 2 - 7

1шт.

1

1284567C2

PIPE

1шт.

NSS

NOT SOLD SEPARAT

CLIP

1шт.

2

1284680C1

SUPPORT

1шт.

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

2шт.

905358R1

LOCK WASHER,Serr, M6.4

2шт.

3224114R1

SCREW

2шт.

3

3224157R1

SUPPORT

SPARE PART

1шт.

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

2шт.

905358R1

LOCK WASHER,Serr, M6.4

2шт.

3224114R1

SCREW

2шт.

4

3224155R1

FUEL TANK

SPARE PART RESERVOIR

1шт.

5

1284567C1

HOSE

PIPE

1шт.

6

3142744R1

CLAMP

1шт.

7

NSS

NOT SOLD SEPARAT

PIPE

4шт.

8

not used

1шт.

9

not used

1шт.

10

not used

1шт.

11

not used

1шт.

12

not used

1шт.

13

1284669C1

HARNESS

1шт.

14

NSS

NOT SOLD SEPARAT

ANGLE right

1шт.

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

4шт.

905358R1

LOCK WASHER,Serr, M6.4

4шт.

3224114R1

SCREW

4шт.

15

NSS

NOT SOLD SEPARAT

CARPET right

1шт.

16

1284666C1

INSULATOR

SPARE PART

1шт.

17

1284682C1

INSULATOR

1шт.

18

1284681C1

INSULATOR

SPARE PART

1шт.

19

1284662C1

HARNESS

right

1шт.

20

NSS

NOT SOLD SEPARAT

INSULATOR

1шт.

21

NSS

NOT SOLD SEPARAT

INSULATOR right

1шт.

1284563C91

PACKAGE, REPAIR

COVER ASSY., consists of: Ref. 22 - 27

1шт.

22

1284766C1

SEAL

SEAL

4шт.

23

1284764C1

KNOB

1шт.

24

934763R1

WASHER

1шт.

25

1284765C1

STOP

SPARE PART

1шт.

26

NSS

NOT SOLD SEPARAT

COVER

1шт.

905363R1

SELF-TAP SCREW,Pan Hd, M3.5 x 13

M3 x 17 mm

6шт.

926579R1

SCREW

SPARE PART WASHER

6шт.

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

905358R1

LOCK WASHER,Serr, M6.4

2шт.

27

NSS

NOT SOLD SEPARAT

INSULATOR

1шт.

1284683C1

WASHER

2шт.

1284673C1

RUBBER

RIVET

2шт.

NSS

NOT SOLD SEPARAT

PLATE front, consists of: Ref. 28, 29

1шт.

28

NSS

NOT SOLD SEPARAT

RING

1шт.

29

NSS

NOT SOLD SEPARAT

PLATE front

1шт.

905358R1

LOCK WASHER,Serr, M6.4

4шт.

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

4шт.

30

1284558C1

PLATE

1шт.

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

8шт.

934673R1

WASHER,M8.4 x 25 x 2

8 mm

8шт.

934310R1

NUT,M8, Cl 8

8шт.

31

not used

1шт.

32

not used

1шт.

33

not used

1шт.

34

not used

1шт.

35

1284655C1

COVER

rear

1шт.

905351R1

SCREW,Pan HD, M5 x 8mm

M5 x 8 mm

4шт.

3224940R1

CABLE

4шт.

36

1284650C2

PLATFORM ASSY.

1шт.

37

1284518C1

SUPPORT

2шт.

905363R1

SELF-TAP SCREW,Pan Hd, M3.5 x 13

M3 x 17 mm

4шт.

931138R1

SCREW,M5 x 12mm

4шт.

38

1284656C1

GROMMET

RING

2шт.

39

not used

1шт.

40

1284651C1

GASKET

2шт.

1284644C1

RIVET

4шт.

41

NSS

NOT SOLD SEPARAT

INSULATOR right

1шт.

42

1284661C1

HARNESS

SPARE PART left

1шт.

43

NSS

NOT SOLD SEPARAT

ANGLE left

1шт.

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

4шт.

905358R1

LOCK WASHER,Serr, M6.4

4шт.

3224114R1

SCREW

4шт.

44

NSS

NOT SOLD SEPARAT

CARPET left

1шт.

45

not used

1шт.

46

not used

1шт.

NSS

NOT SOLD SEPARAT

BRACKET ASSY., consists of: Ref. 47, 48

1шт.

47

NSS

NOT SOLD SEPARAT

CARPET

1шт.

48

NSS

NOT SOLD SEPARAT

BRACKET

1шт.

905358R1

LOCK WASHER,Serr, M6.4

4шт.

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

4шт.

49

1284673C1

RUBBER

RIVET

1шт.

1284644C1

RIVET

3шт.

50

1284672C1

PAD

1шт.

51

1284674C1

PAD

1шт.

1284644C1

RIVET

3шт.

NSS

NOT SOLD SEPARAT

CHANNEL ASSY., consists of: Ref. 52 - 54

1шт.

52

3220289R1

GROMMET

RING

1шт.

53

NSS

NOT SOLD SEPARAT

CARPET

1шт.

54

NSS

NOT SOLD SEPARAT

CHANNEL

1шт.

905358R1

LOCK WASHER,Serr, M6.4

4шт.

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

4шт.

NSS

NOT SOLD SEPARAT

SEAL ASSY., consists of: Ref. 55, 56

1шт.

55

NSS

NOT SOLD SEPARAT

SUPPORT

1шт.

56

NSS

NOT SOLD SEPARAT

SEAL

1шт.

NSS

NOT SOLD SEPARAT

PANEL ASSY., left, consists of: Ref. 55 - 58

1шт.

57

NSS

NOT SOLD SEPARAT

PANEL left

1шт.

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

3шт.

905358R1

LOCK WASHER,Serr, M6.4

4шт.

934850R1

WASHER

6 mm

3шт.

931951R1

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

4шт.

58

NSS

NOT SOLD SEPARAT

SEAL

1шт.

1284667C1

SHROUD ASSY.

SPARE PART consists of: Ref. 59 - 62

1шт.

59

NSS

NOT SOLD SEPARAT

PANEL ASSY.

1шт.

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

7шт.

905358R1

LOCK WASHER,Serr, M6.4

7шт.

3226057R1

NO LONGER SERVICED

SCREW

7шт.

60

NSS

NOT SOLD SEPARAT

SEAL

1шт.

61

NSS

NOT SOLD SEPARAT

SEAL

2шт.

62

NSS

NOT SOLD SEPARAT

SEAL

1шт.

NSS

NOT SOLD SEPARAT

PANEL ASSY., right, consists of: Ref. 63, 64

1шт.

63

NSS

NOT SOLD SEPARAT

SEAL

1шт.

64

NSS

NOT SOLD SEPARAT

PANEL right

1шт.

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

3шт.

905358R1

LOCK WASHER,Serr, M6.4

4шт.

934850R1

WASHER

6 mm

3шт.

931951R1

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

4шт.

65

1284668C1

CLAMP TOOL

TERMINAL

1шт.

66

1284671C1

SUPPORT ASSY.

1шт.

1284644C1

RIVET

4шт.

67

1284670C1

PAD

1шт.

68

NSS

NOT SOLD SEPARAT

CHANNEL

1шт.

69

NSS

NOT SOLD SEPARAT

BOX

1шт.

1284644C1

RIVET

4шт.

905363R1

SELF-TAP SCREW,Pan Hd, M3.5 x 13

M3 x 17 mm

3шт.

70

NSS

NOT SOLD SEPARAT

BAR

1шт.

71

NSS

NOT SOLD SEPARAT

LINING

1шт.

72

NSS

NOT SOLD SEPARAT

CHANNEL right

1шт.

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

2шт.

3217187R1

SEALING WASHER,6mm ID x 18mm OD x 1mm Thk

2шт.

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

5шт.

1284562C91

BELLOWS

INSULATOR ASSY., consists of: Ref. 73, 74, 76

1шт.

73

NSS

NOT SOLD SEPARAT

INSULATOR

1шт.

74

3142744R1

CLAMP

1шт.

75

1284574C1

CLIP

3шт.

905363R1

SELF-TAP SCREW,Pan Hd, M3.5 x 13

M3 x 17 mm

3шт.

76

NSS

NOT SOLD SEPARAT

SUPPORT

1шт.

77

not used

1шт.

78

1284736C1

PUMP

1шт.

79

1284649C1

GRIP

SEAL

1шт.

80

1284643C1

STOP

1шт.

1284644C1

RIVET

1шт.

3217187R1

SEALING WASHER,6mm ID x 18mm OD x 1mm Thk

1шт.

81

1284657C1

SEAL

1шт.

82

1284658C1

SEAL

40 mm

1шт.

83

932292R1

LOCK PIN,M6 x 50, Slotted

1шт.

84

1284659C1

GLASS

1шт.

85

3224127R1

CAP

2шт.

86

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

87

3224059R1

WASHER

4шт.

88

1284660C1

HINGE

2шт.

89

3225452R1

SPACER

2шт.

90

3137761R1

RUBBER WASHER

2шт.

91

3225260R1

NUT

2шт.

92

not used

1шт.

93

not used

1шт.

94

1284751C1

HARNESS

1шт.

3216462R1

SCREW

2шт.

1284654C1

WASHER

2шт.

95

not used

1шт.

96

not used

1шт.

97

not used

1шт.

98

1284665C1

CAP

2шт.

99

NSS

NOT SOLD SEPARAT

SEAL

2шт.

100

3220298R1

STRIP

RING

2шт.

101

1284663C1

STOP

left

1шт.

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

6шт.

905358R1

LOCK WASHER,Serr, M6.4

6шт.

3224114R1

SCREW

6шт.

102

1284664C1

STOP

SPARE PART right

1шт.

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

6шт.

905358R1

LOCK WASHER,Serr, M6.4

6шт.

3224114R1

SCREW

6шт.
