Запчасти Case IH 633 (9-624) - FRONT SPLASH SHIELDS (09) - CHASSIS/ATTACHMENTS

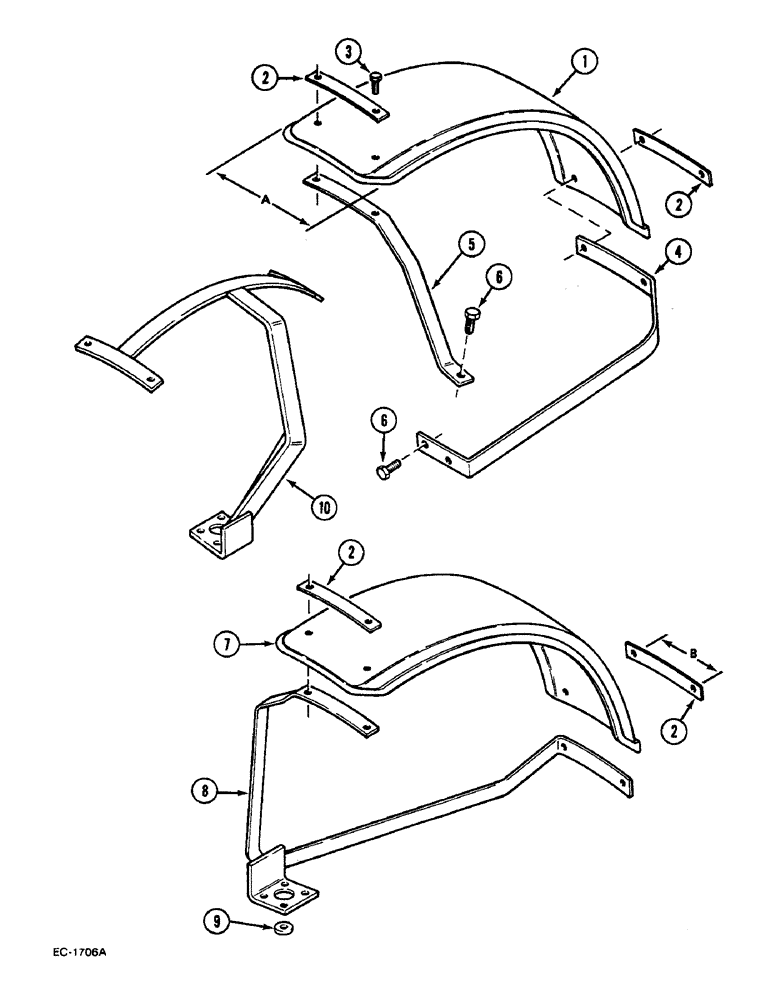

Схема запчастей Case IH 633 - (9-624) - FRONT SPLASH SHIELDS (09) - CHASSIS/ATTACHMENTS
4
7
10
3
6
2
1
5
2
9
6
2
8
2

Артикул

Название

Примечание

Количество

1

3216242R1

SPLASH SHIELD

A - 178 mm, for models 433, 533, 633, 733

2шт.

For tubeless tires 6.00 x 16, 6.50 x 16

1шт.

1

3224365R1

FENDER

SHIELD A - 225 mm, for models 433, 533, 633, 733

2шт.

For tubeless tires 7.50 x 16

1шт.

2

1328213C1

SHEET

PLATE B - 80 mm, for models 433, 533, 633, 733

4шт.

2

1328215C1

SHEET

PLATE B - 160 mm, 4-wheel drive tractors, for models 533, 633, 733, 833

4шт.

2

1287716C1

LATCH

PLATE upper, for models 733, 833

2шт.

For tubeless tires 12.5 x 20, 14.5 x 20

1шт.

3

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

8шт.

9413946

LOCK NUT,1/4"-20, GA

8шт.

3

905214R1

SCREW,Pan Slotted Machine, M8 x 25mm, Cl 4.8

for models 733, 833

8шт.

For tubeless tires 12.5 x 20, 14.5 x 20

1шт.

3058250R1

WASHER

8 mm, for models 733, 833

4шт.

717457R1

NUT,M8 x 1.25, Thin

M8, for models 733, 833

8шт.

4

3216243R1

SUPPORT

left, for models 433, 533, 633, 733

1шт.

For tubeless tires 6.00 x 16, 6.50 x 16

1шт.

4

3216244R1

SUPPORT

right, for models 433, 533, 633, 733

1шт.

For tubeless tires 6.00 x 16, 6.50 x 16

1шт.

4

3220388R1

SUPPORT

left, for models 433, 533, 633, 733

1шт.

For tubeless tires 7.50 x 16

1шт.

4

3220389R1

SUPPORT

right, for models 433, 533, 633, 733

1шт.

For tubeless tires 7.50 x 16

1шт.

5

3216247R1

SUPPORT

left, for models 433, 533, 633, 733

1шт.

For tubeless tires 6.00 x 16, 6.50 x 16, axle ground clearance 18 in (457 mm)

1шт.

5

3216248R1

SUPPORT

right, for models 433, 533, 633, 733

1шт.

For tubeless tires 6.00 x 16, 6.50 x 16, axle ground clearance 18 in (457 mm)

1шт.

5

3220390R1

SUPPORT

left, for models 433, 533, 633, 733

1шт.

For tubeless tires 7.50 x 16, axle ground clearance 18 in (457 mm)

1шт.

5

3220391R1

SUPPORT

right, for models 433, 533, 633, 733

1шт.

For tubeless tires 7.50 x 16, axle ground clearance 18 in (457 mm)

1шт.

5

3216245R1

SUPPORT

left, for models 433, 533, 633, 733

1шт.

For tubeless tires 6.00 x 16, 6.50 x 16, axle ground clearance 20 in (508 mm)

1шт.

5

3216246R1

SUPPORT

SPARE PART right, for models 433, 533, 633, 733

1шт.

For tubeless tires 6.00 x 16, 6.50 x 16, axle ground clearance 20 in (508 mm)

1шт.

5

3220439R1

SUPPORT

left, for models 433, 533, 633, 733

1шт.

For tubeless tires 7.50 x 16, axle ground clearance 20 in (508 mm)

1шт.

5

3220440R1

SUPPORT

right, for models 433, 533, 633, 733

1шт.

For tubeless tires 7.50 x 16, axle ground clearance 20 in (508 mm)

1шт.

6

179881

BOLT,1/2" - 13 x 1", Gr 5

For models 433, 533, 633, 733

6шт.

7

3229596R1

FENDER

SHIELD 30 km, 4-wheel drive tractors, transmission versions 16+8/8+4, 10.5 x 18, 10.5 x 20, 7.5 x 20, for tubeless tires 16+8/8+4, 10.5 x 18, 10.5 x 20, 7.5 x 20, for models 533, 633, 733, 833

2шт.

7

3216323R1

FENDER

SHIELD, 4-wheel drive tractors, for tubeless tires 10.5 x 18, 10.5 x 20, for models 633, 733

2шт.

7

3136568R2

FENDER

SHIELD, 4-wheel drive tractors, for tubeless tires 8.3 x 24, 9.5 x 24, for models 633, 733, 833

2шт.

7

3141220R2

FENDER

SHIELD splash, 4-wheel drive tractors, for tubeless tires 11.2 x 24, for models 733, 833

2шт.

7

1285135C1

FENDER

SHIELD, for models 733, 833

2шт.

For tubeless tires 12.5 x 20, 14.5 x 20

1шт.

8

3216324R91

SUPPORT

left, for models 533, 633, 733, 833

1шт.

8

3216325R91

SUPPORT

right, for models 533, 633, 733, 833

1шт.

8

3404156R1

SUPPORT

left, used with 3136568R2, for models 633, 733, 833

1шт.

8

3404157R1

SUPPORT

right, used with 3136568R2, for models 633, 733, 833

1шт.

931351R1

BOLT,Hex, M12 x 1.75 x 55mm, Cl 8.8

for models 533, 633, 733, 833

8шт.

931132R1

BOLT,Hex, M14 x 2 x 55mm, Cl 10.9

for models 633, 733, 833

8шт.

9

3131645R1

SPACER

for models 533, 633, 733, 833

8шт.

10

3404161R1

SUPPORT

left, for models 533, 633, 733, 833

1шт.

10

3404162R1

SUPPORT

right, for models 533, 633, 733, 833

1шт.

931132R1

BOLT,Hex, M14 x 2 x 55mm, Cl 10.9

for models 533, 633, 733, 833

8шт.

3131645R1

SPACER

for models 533, 633, 733, 833

8шт.

Выбрано товаров: 56
