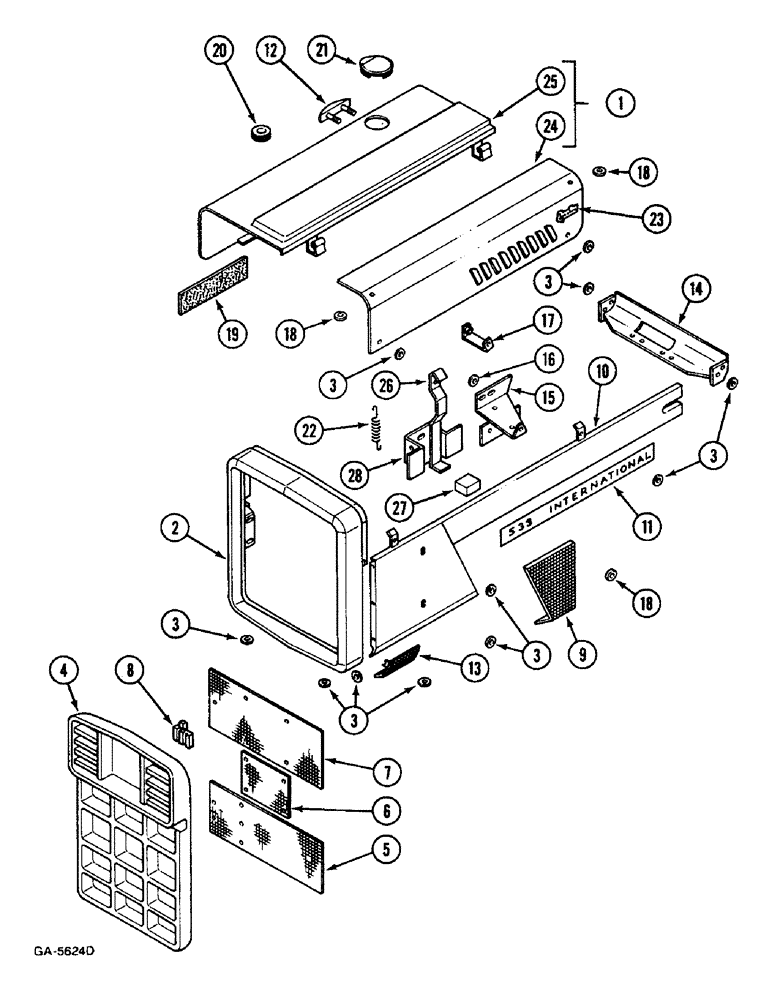

Запчасти Case IH 633 (9-612) - ENGINE HOOD, RADIATOR GRILLE (09) - CHASSIS/ATTACHMENTS

1

3216670R91

ENGINE HOOD

ASSY., for models 433, 533, 633, 733

1шт.

931377R1

SCREW,Slotted Cheese, M4 x 0.7 x 12mm, Cl 8.8

M4 x 12 mm, for models 433, 533, 633, 733

2шт.

933763R1

NUT

M4, for models 433, 533, 633, 733

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

for models 433, 533, 633, 733

2шт.

446130

WASHER,#8

4.3 x 10 x 1 mm, for models 433, 533, 633, 733

2шт.

2

3217842R91

SUPPORT

for models 433, 533, 633, 733

1шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

For models 433, 533, 633, 733

2шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

6шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

6шт.

120392

WASHER,1/4", SAE

(7 x 16 x 1.3 mm)

6шт.

3

3058250R1

WASHER

8 mm

16шт.

3142544R1

GRILLE ASSY., consists of: Ref. 4 - 8, for models 433, 533, 633, 733

1шт.

4

3142548R1

GRILLE

for models 433, 533, 633, 733

1шт.

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

934782R1

SELF-TAP SCREW,Hex, M5 x 10mm

M5 x 10 mm

16шт.

887416R1

WASHER

5 x 10 x 1 mm

18шт.

120392

WASHER,1/4", SAE

(7 x 16 x 1.3 mm)

2шт.

5

3142545R1

GRATE

SCREEN filter, for models 433, 533, 633, 733

1шт.

6

3142546R1

GRILLE ASSY

SCREEN filter, for models 433, 533, 633, 733

1шт.

7

3142547R1

GRATE

SCREEN filter, for models 433, 533, 633, 733

1шт.

8

120397C1

EMBLEM CASE/IH

for models 433, 533, 633, 733

1шт.

931373R1

SELF-TAP SCREW,Slotted Pan Hd, M4.8 x 9.5

2шт.

9

3148406R1

GRILLE

left, for models 433, 533, 633, 733

1шт.

9

3148407R1

GRILLE

right, for models 433, 533, 633, 733

1шт.

931377R1

SCREW,Slotted Cheese, M4 x 0.7 x 12mm, Cl 8.8

M4 x 12 mm

4шт.

931330R1

SCREW,M6 x 1 x 12mm, Cl 8.8

4шт.

933019

NUT M4

4шт.

933763R1

NUT

M4

4шт.

10

3148402R91

PANEL, SIDE

left, for models 433, 533, 633

1шт.

10

3226859R92

PANEL, SIDE

left, for models 733, 833

1шт.

10

3217575R91

PANEL

right, for models 433, 533, 633

1шт.

10

3226875R91

PANEL right, for models 733, 833

1шт.

10

3216686R91

FENDER

PANEL ASSY., right, with Ref. 22, 26 - 28, for models 433, 533, 633

1шт.

10

3226860R91

PANEL ASSY.

right, with Ref. 22, 26 - 28, for models 733, 833

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

8шт.

932231R1

LOCK PIN,M4 x 36, Slotted

2шт.

11

1091196R2

PRODUCT GRAPHIC

International 433, left

1шт.

11

1091202R2

PRODUCT GRAPHIC

International 433, left, French version

1шт.

11

1091198R2

PRODUCT GRAPHIC

International 533, left

1шт.

11

1091204R2

PRODUCT GRAPHIC

International 533, left, French version

1шт.

11

1091200R2

PRODUCT GRAPHIC

International 633, left

1шт.

11

1091206R2

DECAL

PRODUCT GRAPHIC International 633, left, French version

1шт.

11

1091566R2

DECAL

PRODUCT GRAPHIC International 733, left

1шт.

11

1091934R2

PRODUCT GRAPHIC

International 833, left, version without cab

1шт.

11

1284828C1

DECAL

PRODUCT GRAPHIC, International 833, left, version with cab

1шт.

11

1091195R2

PRODUCT GRAPHIC

International 433, right

1шт.

11

1091201R2

PRODUCT GRAPHIC

International 433, right, French version

1шт.

11

1091197R2

PRODUCT GRAPHIC

International 533, right

1шт.

11

1092203R2

PRODUCT GRAPHIC, International 533, right, French version

1шт.

11

1091199R2

PRODUCT GRAPHIC

International 633, right

1шт.

11

1091205R2

PRODUCT GRAPHIC

International 633, right, French version

1шт.

11

1091567R1

PRODUCT GRAPHIC

International 733, right

1шт.

11

1091935R2

PRODUCT GRAPHIC

International 833, right, version without cab

1шт.

11

1284829C1

PRODUCT GRAPHIC

International 833, right, version with cab

1шт.

12

3141000R1

HANDLE

1шт.

933187R1

NUT,M5, Cl 8

2шт.

933844R1

LOCK WASHER,M5

2шт.

13

3216097R1

GRATE

SCREEN filter, left

1шт.

13

3216098R1

GRATE

SCREEN filter, right

1шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

2шт.

14

3229292R91

BRACKET

SPARE PART

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

4шт.

15

3144272R91

SUPPORT

left, used with 3144227R91

1шт.

15

3224903R92

BRACKET

SUPPORT left, used with 3218705R93 / 3138816R93

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

120376

NUT,5/16"-18, G5

1шт.

16

20285H

WASHER

10 x 19 x 3 mm

2шт.

17

786852R1

BRACKET

SUPPORT right, for models 433, 533

1шт.

17

3216087R1

SUPPORT

right, for model 633

1шт.

17

3233873R1

SUPPORT

right, for models 733, 833

1шт.

120376

NUT,5/16"-18, G5

1шт.

18

933971R1

WASHER

4 x 8 x 0.5 mm

1шт.

19

3216698R2

PLATE

95 x 300 x 3 mm

1шт.

20

3216099R1

WASHER

SPARE PART

1шт.

21

3216931R1

COVER

1шт.

22

3216688R2

SPRING

1шт.

23

1091353R1

PRODUCT GRAPHIC, Synchron, left

1шт.

23

1091354R1

PRODUCT GRAPHIC, Synchron, French version, for models 433, 533, 633, 733

1шт.

24

3224749R92

HOOD ASSY.

left, for models 433, 533, 633

1шт.

24

3226861R92

HOOD ASSY.

left, for models 733, 833

1шт.

25

3224748R92

HOOD ASSY.

right, for models 433, 533, 633

1шт.

25

3226862R92

HOOD ASSY.

right, for models 733, 833

1шт.

934697R1

COTTER PIN,M6.3 x 56

6.3 x 56 mm

2шт.

26

3216679R91

LATCH

1шт.

27

3137539R2

KNOB

1шт.

28

3216687R1

GUIDE

1шт.
