Запчасти Case IH 633 (9-586) - THREE-POINT-LINKAGE (09) - CHASSIS/ATTACHMENTS

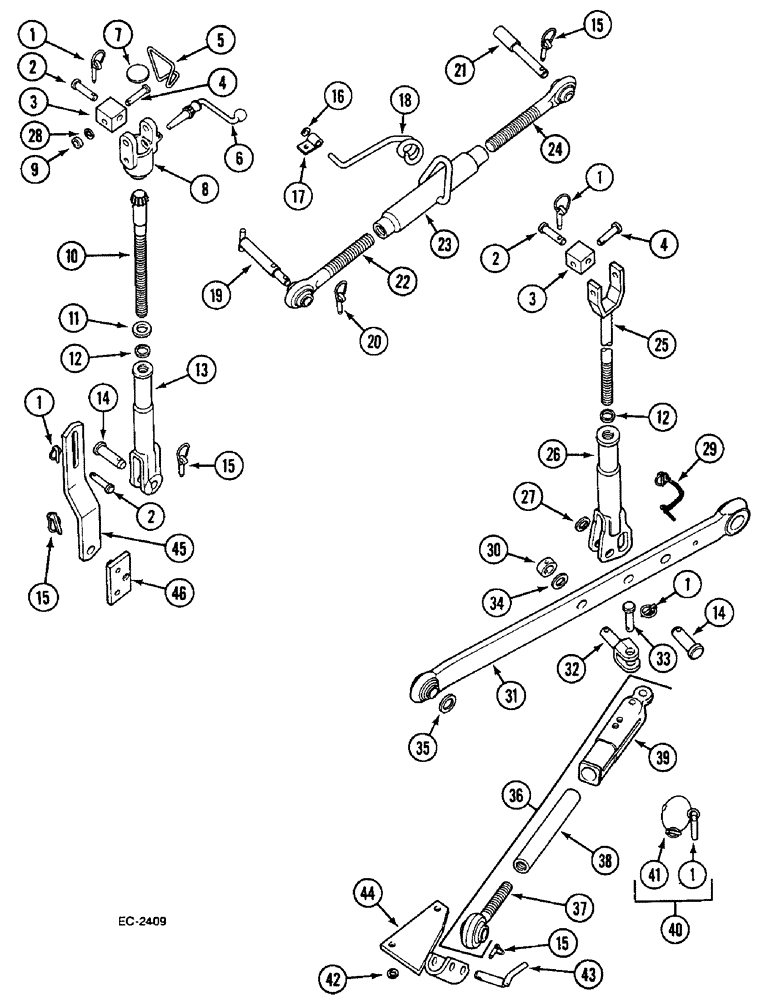

Схема запчастей Case IH 633 - (9-586) - THREE-POINT-LINKAGE (09) - CHASSIS/ATTACHMENTS
27
46
2
4
3
31
38
15
39
2
40
44
20
45
7
16
14
42
1
5
21
29
18
35
1
15
8
41
10
14
32
28
43
23
33
25
12
1
1
11
4
12
13
37
9
26
19
15
34
3
2
17
1
24
6
15
36
30
22

Артикул

Название

Примечание

Количество

3148916R92

LIFTING ROD

consists of Ref. 1 - 13, for models 433, 533, 633, 733, 833

1шт.

1

3057333R91

LINCH PIN,5mm OD

4.5 mm, for models 433, 533, 633, 733, 833

1шт.

2

3148006R1

PIN

for models 433, 533, 633, 733, 833

4шт.

3

3224992R1

BRACKET, PIVOT

PIVOT BRACKET SWIVEL, for models 433, 533, 633, 733, 833

2шт.

4

3057337R1

PIN

for models 433, 533, 633, 733, 833

2шт.

432-1216

COTTER PIN,3/16" x 1"

For models 433, 533, 633, 733, 833

2шт.

5

3059119R1

SPRING LOCK

for models 433, 533, 633, 733, 833

1шт.

6

3057336R11

LEVER

for models 433, 533, 633, 733, 833

1шт.

435-1614

GROOVED PIN,3/16" x 7/8", Type A

for models 433, 533, 633, 733, 833

1шт.

7

172580

PLUG,Exp, 1 7/8"

for models 433, 533, 633, 733, 833

1шт.

8

3057334R3

HOUSING

for models 433, 533, 633, 733, 833

1шт.

3229744R1

LUBE NIPPLE

LUBRICATOR, for models 433, 533, 633, 733, 833

1шт.

9

704203R1

COLLAR

for models 433, 533, 633, 733, 833

1шт.

10

3058012R1

SET SCREW

SPINDLE, for models 433, 533, 633, 733, 833

1шт.

932742R1

LOCK PIN,M5 x 26, Slotted

for models 433, 533, 633, 733, 833

1шт.

11

3224277R1

RING

for models 433, 533, 633, 733, 833

1шт.

12

3051218R1

WASHER

for models 433, 533, 633, 733, 833

2шт.

13

3145154R2

FORK

right, for models 433, 533, 633, 733, 833

1шт.

3229744R1

LUBE NIPPLE

LUBRICATOR, for models 433, 533, 633, 733, 833

1шт.

14

3134910R2

PIN

for models 433, 533, 633, 733, 833

2шт.

15

3057346R11

LINCH PIN

11 mm, for models 433, 533, 633, 733, 833

1шт.

16

934065R1

WASHER,M10.5

10 mm, for models 433, 533, 633, 733, 833

1шт.

17

3057376R1

HINGE

for models 433, 533, 633, 733, 833

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

For models 433, 533, 633, 733, 833

1шт.

103321

LOCK WASHER,3/8"

For models 433, 533, 633, 733, 833

1шт.

18

3058490R2

CLAMP

for models 433, 533, 633, 733, 833

1шт.

103384

COTTER PIN,1/8" x 3/4"

For models 433, 533, 633, 733, 833

1шт.

19

3137658R11

PIN

for models 433, 533, 633, 733, 833

1шт.

20

3057369R91

LINCH PIN

for models 433, 533, 633, 733, 833

1шт.

21

3137660R1

PIN,25.4mm OD x 175mm L

for models 433, 533, 633, 733, 833

1шт.

22

700407R21

LINK

upper, left, for models 433, 533, 633, 733, 833

1шт.

23

3057371R91

TURNBUCKLE

for models 433, 533, 633, 733, 833

1шт.

25984R1

NUT,1 1/4"-7, G8

for models 433, 533, 633, 733, 833

1шт.

24

3057373R91

UPPER LINK

right, for models 433, 533, 633, 733, 833

1шт.

25

3216058R91

ROD,1" - 8

left, for models 433, 533, 633, 733, 833

1шт.

26

3216060R2

FORK,1" - 8

for models 433, 533, 633, 733, 833

1шт.

3229744R1

LUBE NIPPLE

LUBRICATOR, for models 433, 533, 633, 733, 833

1шт.

27

933807R1

WASHER,M23 ID x 39 OD x 3 Thk

for models 433, 533, 633, 733, 833

1шт.

28

N32983

WASHER

15 mm, for models 433, 533, 633, 733, 833

1шт.

28

934961R1

SHIM,M16 ID x 22 OD x .5 Thk

16 x 22 x 0.5 mm, for models 433, 533, 633, 733, 833

1шт.

29

3057364R94

PIN

ASSY., for models 433, 533, 633, 733, 833

2шт.

3059364R1

PIN

cotter, 5/16 x 40 mm, for models 433, 533, 633, 733, 833

2шт.

30

3233134R1

BUSHING

for models 433, 533, 633, 733, 833

2шт.

Q2933

LOCK PIN,M8 x 40, Slotted

For models 433, 533, 633, 733, 833

2шт.

31

3233151R91

LOWER LINK

for models 433, 533, 633, 733, 833

2шт.

31

3405841R91

LOWER LINK

left, for models 633, 733, 833

1шт.

Chassis Serial Number: Model 633: 029190 - ; Model 733: 007921 - ; Model 833: 001773 -

1шт.

31

3405843R91

LOWER LINK

right, for models 633, 733, 833

1шт.

Chassis Serial Number: Model 633: 029190 - ; Model 733: 007921 - ; Model 833: 001773 -

1шт.

32

3233141R1

FORK

PIN, for models 433, 533, 633, 733, 833

2шт.

33

3226000R1

PIN,16mm OD x 60mm L

for models 433, 533, 633, 733, 833

2шт.

34

3233133R1

WASHER

for models 433, 533, 633, 733, 833

1шт.

35

722107R1

WASHER

for models 433, 533, 633, 733, 833

2шт.

36

3233144R91

STABILIZER

for models 433, 533, 633, 733, 833

2шт.

37

3146372R92

END,1" - 8

ROD, for models 433, 533, 633, 733, 833

2шт.

38

3140714R2

ROD

ROD, 245 mm, for models 433, 533, 633, 733, 833

2шт.

39

3233145R1

HOUSING

for models 433, 533, 633, 733, 833

2шт.

932724R1

LOCK PIN,M7 x 45, Slotted

for models 433, 533, 633, 733, 833

2шт.

932759R1

LOCK PIN,M12 x 45, Slotted

For models 433, 533, 633, 733, 833

2шт.

40

3140715R91

SPLIT PIN/SAFETY PIN,12.7mm OD x 180mm L

for models 433, 533, 633, 733, 833

2шт.

41

3141344R1

ROPE

for models 433, 533, 633, 733, 833

2шт.

42

3221263R1

WASHER

for models 433, 533, 633, 733, 833

4шт.

43

3140011R21

CROSS PIN,19mm OD x 120mm L

for models 433, 533, 633, 733, 833

2шт.

44

3233148R1

BRACKET

left, for models 433, 533, 633, 733

1шт.

Chassis Serial Number: Model 633: - 027409; Model 733: - 005980

1шт.

44

3233149R1

BRACKET

right, for models 433, 533, 633, 733

1шт.

Chassis Serial Number: Model 633: - 027409; Model 733: - 005980

1шт.

44

3404797R1

BRACKET

left, for models 433, 533, 633, 733, 833

1шт.

Chassis Serial Number: Model 633: 027410 - 029189; Model 733: 005981 - 007920; Model 833: 001000 - 001772

1шт.

44

3404798R1

BRACKET

right, for models 433, 533, 633, 733, 833

1шт.

Chassis Serial Number: Model 633: 027410 - 029189; Model 733: 005981 - 007920; Model 833: 001000 - 001772

1шт.

44

82019C1

BRACKET

left, for models 433, 533, 633, 733, 833

1шт.

Chassis Serial Number: Model 633: 029190 - ; Model 733: 007921 - ; Model 833: 001773 -

1шт.

44

82020C1

BRACKET

right, for models 433, 533, 633, 733, 833

1шт.

Chassis Serial Number: Model 633: 029190 - ; Model 733: 007921 - ; Model 833: 001773 -

1шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

for models 433, 533, 633, 733, 833

4шт.

102639

NUT,5/8"-11, G5

For models 433, 533, 633, 733, 833

4шт.

45

3134914R2

ARM

for models 433, 533, 633, 733, 833

2шт.

46

3233143R1

SUPPORT

SPARE PART right, for models 433, 533, 633, 733, 833

1шт.

46

3233142R1

SUPPORT

SPARE PART left, for models 433, 533, 633, 733, 833

1шт.

271560

PANEL,Hex, 5/8" - 11 x 1 3/4", Gr 5

For models 433, 533, 633, 733, 833

4шт.

103325

LOCK WASHER,5/8"

For models 433, 533, 633, 733, 833

4шт.

Выбрано товаров: 82
