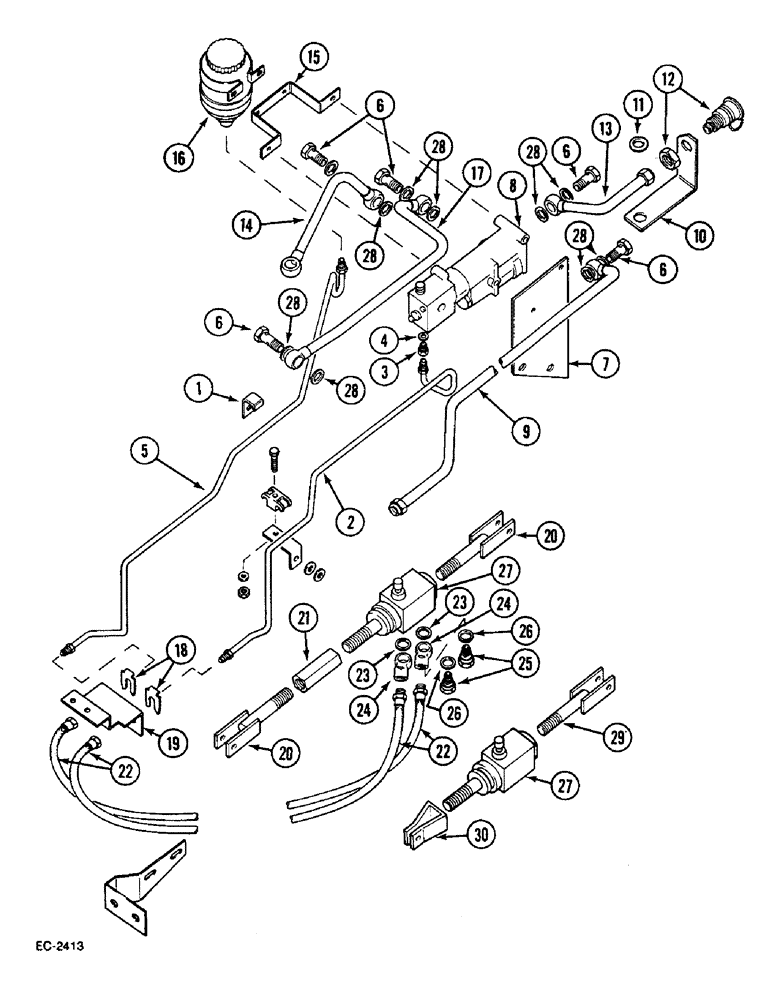

Запчасти Case IH 633 (8-554) - HYDRAULIC TRAILER BRAKE (08) - HYDRAULICS

1

3216779R1

CLAMP

SPARE PART SUPPORT

1шт.

2

3148516R1

TUBE,540, 184 mm Length

1шт.

3

3141145R1

UNION

1шт.

4

933697R1

SEALING RING,M10 x 13.5 x 1

1шт.

5

3148509R1

TUBE

1шт.

6

930259R1

BANJO BOLT,M18 x 1 x 42mm

hollow

5шт.

7

3148518R1

PLATE

1шт.

179829

BOLT,Hex, 5/16" - 18 x 2 3/4", Gr 5

2шт.

179889

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

103320

LOCK WASHER,5/16"

2шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

5/16 in

2шт.

8

3148517R92

VALVE

ASSY., with 3147107R1

1шт.

3147107R1

BREATHER

1шт.

9

3148523R1

TUBE,610, 124 mm Length

1шт.

10

3216695R1

ANGLE

1шт.

354921R1

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 8

3/8 x 13 mm

1шт.

11

not used

1шт.

12

3131463R91

QUICK MALE COUPLING

ASSY., "Arelco"

1шт.

12

3142332R91

COUPLING, BREAK AWAY

ASSY., "Eljika", optional

1шт.

3147728R1

PLUG

CAP

1шт.

13

3148520R2

TUBE,85, 73 mm Length

PIPE

1шт.

14

3148521R1

TUBE

1шт.

15

3148508R1

SUPPORT ASSY.

1шт.

931618R1

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

103320

LOCK WASHER,5/16"

1шт.

16

3148797R1

CONTAINER

RESERVOIR

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

103319

LOCK WASHER,1/4"

2шт.

109084

NUT,1/4"-20, G5

2шт.

17

3148522R1

TUBE

1шт.

18

897786H1

BRACKET

2шт.

19

3148519R1

BRACKET

SPARE PART SUPPORT

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

103319

LOCK WASHER,1/4"

2шт.

109084

NUT,1/4"-20, G5

2шт.

20

3148513R92

YOKE

UNIVERSAL JOINT YOKE

2шт.

Version Without Cab

1шт.

933318R1

NUT,M12 x 1.75, G5

M12, LH Thread

2шт.

21

934329R1

TURNBUCKLE,M12 x 55

TURNBUCKLE

2шт.

Version Without Cab

1шт.

22

3148507R1

HOSE

2шт.

23

718743R1

SEALING RING,M10 x 16 x 1

2шт.

24

3148799R1

UNION

2шт.

25

3148800R1

UNION

SCREW, hollow

2шт.

26

934005R1

SEALING RING,12mm ID x 18mm OD x 1.5mm Thk

2шт.

27

3148801R1

VALVE

ASSY., "Bosch"

1шт.

934330R1

NUT,M12 x 1.7, G5, LH

M12

1шт.

28

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

9шт.

29

1285115C1

ROD ASSY.

SPARE PART

1шт.

Version With Cab

1шт.

933318R1

NUT,M12 x 1.75, G5

M12

1шт.

30

1285117C1

CLEVIS

ASSY.

1шт.

Version With Cab

1шт.

933318R1

NUT,M12 x 1.75, G5

M12

1шт.
