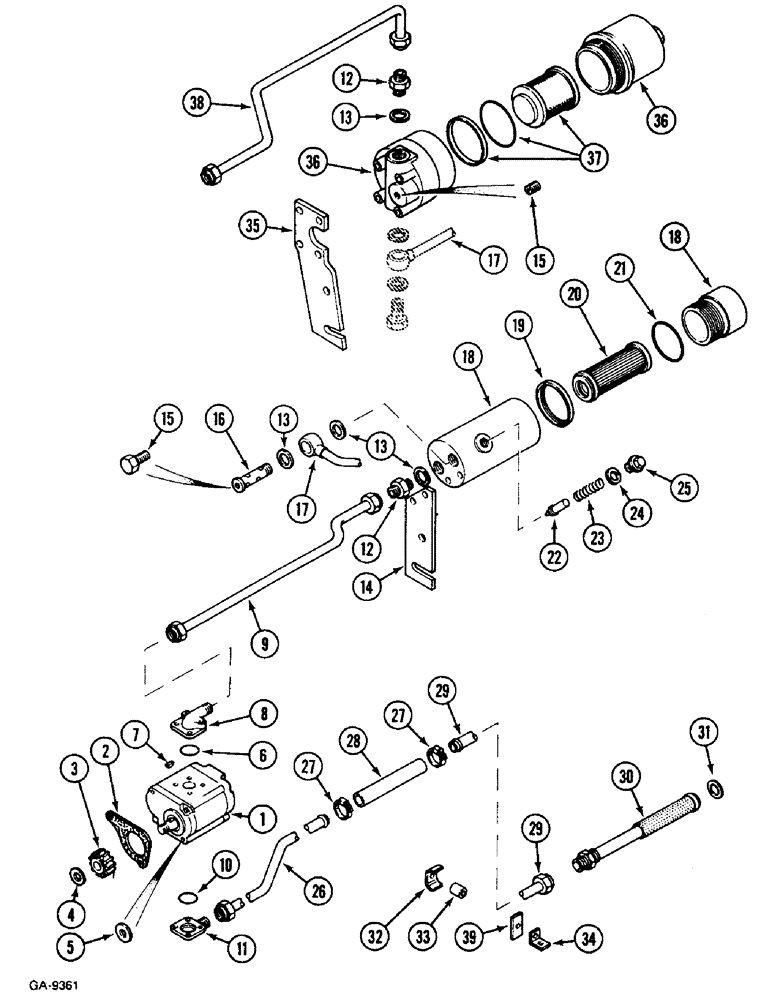

Запчасти Case IH 633 (8-498) - HYDRAULIC PUMP, OIL LINES, PRESSURE OIL FILTER (08) - HYDRAULICS

1

3145248R93

HYDRAULIC PUMP,8 CC

see hydraulic pump Bosch

1шт.

1

3057395R92

PUMP, HYDRAULIC

"Plessey"

1шт.

3058427R1

STUD

3/8 x 120 mm

1шт.

20507R1

BOLT,Hex, 3/8" - 16 x 6 3/4", Gr 5

1шт.

933620R1

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 1.1mm Thk

2шт.

21070R1

NUT,3/8"-16, G8

2шт.

934945R1

NUT,Thin, M12 x 1.5, Cl 04

1шт.

2

3057397R3

GASKET

1шт.

3

3057396R1

GEAR

20T

1шт.

4

3054302R1

PLATE, LOCKING

"Plessey"

1шт.

5

20285H

WASHER

10 x 19 x 3 mm

1шт.

6

3057400R1

O-RING,2.5mm Thk x 24mm ID, 70 Duro

1шт.

7

932618R1

WOODRUFF KEY,3mm x 5mm x 12.65mm

3 x 5 mm

1шт.

7

3054301R1

WOODRUFF KEY,M3 x 6.5

"Plessey"

1шт.

8

3057399R1

FLANGE

1шт.

931119R1

HEX SOC SCREW,M6 x 33mm, Cl 8.8

2шт.

931118R1

HEX SOC SCREW,M6 x 1 x 20mm, Cl 8.8

2шт.

933825R1

LOCK WASHER,M6

4шт.

9

3148337R1

PRESSURE PIPE

1шт.

10

3057401R1

O-RING,2.5mm Thk x 18mm ID, 70 Duro

1шт.

11

3057398R1

FLANGE

1шт.

931118R1

HEX SOC SCREW,M6 x 1 x 20mm, Cl 8.8

4шт.

933825R1

LOCK WASHER,M6

4шт.

12

3058415R1

UNION

1шт.

13

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

1шт.

14

3148344R1

SUPPORT

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

103320

LOCK WASHER,5/16"

2шт.

15

FOR444613

PLUG

order 930259R1

1шт.

16

3139133R1

PIPE FITTING

SCREW, M18 x 3 mm, order 930259R1

1шт.

17

PIPE, pressure, see control valves, oil lines

1шт.

1282752C91

FILTER ASSY

Rebatec, consists of Ref. 18 - 25

1шт.

18

3139075R92

SPARE PART HOUSING

1шт.

3139076R92

FILTER

ELEMENT ASSY., consists of 19 - 21

1шт.

19

3139311R1

SPACER

1шт.

20

FILTER, order 3139076R92

1шт.

21

3137555R1

O-RING

1шт.

22

3137556R1

VALVE

1шт.

23

3137557R1

SPRING

1шт.

24

717183R1

O-RING,2mm Thk x 19mm ID, 70 Duro

1шт.

25

3142368R1

PLUG

SPARE PART

1шт.

26

3148339R2

SUCTION PIPE

1шт.

27

27723R1

HOSE CLAMP,#16, .81/1.50 Type F Worm, W/liner

hose

2шт.

28

3148340R1

HYDRAULIC HOSE,22.00 mm ID x 100.00 mm

1шт.

29

3148341R1

SUCTION PIPE

1шт.

30

3137937R92

STRAINER ASSY.

element

1шт.

31

933608R1

SEALING RING,M26 x 31 x 2

2шт.

32

3146331R1

CLAMP

1шт.

280112

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

1шт.

109084

NUT,1/4"-20, G5

1шт.

33

3148343R1

SPACER

1шт.

34

3217255R1

SUPPORT

version with power steering

1шт.

35

3224465R1

SUPPORT

1шт.

930244R1

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

103320

LOCK WASHER,5/16"

4шт.

36

3224669R91

FILTER

with Ref. 15, 37

1шт.

37

3224623R1

FILTER

ELEMENT ASSY., "Purolator"

1шт.

38

3224467R1

PRESSURE PIPE

1шт.

39

3220183R1

PLATE

SPARE PART

1шт.
