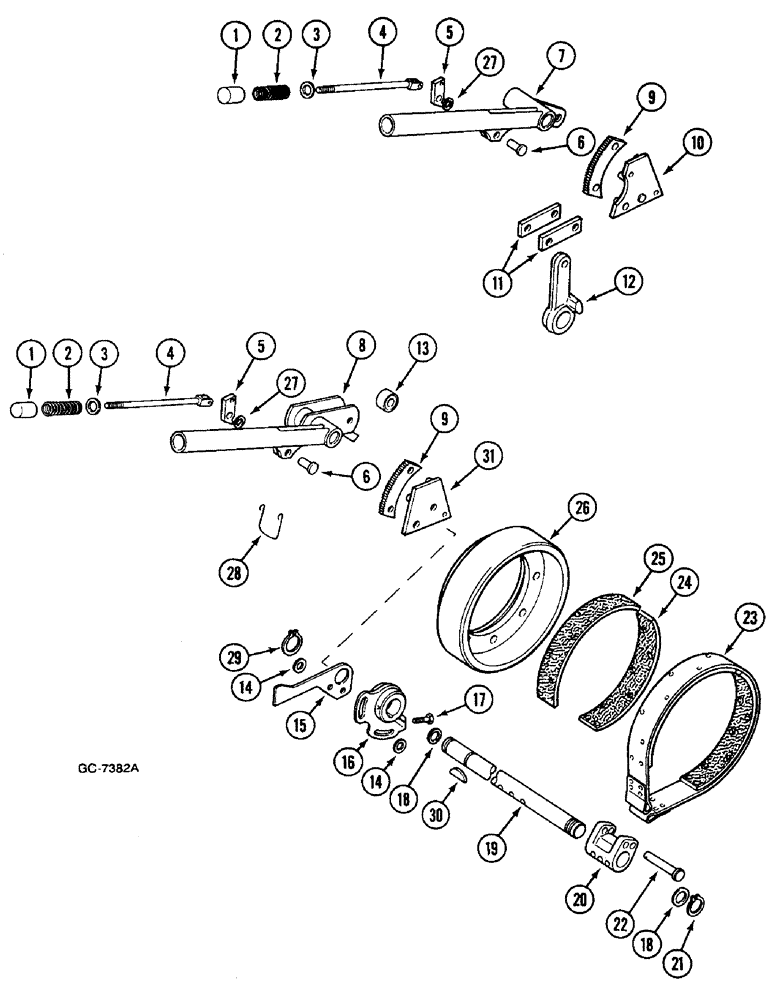

Запчасти Case IH 633 (7-466) - PARKING BRAKE (07) - BRAKES

3148278R92

LEVER

ASSY., independent, consists of Ref. 1 - 6, 8, 27, for models 433, 533, 633, 733, 833

1шт.

Version Without Cab

1шт.

1285104C92

LEVER

independent, for models 433, 533, 633, 733, 833

1шт.

Version With Cab

1шт.

3148332R92

LEVER ASSY.

dependent, with Ref. 1 - 7, 27, for models 433, 533, 633, 733, 833

1шт.

Version With Cab

1шт.

1

3057419R1

BUTTON

for models 433, 533, 633, 733, 833

1шт.

2

76DS

SPRING

for models 433, 533, 633, 733, 833

1шт.

3

3054426R2

WASHER

for models 433, 533, 633, 733, 833

1шт.

4

3058454R11

ROD

for models 433, 533, 633, 733, 833

1шт.

932296R1

LOCK PIN,M5 x 12, Slotted

for models 433, 533, 633, 733, 833

1шт.

5

786491R2

PAWL

for models 433, 533, 633, 733, 833

1шт.

6

60530H

CLEVIS PIN,3/8" x 1"

for models 433, 533, 633, 733, 833

1шт.

23478R1

COTTER PIN,5/64" x 3/4"

For models 433, 533, 633, 733, 833

1шт.

7

1283361C1

LEVER, for models 433, 533, 633, 733, 833

1шт.

933201R91

LUBE NIPPLE,67 Degree, 1/8" BSP

LUBRICATOR, for models 433, 533, 633, 733, 833

2шт.

8

1281749C1

LEVER, for models 433, 533, 633, 733, 833

1шт.

9

3058455R1

SECTOR

for models 433, 533, 633, 733, 833

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

For models 433, 533, 633, 733, 833

2шт.

103321

LOCK WASHER,3/8"

For models 433, 533, 633, 733, 833

2шт.

10

3148327R91

SUPPORT

SPARE PART for models 433, 533, 633, 733, 833

1шт.

Dependent Hand Brake

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

For models 433, 533, 633, 733, 833

1шт.

NLS

NO LONGER SERVICED

For models 433, 533, 633, 733, 833

1шт.

179845

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

for models 433, 533, 633, 733, 833

1шт.

103321

LOCK WASHER,3/8"

For models 433, 533, 633, 733, 833

3шт.

133901

SCREW,Sl Flat Hd, 3/8" - 16 x 1"

For models 433, 533, 633, 733, 833

1шт.

11

786496R1

PLATE

dependent, for models 433, 533, 633, 733, 833

2шт.

Dependent Hand Brake

1шт.

103496

CLEVIS PIN,3/8" x 1.060"

For models 433, 533, 633, 733, 833

2шт.

103373

COTTER PIN,3/32" x 3/4"

For models 433, 533, 633, 733, 833

2шт.

12

786493R1

LEVER

for models 433, 533, 633, 733, 833

1шт.

Version Without Cab

1шт.

12

1285106C1

LEVER

SPARE PART for models 433, 533, 633, 733, 833

1шт.

Version With Cab

1шт.

13

3054529R1

ROLLER

indendent, for models 433, 533, 633, 733, 833

1шт.

Independent Park Brake

1шт.

SB191

HEADED PIN,3/8" x 1 3/4"

for models 433, 533, 633, 733, 833

1шт.

103384

COTTER PIN,1/8" x 3/4"

For models 433, 533, 633, 733, 833

1шт.

615264R1

WASHER

for models 433, 533, 633, 733, 833

1шт.

14

25545R1

WASHER

independent, for models 433, 533, 633, 733, 833

2шт.

Independent Park Brake

1шт.

15

3148775R1

LEVER

independent, for models 433, 533, 633, 733, 833

1шт.

Independent Park Brake

1шт.

16

3216103R1

HUB

for models 433, 533, 633, 733, 833

1шт.

Independent Park Brake

1шт.

413-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

for models 433, 533, 633, 733, 833

2шт.

17

713829R1

SET SCREW

for models 433, 533, 633, 733, 833

1шт.

Independent Park Brake

1шт.

102635

NUT,3/8"-16, G5

For models 433, 533, 633, 733, 833

1шт.

18

717068R1

O-RING,2.4mm Thk x 23.3mm ID, 70 Duro

for models 433, 533, 633, 733, 833

2шт.

Independent Park Brake

1шт.

19

3216104R2

SHAFT

for models 433, 533, 633, 733, 833, Serial Range: -XXX

1шт.

Independent Park Brake

1шт.

19

3399908R1

SHAFT

for models 433, 533, 633, 733, 833, Start Serial: XXX

1шт.

Independent Park Brake

1шт.

20

3399909R1

LEVER

for models 433, 533, 633, 733, 833

1шт.

Independent Park Brake

1шт.

Q2935

LOCK PIN,M8 x 45, Slotted

For models 433, 533, 633, 733, 833

3шт.

932238R1

LOCK PIN,M5 x 45, Slotted

For models 433, 533, 633, 733, 833

3шт.

21

933074R1

SNAP RING,M28, Ext

retaining, for models 433, 533, 633, 733, 833

2шт.

Independent Park Brake

1шт.

22

3399912R1

PIN

for models 433, 533, 633, 733, 833

2шт.

Independent Park Brake

1шт.

103384

COTTER PIN,1/8" x 3/4"

For models 433, 533, 633, 733, 833

2шт.

3399910R91

BRAKE BAND

BAND ASSY., consists of Ref. 23, 25

1шт.

23

3399911R1

BAND

for models 433, 533, 633, 733, 833

1шт.

Independent Park Brake

1шт.

24

717071R3

BRAKE LINING

for models 433, 533, 633, 733, 833

1шт.

Independent Park Brake

1шт.

25

3142809R1

LINING

for models 433, 533, 633, 733, 833

1шт.

Independent Park Brake

1шт.

717593R1

RIVET,Flat Hd, M5 x 8

for models 433, 533, 633, 733, 833

19шт.

26

717062R2

DRUM

for models 433, 533, 633, 733, 833

1шт.

Independent Park Brake

1шт.

179849

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

For models 433, 533, 633, 733, 833

8шт.

27

Q3641

WASHER

for models 433, 533, 633, 733, 833

2шт.

28

3148277R1

RETAINER

SPRING, for models 433, 533, 633, 733, 833

1шт.

Independent Park Brake

1шт.

29

933074R1

SNAP RING,M28, Ext

retaining, for models 433, 533, 633, 733, 833

1шт.

Independent Park Brake

1шт.

30

114745

WOODRUFF KEY,#21, 1/4" x 1 1/4", HT

For models 433, 533, 633, 733, 833

1шт.

Independent Park Brake

1шт.

31

3148273R91

SUPPORT

SPARE PART for models 433, 533, 633, 733, 833

1шт.

Version Without Cab

1шт.

Independent Park Brake

1шт.

31

1285103C1

PLATE

SPARE PART SUPPORT, for models 633, 733, 833

1шт.

Version With Cab

1шт.

Independent Park Brake

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

For models 433, 533, 633, 733, 833

3шт.

103321

LOCK WASHER,3/8"

For models 433, 533, 633, 733, 833

1шт.

1265358C1

PRODUCT GRAPHIC

not illustrated, for models 433, 533, 633, 733, 833

1шт.
