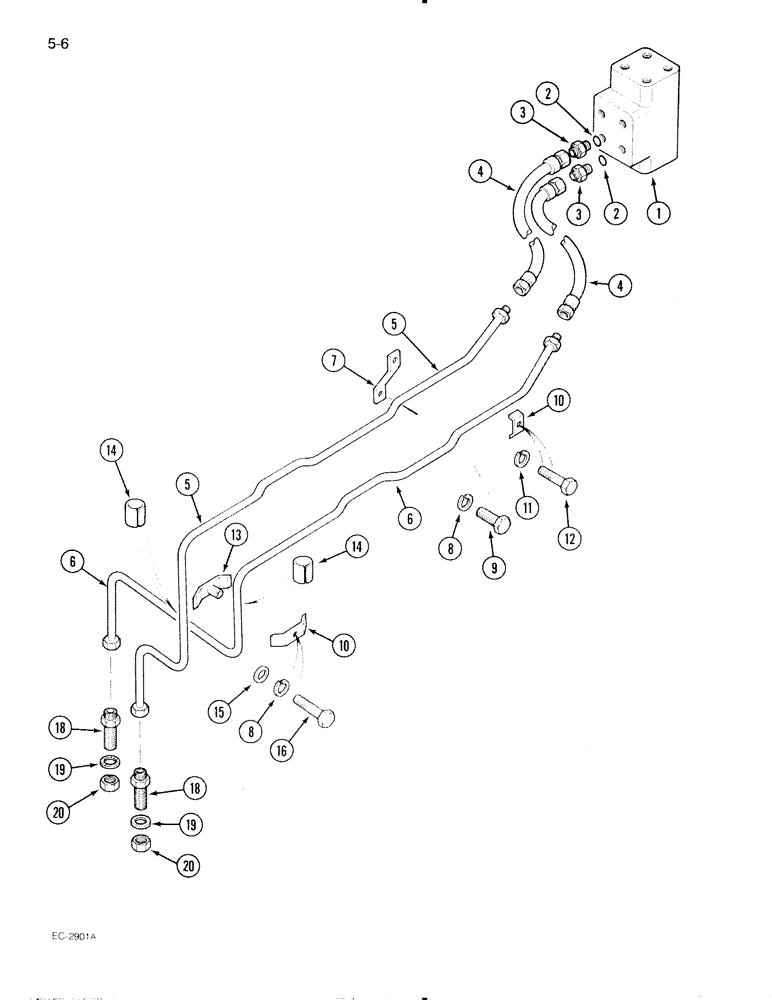

Запчасти Case IH 595 (5-06) - POWER STEERING TUBES, FRONT, 2 WHEEL DRIVE TRACTOR (05) - STEERING

REF

INSTRUCTION

VALVE ASSEMBLY - integral, power steering (See Figure 5-24)

1шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

3

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss

2шт.

4

99784C1

HOSE

- flexible (Without cab)

2шт.

4

1502283C1

HOSE

- flexible (With cab)

2шт.

5

99753C3

PIPE

TUBE ASSEMBLY - power steering, front left (With cab)

1шт.

5

1282990C2

HYD TUBE

TUBE ASSEMBLY - power steering, front left (Without cab)

1шт.

6

99752C2

PIPE

TUBE ASSEMBLY - power steering, front right (With cab)

1шт.

6

1282991C2

HYD TUBE

TUBE ASSEMBLY - power steering, front right (Without cab)

1шт.

7

1500311C2

FIXING BRACKET

BRACKET ASSEMBLY - front power steering pipes

1шт.

8

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

9

13-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

1шт.

10

529644R11

CLAMP

- tube

2шт.

11

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.

12

613-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

- hex, 6 mm - 1.00 x 25 mm

1шт.

13

529644R11

CLAMP

- tube

1шт.

14

536009R1

FUEL HOSE,0.31" ID x 2.50"

Sleeve (Order 87086C1) 0.31" ID x 2.50"

2шт.

15

95-11028

WASHER,1/4"

- flat, 9/32 x 5/8 x 1/16 inch

1шт.

16

13-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5, Full Thd

1шт.

18

218-673

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

FIT STL BULKHD .375MJ .375MJ

2шт.

19

93-21065

LOCK WASHER,Int Tooth, 5/8"

WASHER - lock, internal tooth, 5/8 inch

2шт.

20

218-1254

LOCK NUT,Blkhd, 9/16"-18

NUT - hex, lock, bulkhead, 9/16 inch NF

2шт.
