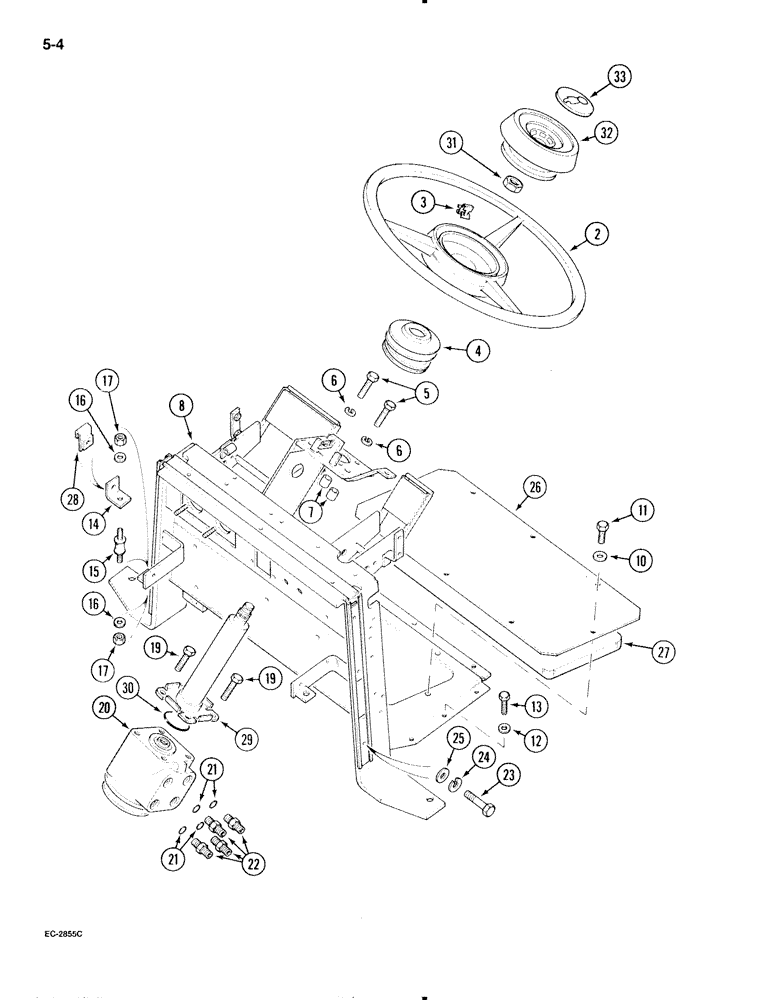

Запчасти Case IH 595 (5-04) - STEERING WHEEL, SUPPORT AND VALVE, TRACTOR WITH CAB (05) - STEERING

2

3123597R91

HANDWHEEL

WHEEL - steering, 408 mm dia. (Order 385156R1), Includes: Ref. 3

1шт.

3

3123598R1

CLIP,ELECTRICAL

CLIP - retaining

3шт.

#3 replaced with o-ring p/n 238-5149

1шт.

4

3399137R1

BELLOWS

BOOT - rubber, steering shaft

1шт.

5

61-33824

HEX SOC SCREW,3/8"-16 x 1 1/2"

SCREW - cap, hex socket, 3/8 NC x 1-1/2 inch

2шт.

6

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

7

660200R1

SPACER,10.7mm ID x 17.14mm OD x 9.5mm L

- pipe, 3/8 x 1 inch

2шт.

8

3399466R9

SUPPORT

ASSEMBLY - steering

1шт.

8

1343035C5

SUPPORT

ASSEMBLY - steering (Tractor with creeper)

1шт.

8

1343035C5

SUPPORT

ASSEMBLY - steering (Tractor with forward/reverse)

1шт.

10

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

11

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, 8 mm - 1.25 x 16 mm

8шт.

12

934673R1

WASHER,M8.4 x 25 x 2

- plain, 8 mm

10шт.

13

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, 8 mm - 1.25 x 16 mm

8шт.

13

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, 8 mm - 1.25 x 25 mm

2шт.

14

3129867R1

SUPPORT

BRACKET - hood support

2шт.

15

3129866R1

SHOCK ABSORBER

BLOCK - isolating

2шт.

16

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

17

829-1406

NUT,Hex, M6 x 1, Cl 10.9

4шт.

19

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

20

88107C93

PUMP

VALVE ASSEMBLY - integral, power steering (See Figure 5-24)

1шт.

366441A1R

REMAN-HYD PUMP

595 (NORTH AMERICA) (1/90-12/94), Reman for New PN 88107C93

1шт.

366441A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

21

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

4шт.

22

587639R1

HYD CONNECTOR,9/16"-18, 37 Degree x 3/4"-18, O-Ring

UNION - straight, 3/8 to 1/2 inch

4шт.

23

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

4шт.

24

892-11010

LOCK WASHER,M10

2шт.

25

934674R1

WASHER,M10.5 x 30 x 2.5

- flat, 10.5 x 30 x 2.5 mm

4шт.

1536046C1

PANEL ASSY.

PANEL ASSEMBLY - steering support, Includes: Ref. 26 - 28

1шт.

26

NSS

NOT SOLD SEPARAT

PANEL - steering support

1шт.

27

1536047C1

INSULATOR

INSULATION - steering support panel

1шт.

28

3129868R1

NUT

- caged, 5/16 inch

2шт.

29

3129610R91

STEERING COLUMN

SHAFT ASSEMBLY - steering, Includes: Ref. 30 and 31

1шт.

30

1537340C1

O-RING,44.12mm ID x 2.62mm Width

- 44.2 x 2.62mm (Replaces 1537430C1)

1шт.

31

F19646

LOCK NUT,13/16"-20, Thin

NUT - hex

1шт.

68837C3

CAP

ASSEMBLY - steering wheel, Includes: Ref. 32 and 33

1шт.

32

68836C1

CAP

- steering wheel

1шт.

33

A180055

CAP ASSY.

INSERT - "Case" eagle

1шт.
