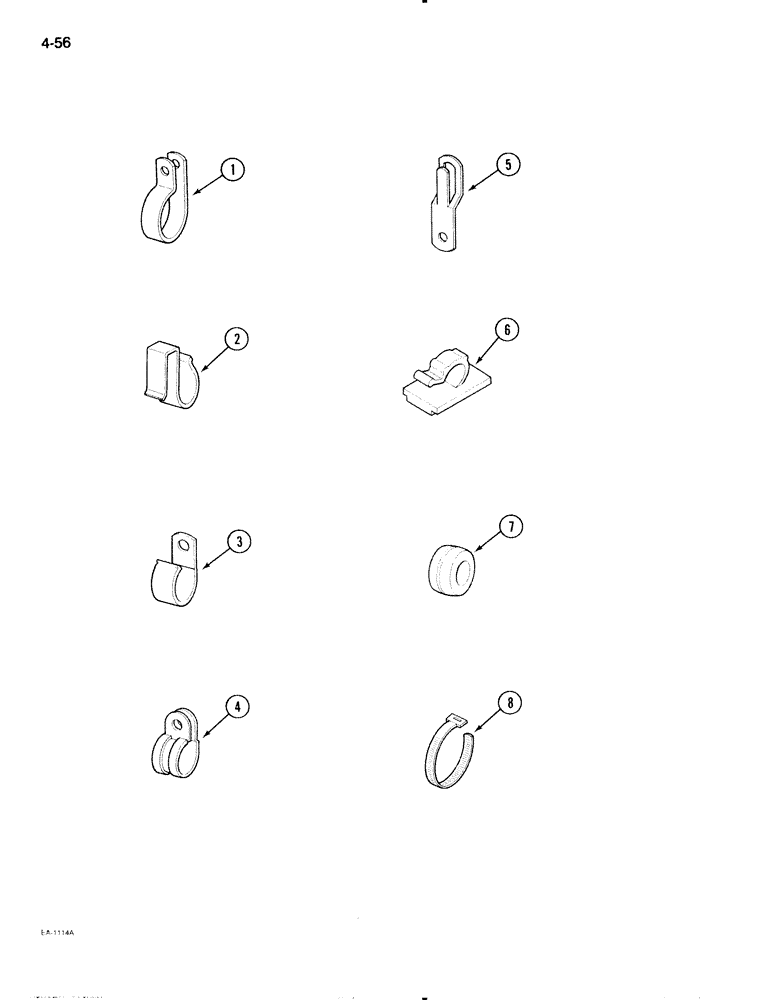

Запчасти Case IH 595 (4-56) - ELECTRICAL CLIPS, STRAPS AND GROMMETS (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
3116240R1
CLIP
- 0.56 diameter, closed (Battery cable, without cab)
1шт.
2
3116918R1
CABLE CLIP
CLIP - edge, 0.25 max diameter (Air cleaner bracket)
1шт.
2
3123109R1
CABLE CLIP
CLIP - edge, 0.35 max diameter (Temperature sender cable)
1шт.
2
3125873R1
CLIP
- edge, 0.374 max diameter (Front grille, without cab)
2шт.
2
537024R1
CLIP
- edge, 0.46 max diameter (Front grille, with cab)
1шт.
2
537024R1
CLIP
- edge, 0.46 max diameter (Seat deck, left, without cab)
1шт.
2
537025R1
CLIP
- edge, 0.55 max diameter (Master cylinder bracket)
1шт.
2
539015R1
CLIP
- edge, 0.75 max diameter (Park brake flasher without cab)
1шт.
2
535303R1
CABLE CLIP
CLIP - edge, 0.95 max diameter (Battery tray, without cab)
1шт.
3
100770H
CLIP
- 0.31 diameter, open (Grille shroud, left, without cab)
1шт.
3
316433C1
CLAMP
CLIP - 0.50 diameter, open (Main harness, without cab)
1шт.
3
316433C1
CLAMP
CLIP - 0.50 diameter, open (Grille tie bar, left, with cab)
1шт.
3
316433C1
CLAMP
CLIP - 0.50 diameter, open (Grille shroud, with cab)
2шт.
3
1500151C1
CLAMP
CLIP - 0.75 diameter, open (Harness to engine, with cab)
2шт.
4
3125823R1
CLIP
- 0.75 diameter (Battery tray, without cab)
1шт.
5
708115R1
PLATE ASSY.
CLIP - spring type
1шт.
6
1500496C1
CABLE CLIP
CLIP - cable, 3.0 mm diameter (Fuel tank, left with cab)
2шт.
6
1502353C1
CABLE CLIP
CLIP - cable, 6.5 mm diameter (Instrument panel, with cab)
2шт.
6
1502354C1
CABLE CLIP
CLIP - cable, 9.0 mm diameter (Instrument panel, with cab)
2шт.
6
1536404C1
CLIP
- cable, 20 mm diameter (Instrument shroud, without cab)
1шт.
7
3113661R1
GROMMET
- (Left and right fenders, without cab)
2шт.
7
705548R1
GROMMET
- 0.25 x 0.56 inch (Rear fender top, without cab)
1шт.
7
3115463R1
GROMMET
- 0.50 x 0.88 inch (Fender side sheet, without cab)
1шт.
7
3123681R1
GROMMET
- 0.31 x 0.56 inch (Rear flasher lamps, without cab)
1шт.
8
289862C1
CABLE TIE,3/16" x 7"
STRAP - cable, 1.75 max bundle (Battery cable, without cab)
1шт.
8
289862C1
CABLE TIE,3/16" x 7"
STRAP - cable, 1.75 max bundle (Battery support, without cab)
1шт.
8
289862C1
CABLE TIE,3/16" x 7"
STRAP - cable, 1.75 max bundle (Battery tray, without cab)
1шт.
8
289862C1
CABLE TIE,3/16" x 7"
STRAP - cable, 1.75 max bundle (Fuel pipe, without cab)
2шт.
8
289862C1
CABLE TIE,3/16" x 7"
STRAP - cable, 1.75 max bundle (Steering support, without cab)
1шт.
8
289862C1
CABLE TIE,3/16" x 7"
STRAP - cable, 1.75 max bundle (Front/cab harness, with cab)
1шт.
8
289862C1
CABLE TIE,3/16" x 7"
STRAP - cable, 1.75 max bundle (Tachometer drive cable)
2шт.
8
289862C1
CABLE TIE,3/16" x 7"
STRAP - cable, 1.75 max bundle (Oil pressure gauge tube)
2шт.
8
289862C1
CABLE TIE,3/16" x 7"
STRAP - cable, 1.75 max bundle (Battery earth, without cab)
1шт.
8
289862C1
CABLE TIE,3/16" x 7"
STRAP - cable, 1.75 max bundle (Starter harness, with cab)
1шт.
8
306132C1
CABLE TIE,14.5" L
STRAP - cable, 4.0 max bundle (Air inlet pipe, with cab)
2шт.
8
306132C1
CABLE TIE,14.5" L
STRAP - cable, 4.0 max bundle (Steering support, without cab)
1шт.
Выбрано товаров: 36
