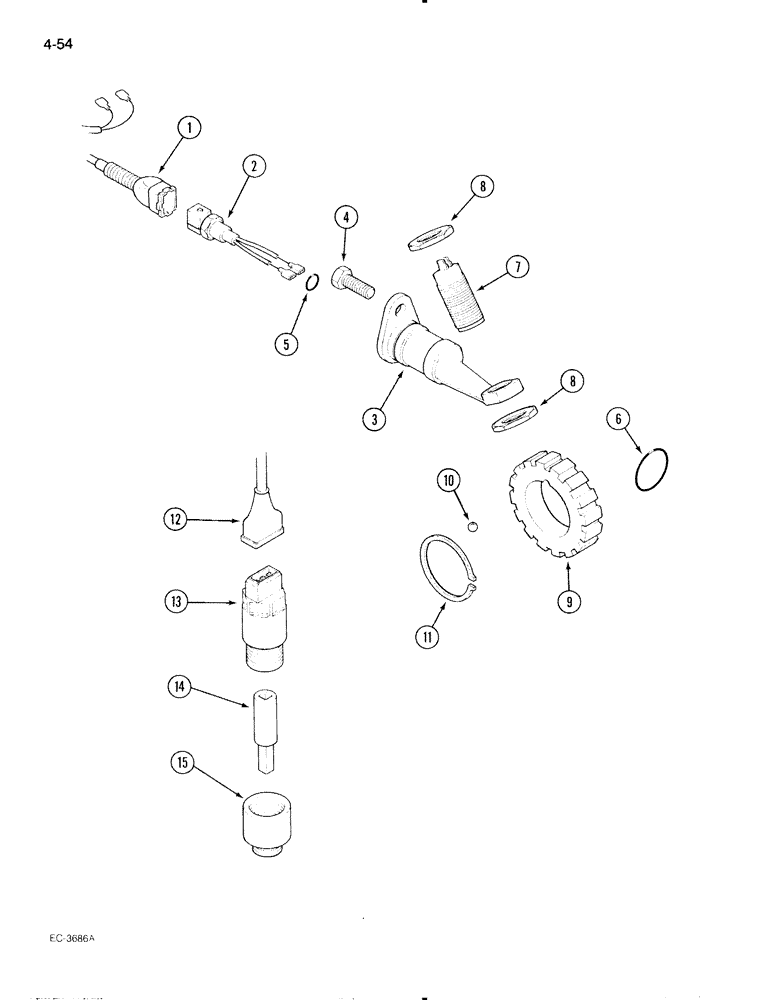

Запчасти Case IH 595 (4-54) - SPEED SENSORS, TRACTOR WITH CAB (04) - ELECTRICAL SYSTEMS

1

1536962C1

HARNESS

ASSEMBLY - road speed sensor

1шт.

2

99990C1

HARNESS

CABLE ASSEMBLY - sensor, road speed

1шт.

3

1536980C1

SUPPORT

MOUNTING - road speed sensor

1шт.

4

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Road speed sensor Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

6

238-5024

O-RING,0.07" Thk x 1.114" ID, -24, Cl 5, 75 Duro

- 1-1/8 ID x 1/8 inch wide, road speed sensor

1шт.

7

1536981C1

SENSOR

- road speed, Includes: Ref. 8

1шт.

8

84116C1

NUT

- lock, road speed sensor

2шт.

9

1537171C1

GEAR

WHEEL - slotted, speedometer (See Figure 6-42), road sensor

1шт.

10

17008R1

BALL,1/4" Dia

(6mm) - Wheel speedometer, Road sensor 1/4" Dia

1шт.

11

381486R1

SNAP RING,#187, 1.759", Ext

RING - retaining wheel speedometer, road sensor

1шт.

12

1536961C1

HARNESS

ASSEMBLY - front (See Figure 4-04), eng speed sensor, Serial Range: -JJE0017402

1шт.

REF 12 RETAINING CLIP THAT JOINS THE HARNESS AND THE ENGINE SPEED SENSOR CAN BE FOUND ON THE HARNESS ASSY. (IT IS NSS).

1шт.

13

1532297C1

SENSOR

- engine speed, Serial Range: -JJE0017402

1шт.

Item number 13 should be female threads and not male.

1шт.

14

1537129C1

EXTENSION

- engine speed pickup, sensor, Serial Range: -JJE0017402

1шт.

15

1537128C1

ADAPTER

- engine speed sensor, Serial Range: -JJE0017402

1шт.

Item number 15 should be turned 180 degrees.

1шт.

5

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, Road speed sensor

1шт.
