Запчасти Case IH 595 (4-48) - STARTER MOTOR, MAGNETI-MARELLI (04) - ELECTRICAL SYSTEMS

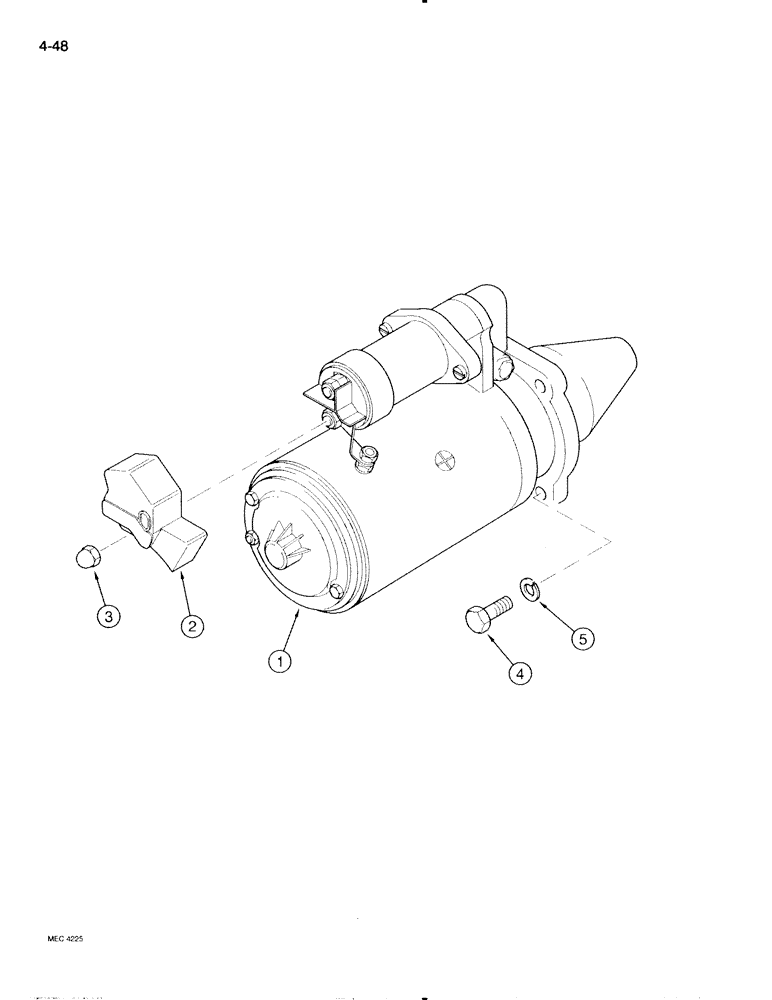

Схема запчастей Case IH 595 - (4-48) - STARTER MOTOR, MAGNETI-MARELLI (04) - ELECTRICAL SYSTEMS
1
4
3
2
5

Артикул

Название

Примечание

Количество

121449A1

PACKAGE

KIT - starter motor, Includes: Ref. 1 - 3

1шт.

1

114568A1

STARTING MOTOR

MOTOR - starting, 2.8 kw, 12 volt

1шт.

2

114570A1

COVER

COVER - terminal

1шт.

3

114571A1

SPECIAL NUT

NUT - dome, nylon

1шт.

4

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1 1/4", G5, Full Thd

3шт.

5

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

87297318

REMAN-STARTER

Remanufactured STARTER - NA Only

1шт.

87297319

CORE-STARTER

Return number - For N.A. only

1шт.

Выбрано товаров: 8
