Запчасти Case IH 595 (4-44) - STARTER MOTOR, BOSCH (04) - ELECTRICAL SYSTEMS

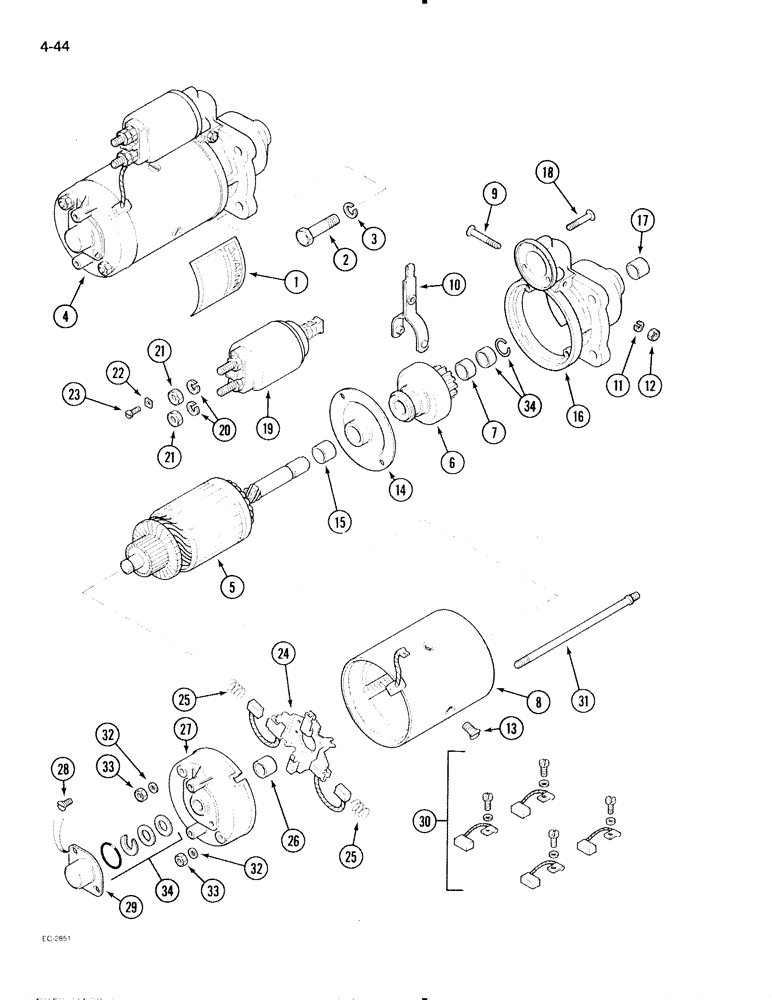

Схема запчастей Case IH 595 - (4-44) - STARTER MOTOR, BOSCH (04) - ELECTRICAL SYSTEMS
21
33
3
25
13
15
8
30
26
17
7
5
11
21
10
32
2
22
29
19
33
34
25
31
20
34
27
28
1
18
6
32
12
16
14
4
9
23
24

Артикул

Название

Примечание

Количество

1

321-3709

DECAL

DECAL - warning, starter motor (English)

1шт.

1

321-6798

DECAL

DECAL - warning, starter motor (French)

1шт.

2

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

BOLT - hex, 3/8 NC x 1-1/4 inch

3шт.

3

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

4

121449A2

PACKAGE

MOTOR - starting (Order 537140R96) (Replaces 529965R93), Includes: Ref. 5 - 34

1шт.

4

87297312

REMAN-STARTER

Starter; For N.A. only

1шт.

4

87297313

CORE-STARTER

Return number - For N.A. only

1шт.

5

3079252R1

ARMATURE

ARMATURE - starter motor

1шт.

6

3129631R1

DRIVE ASSY.

DRIVE ASSEMBLY - starter motor

1шт.

7

3079254R1

BUSHING

BUSHING - drive assembly

1шт.

8

3079356R1

COIL

COIL - field winding, 1 to 4 complete

1шт.

9

3079251R1

BOLT

SCREW - engaging lever

1шт.

10

3078965R1

LEVER

FORK - clutch drive engaging lever (Order K965134)

1шт.

11

3079166R1

SPRING WASHER,M8.4 ID x 15 OD x .8 Thk

WASHER - lock, 8 mm

1шт.

12

43362

NUT,M8 x 1.25, Cl 10

NUT - hex, 8 mm (Engaging lever)

1шт.

13

3129639R1

SCREW

SCREW - field coil retaining

4шт.

14

3079253R1

BALL BEARING

BEARING - intermediate (Order 3078966R91)

1шт.

15

3078967R1

BUSHING

BUSHING - bearing

1шт.

16

3129633R1

HOUSING

HOUSING - drive end

1шт.

17

3055738R1

BUSHING

BUSHING - drive end bearing

1шт.

18

3078974R1

SCREW

SCREW - solenoid switch retaining

3шт.

19

140881A1

KIT

SWITCH - solenoid (Replaces 3079167R1)

1шт.

20

934075R1

LOCK WASHER,M10

LOCK WASHER, M10

2шт.

21

100016

NUT,M10 x 1.5, Cl 8

NUT, (Solenoid terminal) M10, Cl 8

2шт.

22

3132763R1

TERMINAL CONNECTOR

CLAMP - terminal

1шт.

23

931342R1

SCREW,Slotted Cheese, M4 x 0.7 x 6mm, Cl 8.8

SCREW - machine, pan head, slotted, 4 mm - 0.7 x 6 mm

1шт.

24

3079174R1

HOLDER

HOLDER - brush (Order K965157)

1шт.

25

3079420R1

SPRING

SPRING - compression, brush

4шт.

26

3079170R1

BUSHING

BUSHING - commutator end (Order K965145)

1шт.

27

3129632R91

END ASSY.

FRAME - commutator end

1шт.

28

3079426R1

SCREW

SCREW - fillister head, 5/16 inch (Order K965146)

2шт.

29

3079177R1

CAP

CAP - commutator end frame (Order K965149)

1шт.

30

3079359R91

BRUSH, COMMUTATOR

BRUSH KIT - brush set

1шт.

31

3079172R1

STUD

STUD - thru fixing

2шт.

32

3079176R1

WASHER

WASHER - plain, thru fixing stud (Order K965147)

2шт.

33

825-1406

NUT,M6, Cl 8

NUT, M6, Cl 8

2шт.

34

3079173R91

KIT

KIT - terminal parts (Order 3079555R91)

1шт.

87297318

REMAN-STARTER

Remanufactured STARTER - NA Only

1шт.

87297319

CORE-STARTER

Return number - For N.A. only

1шт.
