Запчасти Case IH 595 (4-40) - BATTERY TRAY, BATTERY AND CABLES, WITHOUT CAB (04) - ELECTRICAL SYSTEMS

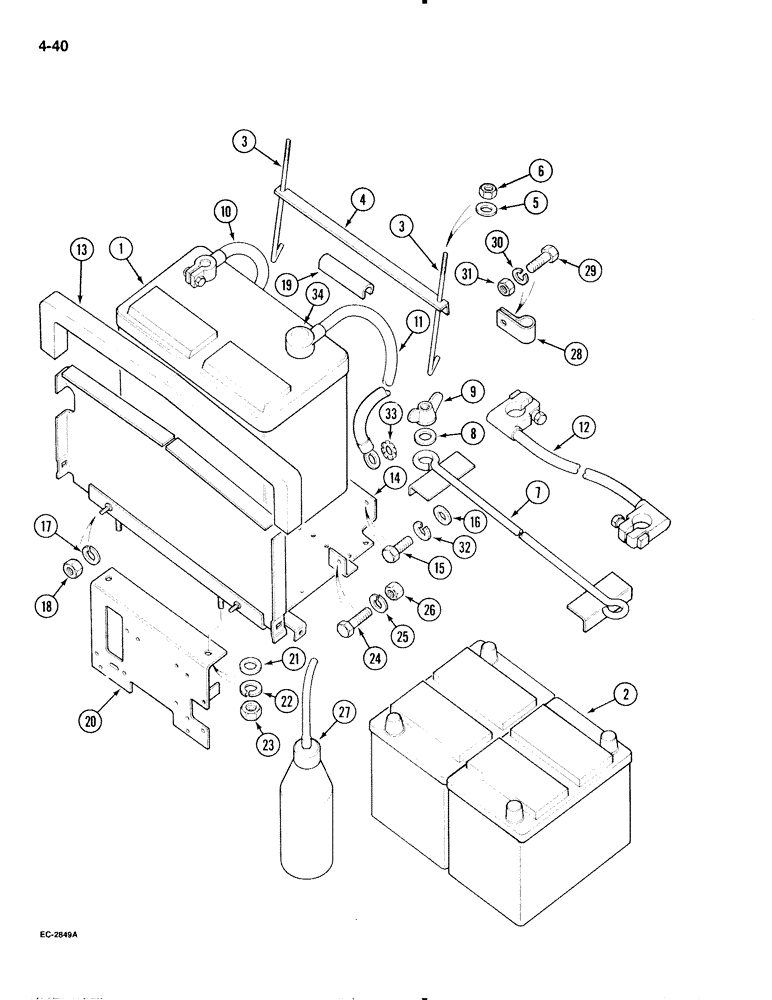

Схема запчастей Case IH 595 - (4-40) - BATTERY TRAY, BATTERY AND CABLES, WITHOUT CAB (04) - ELECTRICAL SYSTEMS
27
32
7
28
2
33
12
30
20
6
3
26
9
5
19
23
11
18
21
15
16
14
22
8
3
24
29
31
4
34
1
13
25
17
10

Артикул

Название

Примечание

Количество

1

A186026

BATTERY, DRY

- dry charge, maintenance free, 12 volt (Order B2772)

1шт.

1

530756R2

BATTERY, WET

BATTERY - wet charge, extra heavy duty 12 volt (Order B2772)

1шт.

2

D44177

DRY BATTERY

- heavy duty, 6 volt

2шт.

3

527605R3

ROD

- battery hold down

2шт.

3

529968R3

ROD

- battery hold down heavy duty

2шт.

4

3121178R1

BRACKET

- battery hold down (12 volt battery)

1шт.

5

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

6

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

7

67845C1

SUPPORT

BRACKET - battery hold down (2 x 6 volt battery)

1шт.

8

27309R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch (2 x 6 volt battery)

2шт.

9

7500032

BUSHING

NUT - wing, 5/16 inch NC (2 x 6 volt battery)

2шт.

10

537504R1

CABLE ASSY.

CABLE -, Serial Range: battery-ground

1шт.

11

1537299C1

CABLE

-, Serial Range: battery-starter

1шт.

11

122599A1

CABLE ASSY.

CABLE - battery to starter (Use with starter 114568A1)

1шт.

12

370394R1

CABLE ASSY.

CABLE - battery (2 x 6 volt battery)

1шт.

13

NSS

NOT SOLD SEPARAT

GASKET - foam, 32.7 inch (Cut from 73217C1)

1шт.

13

73217C1

FILLING STRIP

SEAL - foam, bulk length, 4 foot roll (1.2 metre)

1шт.

14

1536118C1

TRAY ASSY.

TRAY ASSEMBLY - battery

1шт.

14

1333063C1

TRAY

ASSEMBLY - battery (Orchard tractor)

1шт.

15

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

16

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

17

92-11025

LOCK WASHER,6.4mm ID x 12.37mm OD x 1.57mm Thk

WASHER, LOCK, 1/4"

1шт.

18

25-104

NUT,1/4"-20, G5

1шт.

19

3113841R1

MOLDING

MOULDING - edge, battery tray

1шт.

20

1970806C1

SUPPORT

- battery tray

1шт.

20

1333073C1

SUPPORT

- battery tray (Orchard tractor)

1шт.

21

495-81117

WASHER,.344" x 1" x .120"

- flat, 11/32 x 1 x 7/64 inch

2шт.

22

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

23

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

24

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

2шт.

25

92-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

26

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

27

B17086

ACID, BATTERY

ELECTROLYTE - battery

1шт.

28

3116240R1

CLIP

- 0.56 diameter, closed (Starter motor cable)

1шт.

29

63-1086

SCREW,Hex Hd, #8-32 x 3/8"

- hex, No.8 NC x 3/8 inch

1шт.

30

92-11008

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

31

225-10108

NUT,#8-32

1шт.

32

492-11038

LOCK WASHER,3/8"

2шт.

33

493-11052

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER - lock, internal/external tooth, 1/2 inch

2шт.

34

3125853R1

PROTECTOR

BOOT - rubber, starter cable

1шт.

Выбрано товаров: 40
