Запчасти Case IH 595 (4-34[A]) - TWO SPEED POWER SHIFT CONTROL, TRACTOR WITH CAB (04) - ELECTRICAL SYSTEMS

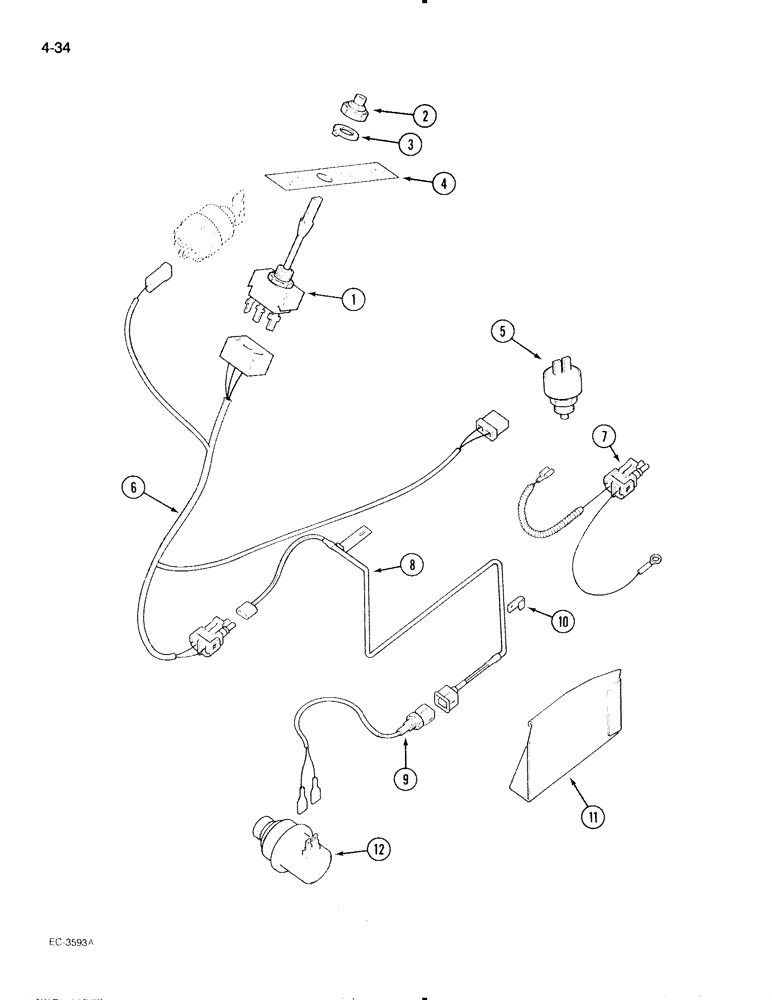

Схема запчастей Case IH 595 - (4-34[A]) - TWO SPEED POWER SHIFT CONTROL, TRACTOR WITH CAB (04) - ELECTRICAL SYSTEMS
3
1
2
12
10
5
6
9
11
4
8
7

Артикул

Название

Примечание

Количество

1

1536154C1

TOGGLE SWITCH

SWITCH - toggle (2 speed power shift control)

1шт.

2

1536156C1

COVER

- toggle switch

1шт.

3

1536155C1

WASHER

- keyed

1шт.

4

98098C1

DECAL

- 2 speed power shift

1шт.

5

1332724C1

SWITCH

- plunger, neutral starting

1шт.

6

1536959C1

HARNESS

ASSEMBLY - instrument panel (Prior to P.I.N. JJE0017402)

1шт.

6

1537986C1

HARNESS

ASSEMBLY - instrument panel (P.I.N. JJE0017402 and After)

1шт.

7

91917C2

CABLE

- 2 speed power shift solenoid

1шт.

8

99991C1

CABLE

- 2 speed power shift

1шт.

9

99990C1

HARNESS

CABLE - solenoid

1шт.

10

92071C1

CLAMP

CLIP - solenoid cable

1шт.

11

99952C2

SHIELD

- solenoid cable

1шт.

12

1958120C1

SOLENOID VALVE

VALVE - solenoid (See Figure 8-24)

1шт.

Выбрано товаров: 13
