Запчасти Case IH 595 (4-26) - INSTRUMENT CLUSTER (04) - ELECTRICAL SYSTEMS

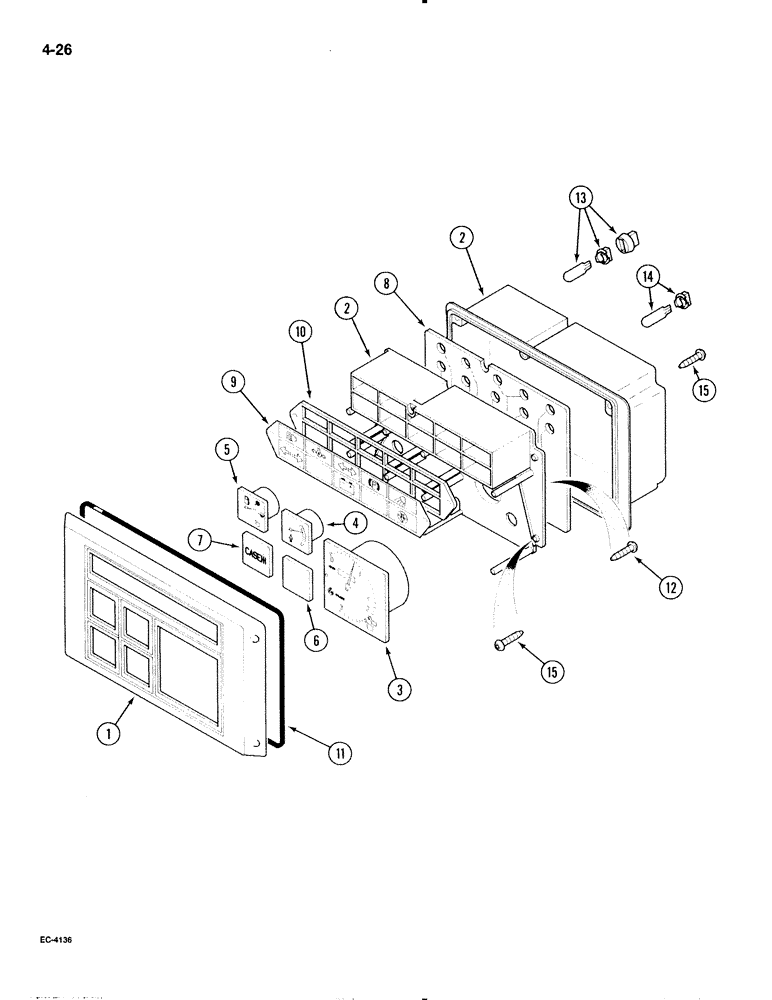

Схема запчастей Case IH 595 - (4-26) - INSTRUMENT CLUSTER (04) - ELECTRICAL SYSTEMS
9
7
6
4
3
10
2
11
1
14
8
15
12
15
5
2
13

Артикул

Название

Примечание

Количество

1536455C1

CLUSTER, INSTR.

CLUSTER ASSEMBLY - instruments, Includes: Ref. 1 - 15

1шт.

1

K262050

BEZEL

1шт.

2

K262051

CASE ASSY.

CASE ASSEMBLY

1шт.

3

111815A1

HOURMETER

TACHOMETER

1шт.

4

111819A1

GAUGE

- water temperature

1шт.

5

111820A1

FUEL GAUGE

GAUGE - fuel

1шт.

6

111821A1

DIAL

- blank

1шт.

7

111822A1

DIAL

PLATE - dial name

1шт.

8

K262056

BOARD, PRINTED CIRCU

BOARD - printed circuit

1шт.

9

111823A1

FILTER

- warning lights

1шт.

10

K262058

GASKET

- warning lights

1шт.

11

K262059

GASKET,4.45mm Thk x 249.68mm ID

- sealing (Order D71343)

2шт.

12

K262060

SCREW

KIT - tachometer

1шт.

13

K262061

LAMP

ASSEMBLY - with boot (Order A47125 and W10478)

1шт.

14

K262062

LAMP

ASSEMBLY - without boot (Order A47125 and W10478)

1шт.

15

K262063

SELF-TAP SCREW

- self tapping

1шт.

Выбрано товаров: 16
