Запчасти Case IH 595 (4-20) - WORK LIGHTS, INTERNALLY ADJUSTABLE, TRACTOR WITH CAB (04) - ELECTRICAL SYSTEMS

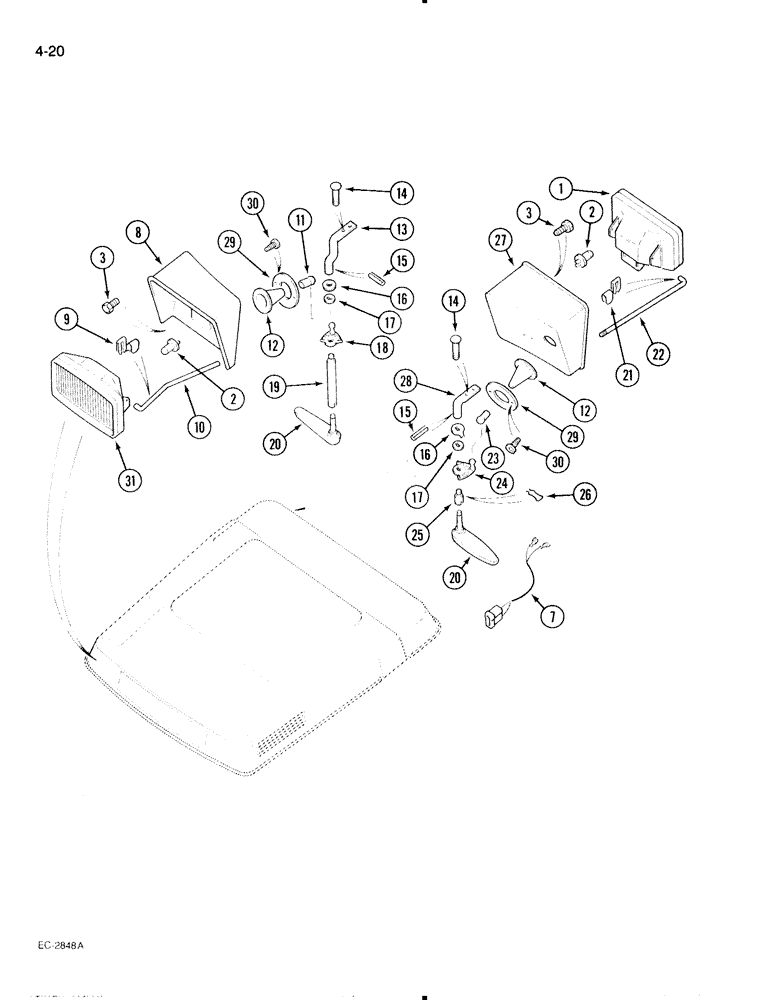

Схема запчастей Case IH 595 - (4-20) - WORK LIGHTS, INTERNALLY ADJUSTABLE, TRACTOR WITH CAB (04) - ELECTRICAL SYSTEMS
18
29
2
14
3
16
15
29
27
25
28
14
23
19
30
20
7
12
12
22
20
21
9
15
26
2
8
1
30
17
24
10
13
3
31
16
17
11

Артикул

Название

Примечание

Количество

1

1328615C1

LAMP, WORK

LIGHT ASSEMBLY - work rear right (Raydot), Includes: Ref. 2

1шт.

1

1536658C1

LIGHT ASSEMBLY - work rear right (Hella), Includes: Ref. 2

1шт.

2

3217310R1

BULB,H3, 12V, 55W

LAMP - halogen bulb 12v/55w (Order 1094362R1)

1шт.

3

3234404R1

SCREW

- hex, hi-lo 6.3 x 30 mm

1шт.

7

3399341R2

CABLE

- work light fly lead

1шт.

8

3233559R3

BASE

- light, front light

1шт.

9

3234397R1

CLIP

- left

1шт.

10

1987187C1

STEM

ROD - right, front light

1шт.

11

3233279R1

BALL JOINT

JOINT - ball

1шт.

12

3234153R1

GROMMET

INSULATOR - bellows

2шт.

13

3234401R1

SUPPORT

- right, front light

1шт.

14

275-5478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

SCREW - hex head tapped 1/4-14 x 1/2 inch

1шт.

15

30786R1

LOCK PIN,M2 x 14, Slotted

PIN - slotted spring, 2 x 14 mm

2шт.

16

3234405R1

WASHER, LOCK

SHIM - handle

2шт.

17

3233281R1

WASHER,M14 ID x 20 OD x 1 Thk

WASHER - flat

2шт.

18

3234383R1

SEGMENT

- weldment

1шт.

19

3234403R1

PIN

- worklight, front right

1шт.

20

3234375R1

HANDLE

- front and rear worklight

2шт.

21

3234398R1

CLIP

- right

1шт.

22

3234387R91

ROD ASSY.

ROD ASSEMBLY - rear right Worklight, Includes: Ref. 23

1шт.

23

3233279R1

BALL JOINT

JOINT - ball

1шт.

24

3234389R1

BRACKET

SEGMENT - weldment

1шт.

25

3234406R1

PIN

- rear right worklight

1шт.

26

3234400R1

CLIP

- spring

1шт.

27

3233557R3

BASE

- light, rear right

1шт.

28

3234402R1

SUPPORT

- rear light, right

1шт.

29

1990575C1

PACKING RING

RETAINER - insulator bellows

2шт.

30

3405477R1

SELF-TAP SCREW,Pan Hd, M4.8 x 16

SCREW - hi-lo 4.8 x 16 mm

4шт.

31

987375C1

LIGHT ASSEMBLY - work, front right (ABL), includes lamp and bezel

1шт.

31

1987492C1

LAMP, WORK

LIGHT ASSEMBLY - work, front right (Hella), includes lamp and bezel

1шт.

1312210C1

BULB

LAMP - halogen bulb 12v/55w (Hella) (Not shown)

1шт.

1987493C1

BEZEL

- (Hella) (Not shown)

1шт.

Выбрано товаров: 32
