Запчасти Case IH 595 (4-10) - LIGHTS AND HARNESS, TRACTOR WITH CAB (04) - ELECTRICAL SYSTEMS

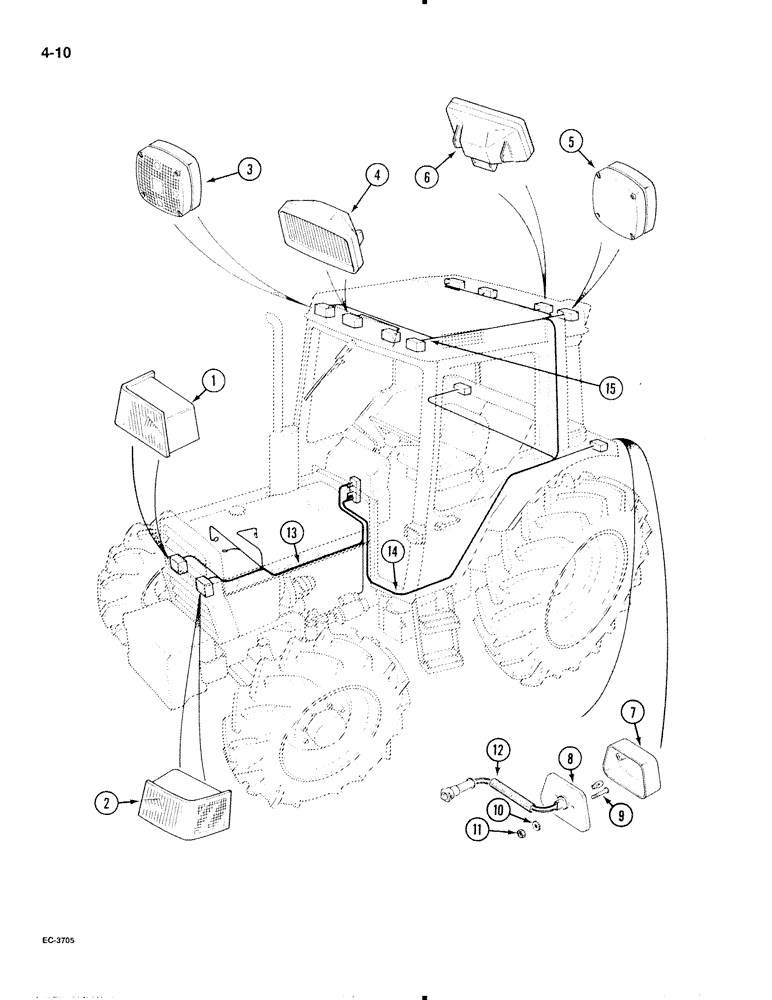

Схема запчастей Case IH 595 - (4-10) - LIGHTS AND HARNESS, TRACTOR WITH CAB (04) - ELECTRICAL SYSTEMS
13
1
9
11
14
3
15
5
2
4
6
12
7
8
10

Артикул

Название

Примечание

Количество

1

1964881C2

HEADLIGHT

LIGHT ASSEMBLY - head, without bulb, right

1шт.

2

1964882C2

HEADLIGHT

LIGHT ASSEMBLY - head, without bulb, left

1шт.

3

1983404C1

LIGHT ASSY.

LIGHT ASSEMBLY - flasher warning, front (See Figure 4-18)

2шт.

4

1987328C2

LAMP, WORK

LIGHT ASSEMBLY - flood, front (See Figure 4-18)

2шт.

5

1983404C1

LIGHT ASSY.

LIGHT ASSEMBLY - flasher warning, rear (See Figure 4-18)

2шт.

6

1983695C2

HEADLIGHT

LIGHT ASSEMBLY - flood, rear (See Figure 4-18)

2шт.

91805C91

LAMP

LIGHT ASSEMBLY - tail, Includes: Ref. 7 and 8

2шт.

7

91929C1

LENS

- red, tail

1шт.

8

26617R1

BULB,C2F, #168, 14V

LAMP - type C-2F, trade No. 168 (Order D71346)

1шт.

9

31108R1

SCREW,Cross Pan Hd, M5 x 30

- pan, cross recess, 5 mm - 0.80 x 30 mm

4шт.

10

893-11005

LOCK WASHER,Ext Tooth, M5

WASHER - external tooth lock, 5 mm

4шт.

11

824-1405

NUT,M5, Cl 5

4шт.

12

91860C3

HARNESS

- tail light

2шт.

13

1536961C1

HARNESS

ASSEMBLY - front (Prior to P.I.N. JJE0018177)

1шт.

13

1537879C1

HARNESS

ASSEMBLY - front (P.I.N JJE0018177 and After)

1шт.

REF 13 RETAINING CLIP THAT JOINS THE HARNESS AND THE ENGINE SPEED SENSOR CAN BE FOUND ON THE HARNESS ASSY. (IT IS NSS).

1шт.

14

1328852C3

HARNESS

ASSEMBLY - cab (Prior to P.I.N. JJE0018177)

1шт.

14

1987425C1

HARNESS

ASSEMBLY - cab (P.I.N JJE0018177 and After)

1шт.

15

1987342C1

HARNESS

- turn signal

1шт.

Выбрано товаров: 19
