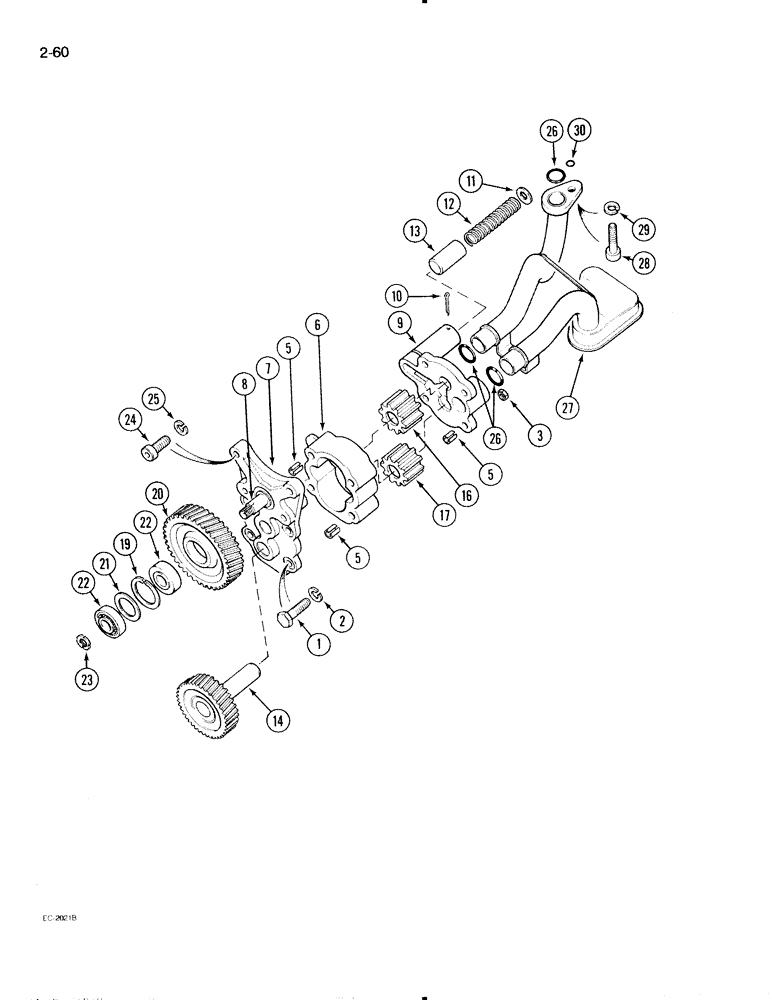

Запчасти Case IH 595 (2-60) - OIL PUMP (02) - ENGINE

3136430R95

PUMP, ENGINE OIL

PUMP ASSEMBLY - oil, Includes: Ref. 1 - 23

1шт.

1

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

4шт.

2

3050129R1

LOCK WASHER

WASHER - lock, 5/16 inch

4шт.

3

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16 inch NC

4шт.

3136441R95

HOUSING ASSY.

CARRIER - assembly, oil pump, Includes: Ref. 5 - 13

1шт.

5

932597R1

LOCK PIN,M10 x 14, Slotted

Spring M10 x 14, Slotted

3шт.

6

NSS

NOT SOLD SEPARAT

CASE - oil pump gear

1шт.

7

NSS

NOT SOLD SEPARAT

CARRIER - oil pump gear

1шт.

8

3055297R5

AXLE

SHAFT - idler gear

1шт.

9

NSS

NOT SOLD SEPARAT

COVER ASSEMBLY - oil pump, Includes: Ref. 10 - 13

1шт.

10

32-824

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

11

3139620R1

SPRING WASHER

- spring retaining

1шт.

12

3136264R1

SPRING

- pressure relief valve

1шт.

13

3055202R2

VALVE

- piston relief (Order 3136081R1)

1шт.

14

3136442R91

PINION

GEAR - oil pump drive, Includes: Ref. 16 and 17

1шт.

3132503R91

GEAR-SET

GEAR - set, oil pump, Includes: Ref. 16 and 17

1шт.

16

NSS

NOT SOLD SEPARAT

GEAR - oil pump idler (Order gear set 3132503R91)

1шт.

17

NSS

NOT SOLD SEPARAT

GEAR - oil pump (Order gear set 3132503R91)

1шт.

NSS

NOT SOLD SEPARAT

GEAR ASSEMBLY - oil pump idler (Order component parts), Includes: Ref. 19 - 22

1шт.

19

933579R1

SNAP RING,M35, Int

- retaining, internal, 37.55 mm

1шт.

20

3055291R1

PINION

GEAR - idler

1шт.

21

3055292R1

WASHER

WASHER

1шт.

22

3055294R91

TAPERED BEARING

BEARING - taper roller (Order 476045R91)

2шт.

23

3228141R1

LOCK NUT

- lock

1шт.

24

61-33116

HEX SOC SCREW,5/16"-18 x 1"

SCREW, Hex Soc Hd, 5/16"-18 x 1"

4шт.

25

3050129R1

LOCK WASHER

WASHER - lock, 5/16 inch

4шт.

26

3228577R1

O-RING,3.1mm Thk x 24.5mm ID, Cl 7

- oil pump sealing

1шт.

Part of crankcase gaskets service kit

1шт.

27

1806778C1

PIPE ASSY.

PIPE - oil, pressure

1шт.

28

61-34460

HEX SOC SCREW,7/16"-14 x 3 3/4"

SCREW - cap, hex socket, 7/16 NC x 3-3/4 inch

1шт.

29

3218543R1

LOCK WASHER

- lock, 7/16 inch

1шт.

30

717222R1

O-RING

- 11.3 x 16.1 mm

1шт.

Part of crankcase gaskets service kit

1шт.

REF

INSTRUCTION

KIT - service, crankcase gaskets, Includes: Ref. 26 and 30 (See Figure 2-66)

1шт.
