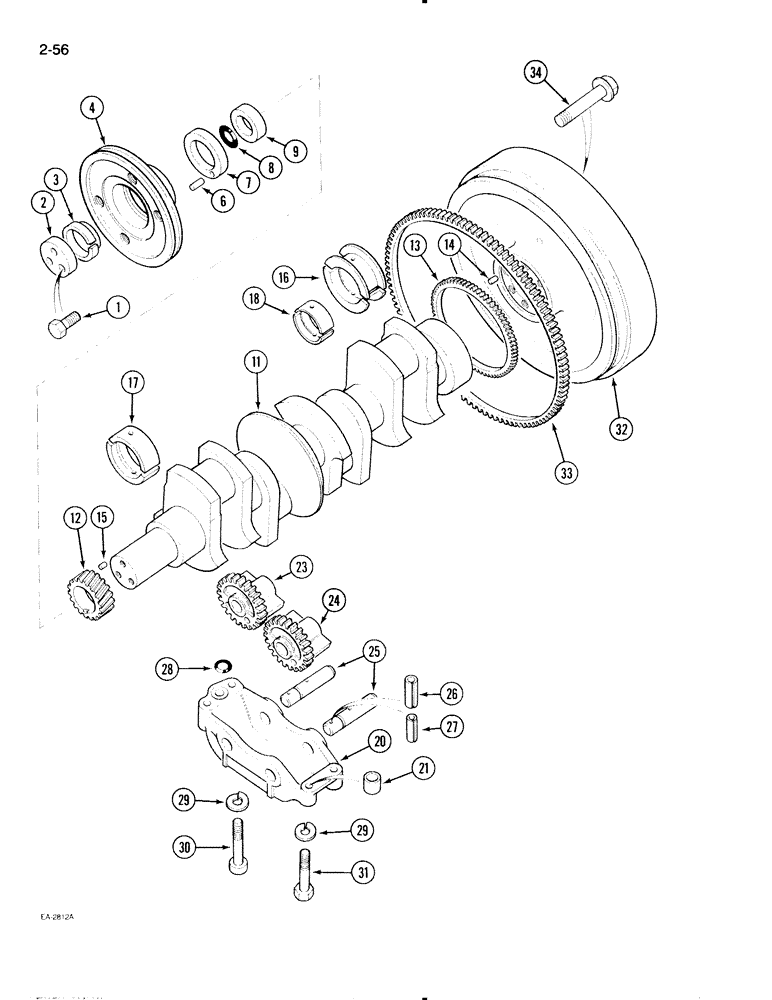

Запчасти Case IH 595 (2-56) - CRANKSHAFT (02) - ENGINE

1

26-722

BOLT,Hex, 7/16" - 14 x 1-3/8", Gr 8

- hex, 7/16 NC x 1-3/8 inch, grade 8

3шт.

2

3055154R1

WASHER

- pressure

1шт.

3

3138874R1

BEARING WASHER

RING - clamping

1шт.

4

3138838R3

PULLEY

- crankshaft

1шт.

3228133R93

SEAL KIT

KIT - service, crankshaft oil seal, Includes: Ref. 6 - 9

1шт.

6

932681R1

DOWEL,4mm OD x 24mm L

Pin M4 x 24, Oval

1шт.

6

932652R1

DOWEL,4mm OD x 28mm L

PIN - dowel, 4 x 28 mm

1шт.

6

932224R1

DOWEL,M4 x 32, Oval

PIN - dowel, 4 x 32 mm

1шт.

7

NSS

NOT SOLD SEPARAT

RETAINER - distance

1шт.

8

713778R1

O-RING,3mm Thk x 55mm ID

- 55 x 61 mm

1шт.

Part of crankcase gaskets service kit

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - radial lip, crankshaft front

1шт.

1329196C1

CRANKSHAFT

- standard, complete, Includes: Ref. 11 - 18

1шт.

11

NSS

NOT SOLD SEPARAT

CRANKSHAFT - standard, Includes: Ref. 12 - 15

1шт.

12

3055028R1

PINION

GEAR - pinion, crankshaft, 33 teeth

1шт.

13

3136237R1

PINION

GEAR - balancer drive, 80 teeth

1шт.

14

NLS

NO LONGER SERVICED

PIN - dowel, 3/8 x 7/8 inch

1шт.

15

932169R1

LOCK PIN,M4 x 10, Slotted

Spring M4 x 10, Slotted

1шт.

16

3055129R21

CRANKSHAFT BEARING

BEARING - main, standard size

1шт.

17

3055130R21

CRANKSHAFT BEARING

BEARING - main, standard size

4шт.

18

3055351R91

BEARING ASSY

BEARING - connecting rod, standard size

4шт.

3228366R91

BALANCER

- complete assembly (Order 3132895R93), crankshaft, Includes: Ref. 20 - 27 and weight

1шт.

20

NSS

NOT SOLD SEPARAT

HOUSING - balancer, crankshaft, Includes: Ref. 21

1шт.

21

3055174R1

BUSHING

- dowel, crankshaft balancer

2шт.

3228372R91

BALANCING WEIGHT

WEIGHT - balance, matched set, crankshaft, Includes: Ref. 23 and 24

1шт.

23

NSS

NOT SOLD SEPARAT

WEIGHT - idler, crankshaft balancer

1шт.

24

NSS

NOT SOLD SEPARAT

WEIGHT - drive, crankshaft balancer

1шт.

25

3132878R11

PIN,23mm OD x 93mm L

SHAFT - balancer weight, crankshaft

2шт.

26

932229R1

SPLIT PIN/SAFETY PIN

PIN - slotted spring, 4 x 20 mm, crankshaft balancer

2шт.

27

932299R1

LOCK PIN,M2.5 x 20, Slotted

Spring, Crankshaft balancer M2.5 x 20, Slotted

2шт.

28

238-6118

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

Crankshaft balancer -118, 90 Duro, .862" ID x .103" Thk

1шт.

Part of crankcase gaskets service kit

1шт.

29

3218543R1

LOCK WASHER

- lock, 7/16 inch, crankshaft balancer

3шт.

30

61-34460

HEX SOC SCREW,7/16"-14 x 3 3/4"

SCREW - cap, hex socket, 7/16 NC x 3-3/4 inch, crankshaft balancer

1шт.

31

13-732

BOLT,Hex, 7/16" - 14 x 2", Gr 5

Crankshaft balancer Hex, 7/16"-14 x 2", G5

1шт.

31

13-736

BOLT,Hex, 7/16" - 14 x 2-1/4", Gr 5

Crankshaft balancer Hex, 7/16"-14 x 2 1/4", G5

1шт.

31

13-744

BOLT,Hex, 7/16" - 14 x 2-3/4", Gr 5

Crankshaft balancer Hex, 7/16"-14 x 2 3/4", G5

1шт.

32

1808412C92

FLYWHEEL WITH GEAR

FLYWHEEL - complete with ring gear (12 inch clutch)

1шт.

32

3136044R42

FLYWHEEL WITH GEAR

FLYWHEEL - complete with ring gear (11 inch clutch)

1шт.

33

60883H

RING GEAR

GEAR - ring, flywheel

1шт.

34

3144213R1

BOLT,Hex, 1/2" - 20 x 53mm

- Flywheel mounting (Use with flywheel 1808412C92)

7шт.

34

3218037R1

BOLT,Hex, 1/2" - 20 x 58.5mm

- Flywheel mounting (Use with flywheel 3136044R42)

7шт.

REF

INSTRUCTION

KIT - service, crankcase gaskets, Includes: Ref. 8 and 28 (See Figure 2-66), flywheel

1шт.
