(2-24) - AIR CLEANER, COOPERS, WITH SAFETY ELEMENT, NO. CD2037

Запчасти Case IH 595 (2-24) - AIR CLEANER, COOPERS, WITH SAFETY ELEMENT, NO. CD2037 (02) - ENGINE

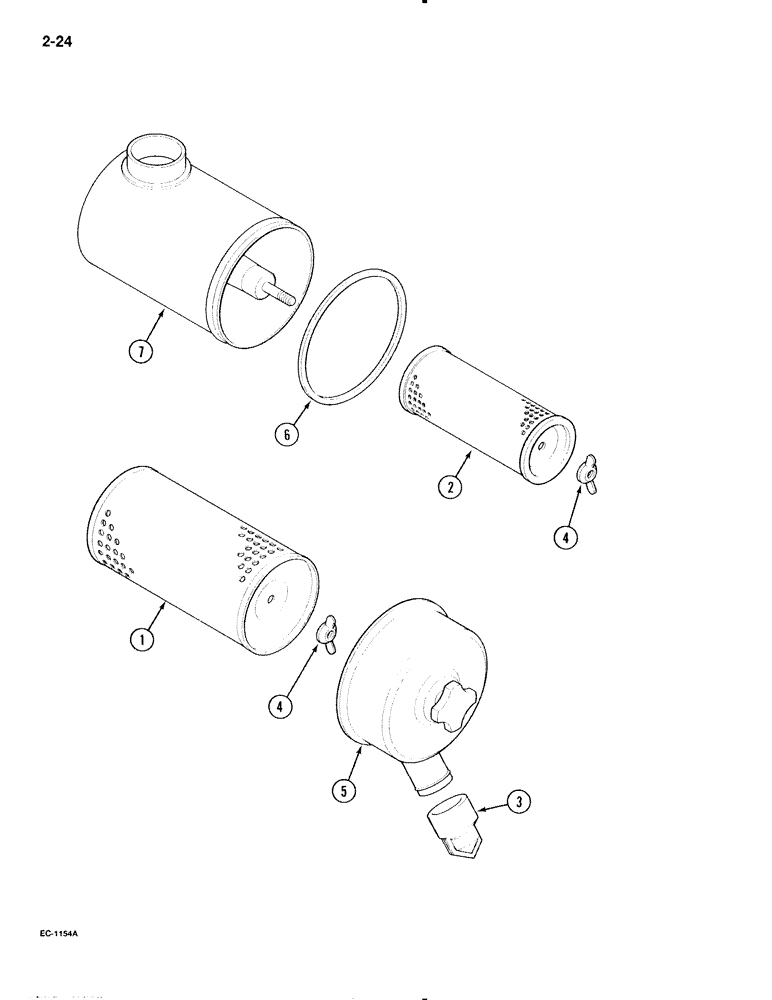

Схема запчастей Case IH 595 - (2-24) - AIR CLEANER, COOPERS, WITH SAFETY ELEMENT, NO. CD2037 (02) - ENGINE
7
4
6
2
5
4
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

84490C91

AIR CLEANER

CLEANER ASSEMBLY - air, 8 inch (Coopers No. CD2037), Includes: Ref. 1 - 7

1шт.

1

3125342R2

AIR FILTER

ELEMENT - primary

1шт.

2

3125255R1

AIR FILTER

ELEMENT - secondary

1шт.

3

3124432R1

DUST VALVE

unloader

1шт.

4

3124435R1

NUT

NUT - wing, complete with gasket

2шт.

5

3125790R1

COVER ASSY

COVER - air cleaner

1шт.

6

1265236C1

GASKET

- O-ring

1шт.

7

NSS

NOT SOLD SEPARAT

BODY - air cleaner

1шт.
