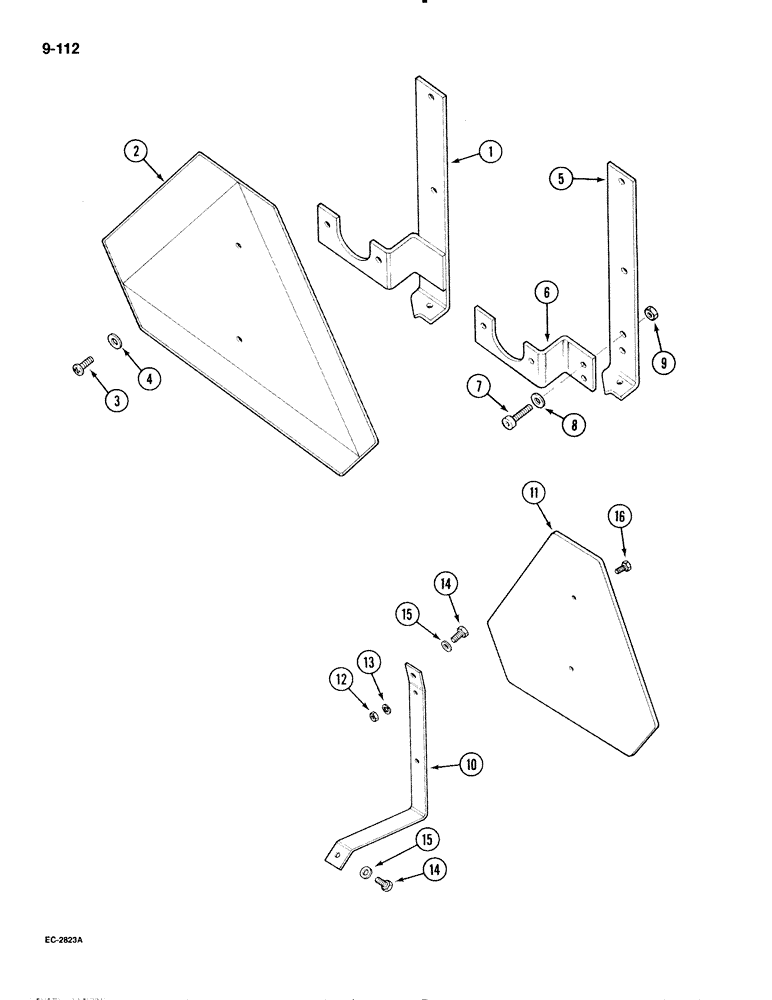

Запчасти Case IH 595 (9-112) - SLOW MOVING VEHICLE EMBLEM (09) - CHASSIS/ATTACHMENTS

2

1265035C1

EMBLEM

DECAL - SMV emblem, tractors without cab

1шт.

3

261-24510

SELF-TAP SCREW,Slotted Pan Hd, #10 x 5/8"

SCREW - tapping, pan cross recess, No. 10 x 5/8 inch, tractors without cab

2шт.

4

495-31022

WASHER,#10

Tractors without cab #10

2шт.

5

1537741C1

SUPPORT

BRACKET - emblem mounting, tractors without cab

1шт.

6

1537742C1

SUPPORT

BRACKET - 7 pin socket mounting, tractors without cab

1шт.

7

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

WASHER - 7 pin socket bracket mounting 6 mm x 20 mm, Tractors without cab

2шт.

8

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

Tractors without Cab M6

2шт.

9

825-1406

NUT,M6, Cl 8

Tractors without cab M6, Cl 8

2шт.

10

98020C1

SUPPORT

- SMV emblem, tractors with cab

1шт.

11

1265035C1

EMBLEM

DECAL - SMV emblem, tractors with cab

1шт.

12

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC, tractors with cab

2шт.

13

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Tractors with cab 1/4"

2шт.

14

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, 8 mm - 1.25 x 16 mm, tractors with cab

2шт.

15

895-1108

WASHER

- plain, 8 mm, tractors with cab

2шт.

16

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch, Tractors with cab

2шт.
