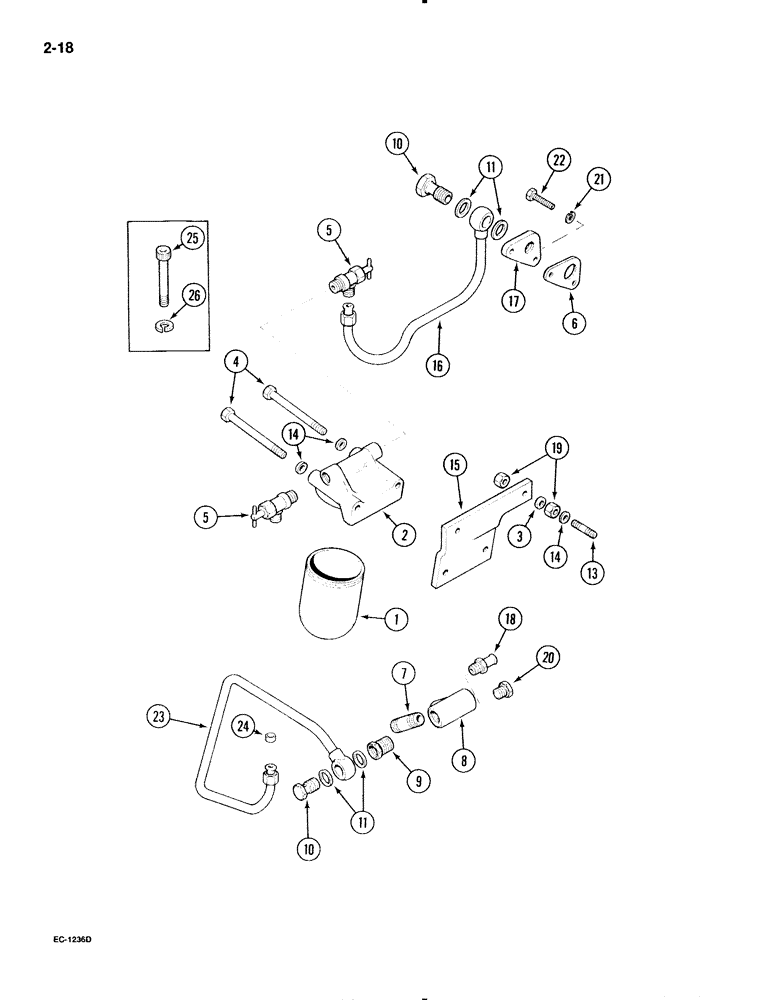

Запчасти Case IH 595 (2-18) - COOLANT FILTER (02) - ENGINE

1

A151931

FILTER

- coolant

1шт.

2

1800029C1

HEAD

- coolant filter (Prior to P.I.N. JJE0027660)(Shown)

1шт.

2

A152821

HEAD

- coolant filter (P.I.N. JJE0027660 and After)

1шт.

3

25534R1

WASHER

- flat 3/32 x 13/16 x 1/16 inch hardened

2шт.

4

13-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

2шт.

5

121894C1

FAUCET,3/8" - 18 NPTF x 5/8" - 24

VALVE - shut off

2шт.

6

3055306R2

GASKET

- manifold, water collecting

1шт.

Part of cylinder head gaskets service kit

1шт.

7

191032

PIPE,Nipple, 1/2" NPT x 1 1/2", Brass

ADAPTER - pipe long, 1/2 NPT x 1-1/2 inch

1шт.

8

144085

TEE,1/2" NPT, Fem

- 1/2 inch pipe

1шт.

9

444034

REDUCER,1/2"-14 NPTF x 3/8"-18 Fem NPTF

BUSHING - pipe reducer, 1/2 to 3/8 inch dryseal taper

1шт.

10

930241R1

BANJO BOLT,M16 x 1.5 x 36mm

SCREW - hollow, 16 mm

2шт.

11

933155R1

SEALING RING,M16 x 20 x 1.5

4шт.

Part of crankcase gaskets service kit

1шт.

13

3228188R1

STUD

- exhaust manifold

2шт.

14

95-81080

WASHER,13/32" x 3/4" x .120"

- flat, 13/32 x 3/4 x 3/32 inch

4шт.

15

1329062C1

SUPPORT

BRACKET - coolant filter (Prior to P.I.N. JJE0027660)

1шт.

15

3228211R1

SUPPORT

BRACKET - coolant filter (P.I.N. JJE0027660and After)

1шт.

16

1329064C91

PIPE

- coolant filter outlet (Prior to P.I.N. JJE0027660)

1шт.

16

3228212R93

PIPE

- coolant filter outlet (P.I.N. JJE0027660 and After) (Order 1806441C91)

1шт.

17

3218396R2

FLANGE

PLATE - cover

1шт.

18

1502001C1

FITTING

- heater hose, brass (With cab)

1шт.

19

25-116

NUT,Hex, 3/8"-24, G5

- hex, 3/8 inch NF

4шт.

20

444630

PLUG,Hex Hd, 1/2"-14

- hex, pipe (Without cab)

1шт.

21

92-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

22

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

2шт.

23

1329008C91

PIPE,350, 286mm L

- coolant filter inlet (Prior to P.I.N. JJE0027660)

1шт.

23

1329009C91

PIPE

- coolant filter inlet (P.I.N. JJE0027660 and After)

1шт.

24

3228191R1

SEALING WASHER

SLEEVE - coupling

1шт.

25

61-33820

HEX SOC SCREW,3/8"-16 x 1 1/4"

BOLT - hex, 3/8 x 1-1/4 inch (P.I.N. and After JJE0027660)

4шт.

26

3050221R1

LOCK WASHER

- lock (P.I.N. JJE0027660 and After)

4шт.

REF

INSTRUCTION

KIT - service, cylinder head gaskets, Includes: Ref. 6 (See Figure 2-64)

1шт.

REF

INSTRUCTION

KIT - service, crankcase gaskets, Includes: Ref. 11 (See Figure 2-66)

1шт.
