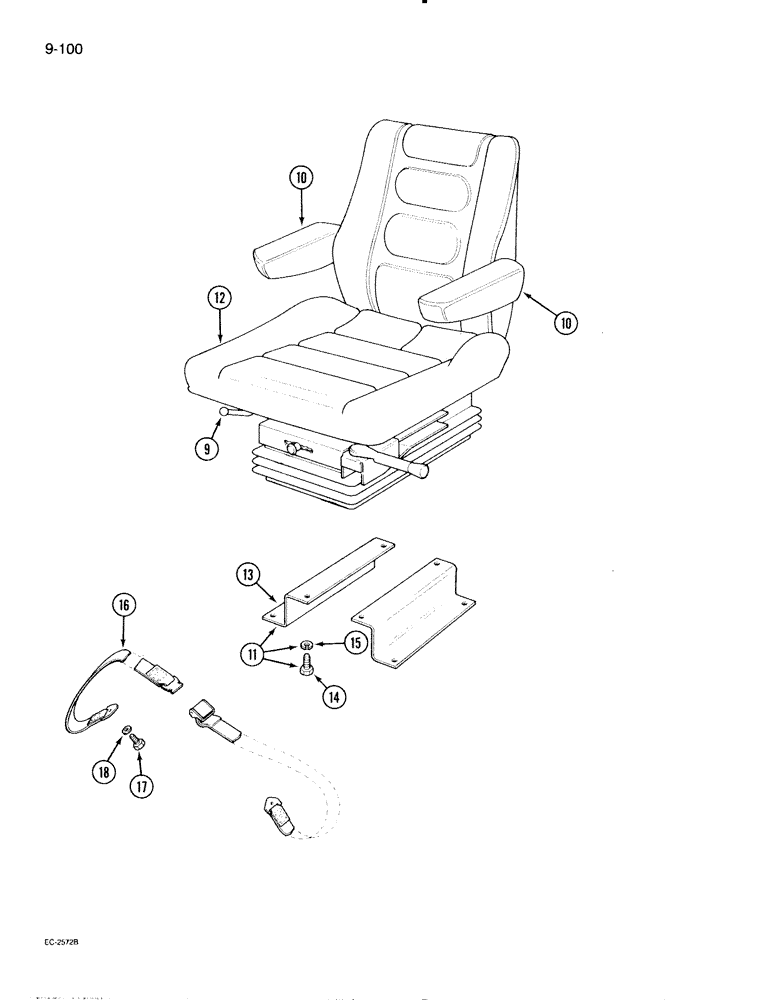

Запчасти Case IH 595 (9-100) - SUSPENSION SEAT, TRACTOR WITH CAB (09) - CHASSIS/ATTACHMENTS

97288C1

SEAT ASSY.

SEAT ASSEMBLY - deluxe (Continued from Figure 9-96), Includes: Ref. 9 - 12 and Ref. 1 - 8 on Figure 9-96

1шт.

9

1977765C1

KIT

- slide rails, includes rails, screws, and washers

1шт.

NSS

NOT SOLD SEPARAT

RAIL - slide, right

1шт.

NSS

NOT SOLD SEPARAT

RAIL - slide, left

1шт.

NSS

NOT SOLD SEPARAT

SCREW - 6 x 16 mm

4шт.

NSS

NOT SOLD SEPARAT

WASHER - lock, 6 mm

4шт.

NSS

NOT SOLD SEPARAT

WASHER - flat

4шт.

NSS

NOT SOLD SEPARAT

SCREW - 8 x 20 mm

4шт.

934309R1

LOCK WASHER,M8

WASHER - lock, 8 mm

4шт.

NSS

NOT SOLD SEPARAT

WASHER - flat, left rail

2шт.

10

1977766C1

KIT

- arm rests, includes armrests, screws, washers, and spacers

1шт.

NSS

NOT SOLD SEPARAT

ARMREST

1шт.

NSS

NOT SOLD SEPARAT

ARMREST

1шт.

NSS

NOT SOLD SEPARAT

SCREW - 8 x 60 mm

4шт.

NSS

NOT SOLD SEPARAT

WASHER - lock, 8 mm

4шт.

NSS

NOT SOLD SEPARAT

SPACER

4шт.

11

1977767C1

KIT

- mounting brackets, includes brackets, screws, and washers

1шт.

NSS

NOT SOLD SEPARAT

BRACKET - support, seat mounting

2шт.

NSS

NOT SOLD SEPARAT

SCREW - 8 x 20 mm

4шт.

934309R1

LOCK WASHER,M8

WASHER - lock, 8 mm

4шт.

12

1977768C1

KIT

- trim service package, includes covers, clips, and rod

1шт.

NSS

NOT SOLD SEPARAT

COVER - back

1шт.

NSS

NOT SOLD SEPARAT

COVER - seat

1шт.

NSS

NOT SOLD SEPARAT

CLIP

15шт.

NSS

NOT SOLD SEPARAT

ROD - pouch

1шт.

13

NSS

NOT SOLD SEPARAT

BRACKET - support, seat mounting (Order 1977767C1)

2шт.

14

613-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 20 mm

4шт.

15

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

16

537339R1

SAFETY BELT

SAFETY BELT, 2"

1шт.

17

86509452

BOLT,Hex, 7/16" - 20 x 1", Gr 5, Full Thd

- hex, 7/16 NC x 1 inch

2шт.

18

495-21050

WASHER,7/16"

- flat, 1/2 x 1-1/4 x 5/64 inch

2шт.
